Installation Instructions. Read Me!
1. DISCONNECT NEGATIVE (-) BATTERY CABLE.
2. Remove throttle body intake cover and save bolts.
3. Remove air intake assembly.
4. Remove (4) bolts from the throttle body.
5. Remove bolts from the throttle linkage bracket and save.
6. Install power plate with (2) gaskets, (4) 6mm x 60mm bolts, and (4) lock washers. (Ref. “D”)
7. Install (2) linkage plates and (2) 6mm x 12mm flat head screws before installing the throttle linkage bracket
using saved bolts. (Ref. “C”)
8. Locate and install (1) linkage bracket and (1) 6mm x 12mm flat head screw to reposition the throttle body cover
using saved bolts.
9. Inspect & Test throttle linkage for full open & closed travel before driving. Some cruise or kickdown cables
may require adjustment. Please refer to your vehicles service manual for proper adjusting.
10. Reinstall the throttle body air intake assembly using Step 3 as an example.
11. Reconnect battery cable. Enjoy!
The sound of power...The “whistle” means its working!
Rev. 06/06/12

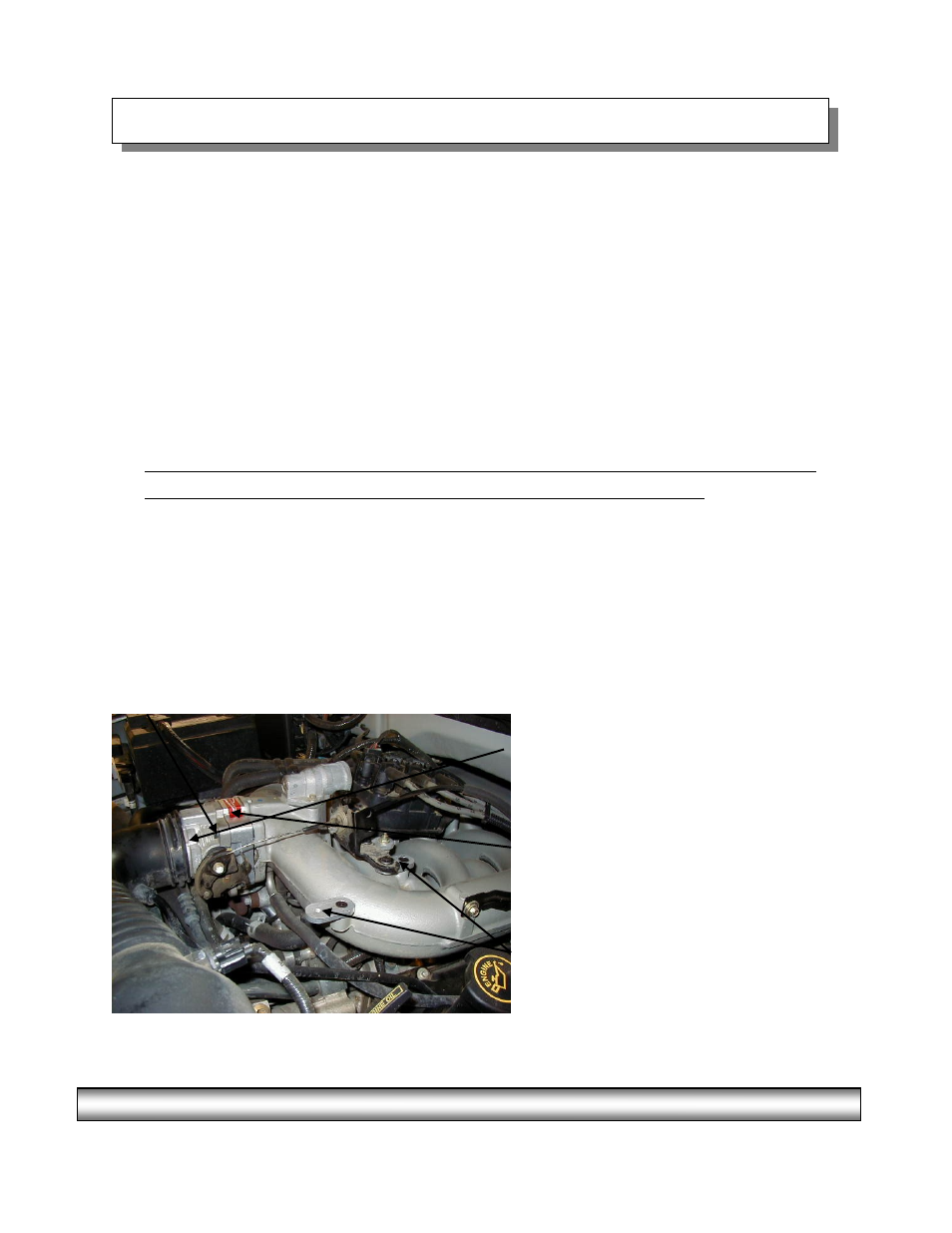

Ref. “A”- (1) Power Plate
(2) Gaskets
Ref. “B”- Throttle Body
Ref. “C”- (3) 6mm x 12mm Flat Head Screws
(3) Linkage Plates
Ref. “D”- (4) 6mm x 60mm Bolts
(4) Lock Washers
