Installation Instructions. Read Me!
1. DISCONNECT NEGATIVE (-) BATTERY CABLE.
2. Remove air cleaner assembly.
3. Remove (2) 8mm bolts from throttle linkage bracket and save. (Ref. D)
4. Remove (4) bolts from the throttle body. (Ref. C)
5. Install the power plate using both gaskets. (Ref. A)
A. Place one gasket between the throttle body and power plate.
B. Place second gasket between the power plate and intake manifold.
6. Install (4) 5/16-18” x 2 1/4” bolts and (4) 5/16” washers. (Ref. C)
7. Install (2) throttle linkage plates using (2) 8mm x 16 flat head screws. (Ref. D)
8. Install throttle linkage bracket using (2) saved 8mm bolts.
9. Inspect & Test throttle linkage for full Open & Closed travel before driving. Some cruise or kickdown cables
may require adjustment. Please refer to your vehicles service manual for proper adjusting.
10. Reinstall air cleaner assembly using Step 2 as an example.
11. Reconnect battery cable. Enjoy!
The sound of power...The “whistle” means its working!
Rv. 05/04

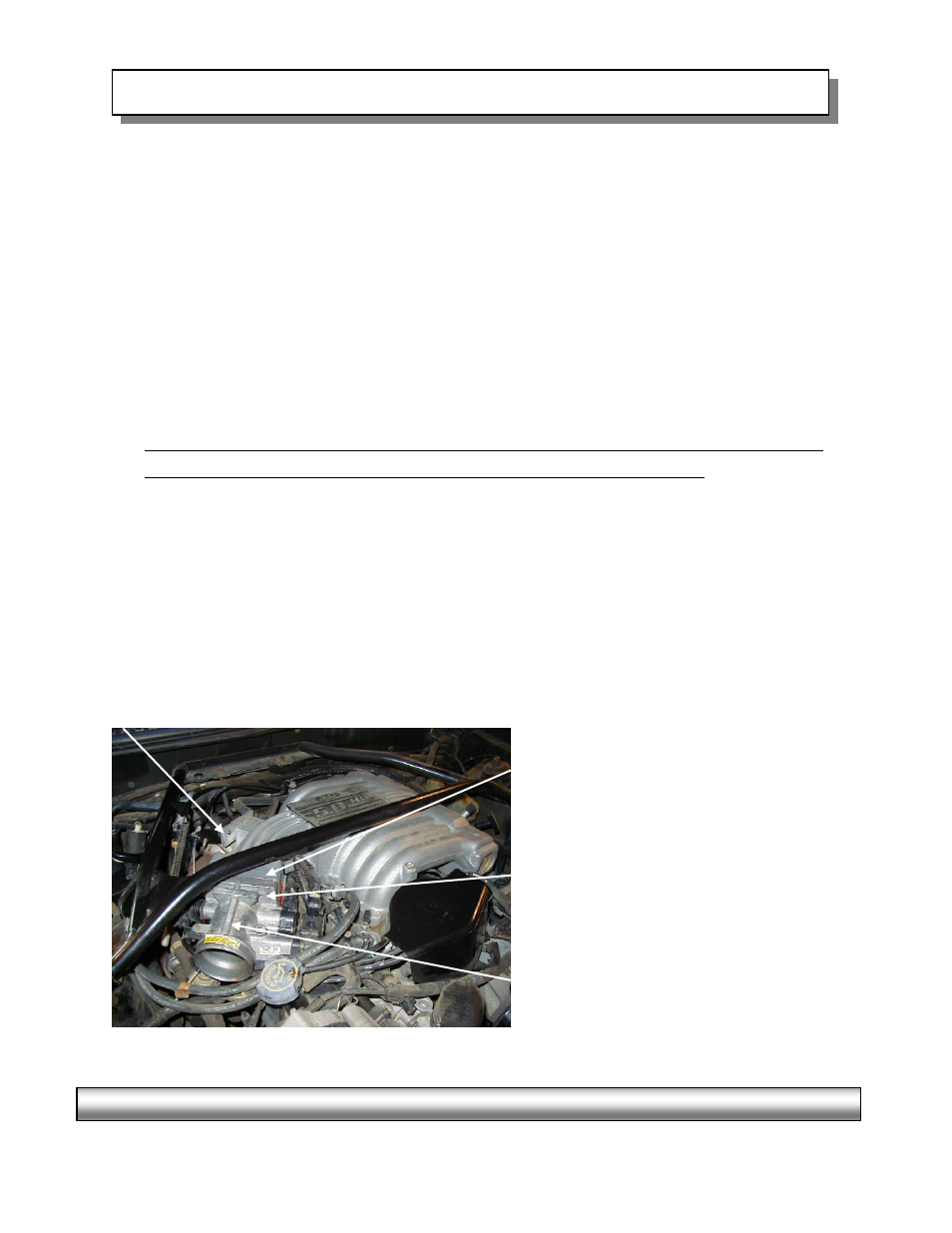

Ref. “D”- (2) Linkage Plates
(2) 8mm x 16 Flat Head Screws
(2) 8mm “Existing Bolts” (Linkage Bracket)
Ref. “A”- (1) Power Plate
(2) Gaskets
Ref. “C”- (4) 5/16-18” x 2 1/2” Bolts
(4) 5/16” Washers
Ref. “B”- Throttle Body
