Installation Instructions. Read Me!
1. DISCONNECT NEGATIVE (-) BATTERY CABLE.
2. Remove throttle body intake hoses.
3. Remove (2) bolts & save from linkage bracket. (Ref. C)
4. Remove (4) bolts from the throttle body. (Ref. D)
5. Remove gasket and clean surfaces.
6. Install power plate using (2) gaskets. (Ref. A)
A. Place one gasket between the throttle body and power plate.
B. Place second gasket between the power plate and manifold.
7. Replace (4) bolts using Step 4 as an example.
8. Locate and install (2) linkage plates using (2) flat head screws. (Ref. C)
9. Reinstall linkage bracket using saved bolts. Refer to Step 3
10. Inspect & Test the throttle linkage for full open & closed travel before driving. Some cruise or kickdown ca-
bles may require adjustment. Please refer to your vehicles service manual for proper adjustment.
11. Reinstall throttle body intake hoses using Step 2 as an example.
12. Reconnect battery cable. Enjoy!
The sound of power...The “whistle” means its working!
Rev. 12/04/06

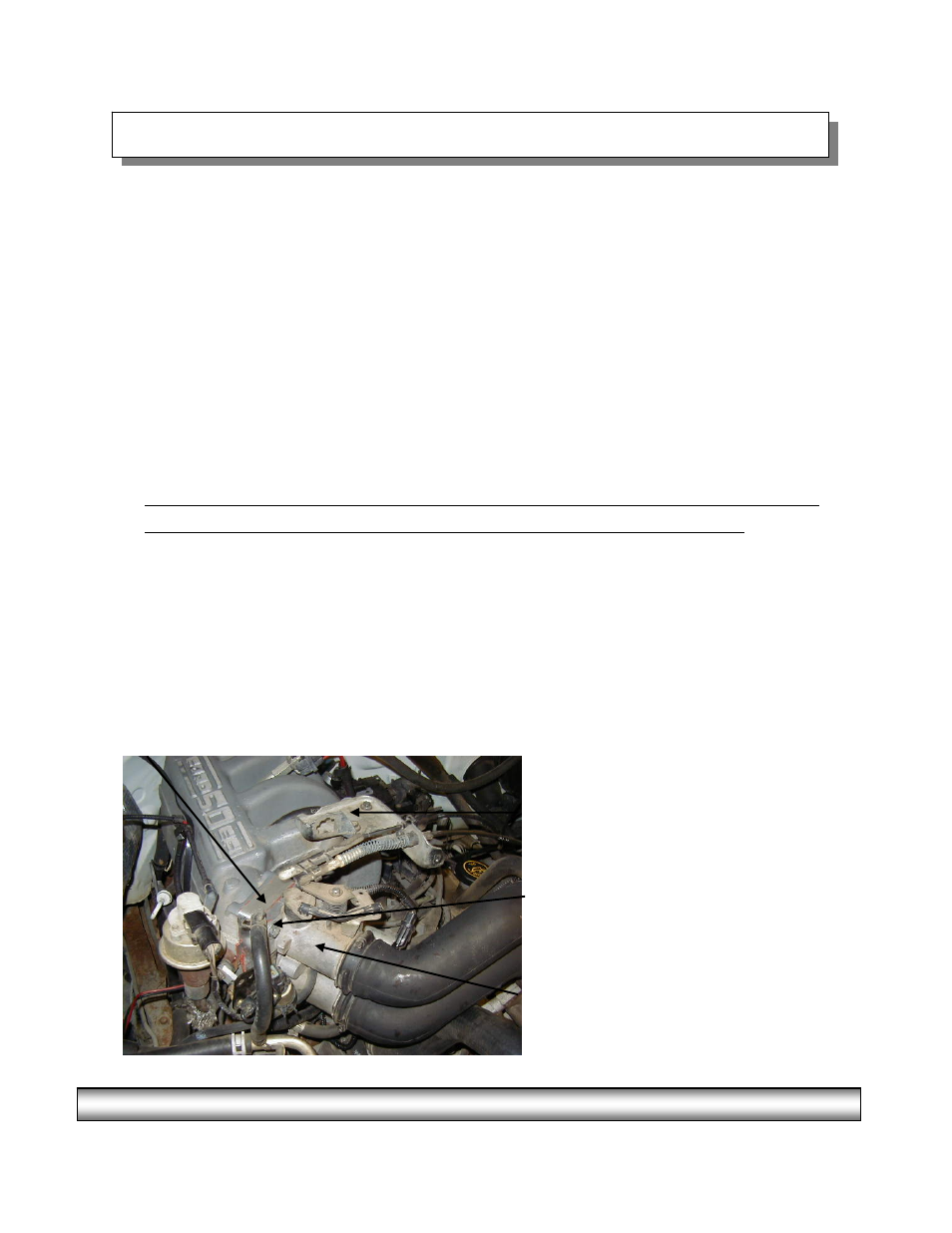

Ref. A- (1) Power Plate
(2)
Gaskets
Ref. C- (2) Linkage Plates
(2) Flat Head Screws
Ref. D- (4) 5/16-18” x 2 1/2” Bolts
(4) 5/16” Washers
Ref. B– Throttle Body
