Installation Instructions. Read Me!
1. DISCONNECT NEGATIVE (-) BATTERY CABLE.
2. Remove throttle body air intake.
3. Remove (3) bolts from the throttle body.
4. Unclip throttle & cruise cables and remove from manifold and throttle lever.
5. Install furnished throttle & cruise cable bracket and tighten bolts. (Ref. “B”)
6. Install both throttle & cruise cables thru reinforcement ring of throttle cable bracket. Slide and lock both plastic
cable retainers into slot separately.
7. Install “O” ring into groove of power plate.
8. Install power plate using (3) 6mm x 50mm bolts and washers. (Ref. “A” & Step 4)
9. Reattach cruise & throttle cables to throttle body lever.
10. Inspect & Test throttle linkage for full Open & Closed travel before driving. Some cruise and kick down cables
may require adjustment. Please refer to your vehicles service manual for proper adjustment.
11. Reinstall throttle body air intake assembly using Step 2 as an example.
12. Reconnect negative battery cable. Enjoy!
The sound of power...The “whistle” means its working!

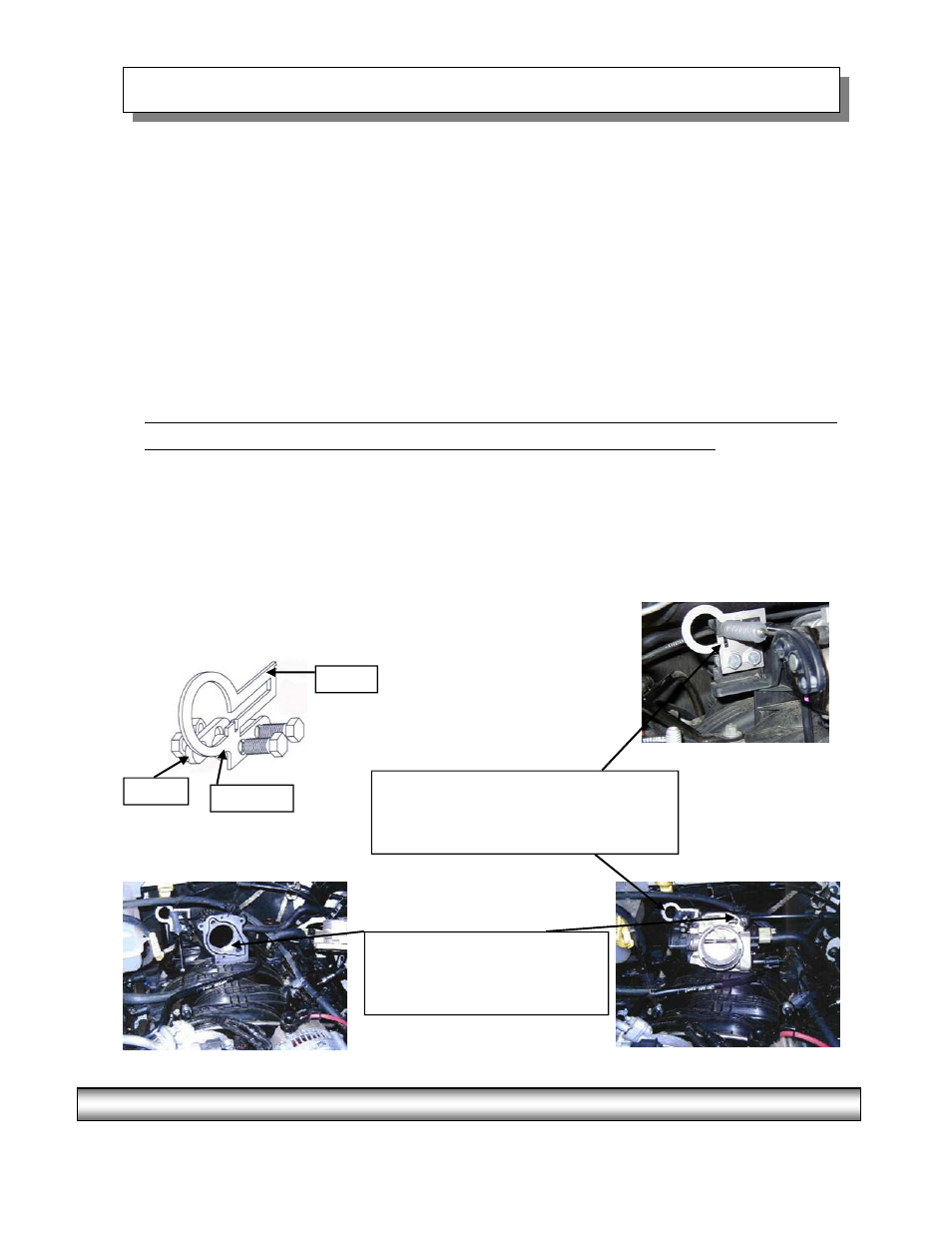

ASSEMBLY DETAIL (Ref. “B”)
Ref. “B”- (1) Throttle Cable Bracket
(2) 3/8 ID x 3/4 OD x .636 Spacers
(1) Nutplate with 3/8-16” threads
(2) 3/8-16”x 1 1/2” Hex Head Bolts
Ref. “A”- (1) Power Plate
(1) O-ring #238
(3) 6mm x 50mm Bolts
(3) 6mm Flat Washers
Bracket
(2) Spacers
Nutplate
