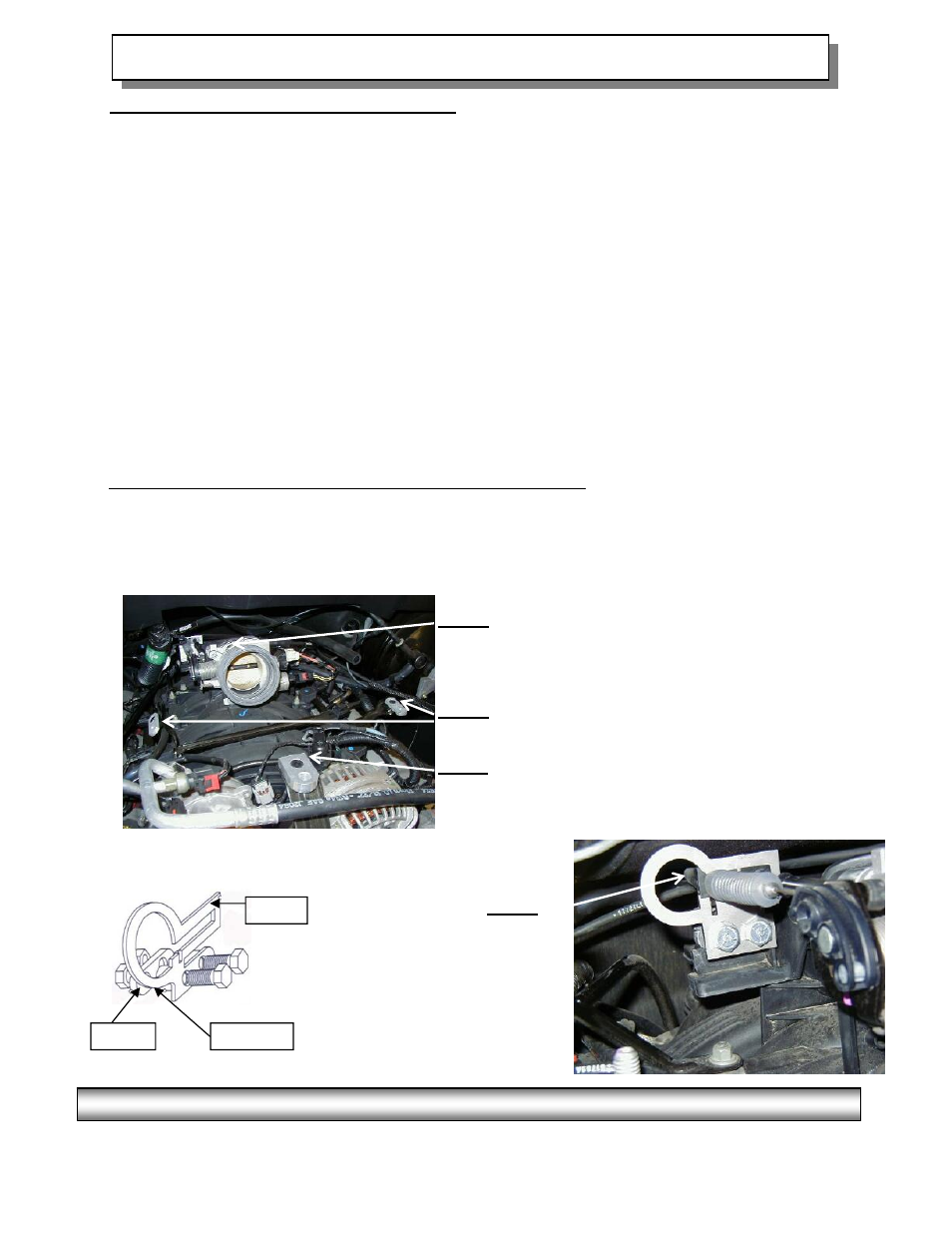

Installation Instructions. Read Me!
1. DISCONNECT NEGATIVE (-) BATTERY CABLE.
2. Remove air intake hose assembly.
3. Remove throttle body air intake box and save bolts.
4. Remove (3) bolts from the throttle body.
5. Unclip throttle & cruise cables from manifold and throttle lever.
6. Install power plate using (3) 6mm x 60mm bolts and flat washers (REF. “A”).
7. Assemble cruise and throttle bracket, putting the (2) 3/4 inch spacers on the back side between the bracket and nutplate.
8. Install throttle & cruise cable bracket and tighten bolts (REF. “C”).
9. Install both throttle & cruise cables thru reinforcement ring of throttle cable bracket.
a. Reattach cables to throttle body lever. * 1st cruise cable then throttle cable.
b. Slide and lock both plastic cable retainers into slot separately.
10. Locate (2) extension plates using (2) flat head screws to reposition throttle body intake box using saved bolts (REF. “D”
step 3).
11. Install air box support plate using flange nut and 5/16” flat head screw (REF. “B”).
12. Inspect & Test throttle linkage for full open and closed travel before driving. Some cruise and kickdown cables may re-
quire adjustment. Refer to your vehicles service manual for instruction.
13. Reinstall throttle body air intake assembly using (step 2) as an example. Reconnect Battery Cable.
The sound of power...The “whistle” means its working!
Ref. A- ( 1) Power Plate
(1) “O” Ring
(3) Bolts 6mmx60mm
(3) Flat Washers 6mm
Ref. B- (1) Air Box Flange Nut
(1) Air Box Support Plate
(1) 5/16 x 1 1/2” Flat Head Screw
Ref. C
(1) Throttle Cable Bracket
(2) Spacers 3/4” Long with 3/8” Hole
(2) Bolts 3/8-16 x 1 1/2”
(1) Nutplate with 3/8” Threads
Ref. D- (2) Extension Plates (1 in.)
(2) Flat Head Screws 6mm x 20mm
Throttle Cable Bracket “Detail”
Nutplate (2) Spacers
Bracket
AIRAID Filter Co. 2688 E Rose Garden Ln. Phoenix AZ 85050 (800) 498-6951 [email protected] www.airaid.com
Rev. 12/04/06
