Installation Instructions. Read Me!
1. DISCONNECT NEGATIVE (-) BATTERY CABLE.
2. Remove air intake hose assembly.
3. Remove throttle body air intake box and save bolts.
4. Remove (3) bolts from the throttle body.
5. Unclip throttle & cruise cables and remove from manifold and throttle lever.
6. Install power plate using (3) 6mm x 50mm bolts and 6mm flat washers. (Ref. “A”)
7. Install throttle & cruise cable bracket and tighten bolts. (Ref. “B”)
8. Install both throttle & cruise cables thru reinforcement ring of throttle cable bracket.
A. Reattach cables to throttle body lever. *First cruise cable then throttle cable
B. Slide and lock both plastic cable retainers into slot separately.
9. Locate (1) long extension plate using (1) flat head screw to reposition throttle body intake box using saved
bolts (Ref. “D” and Step 3)
10. Locate (1) short extension plate with 5/8” thick spacer using (1) flat head screw to reposition throttle body
intake box using saved bolts. (Ref. “C” and Step 3)
11. Install air box support bracket using (1) flat head screw & (1) flange nut. (Ref. “E”)
12. Inspect & Test throttle linkage for full Open & Closed travel before driving. Some cruise and kick down ca-
bles may require adjustment. Please refer to your vehicles service manual for proper adjustment.
13. Reinstall throttle body air intake assembly using (Step 2) as an example.
14. Reconnect battery cable. Enjoy!
The sound of power...The “whistle” means its working!

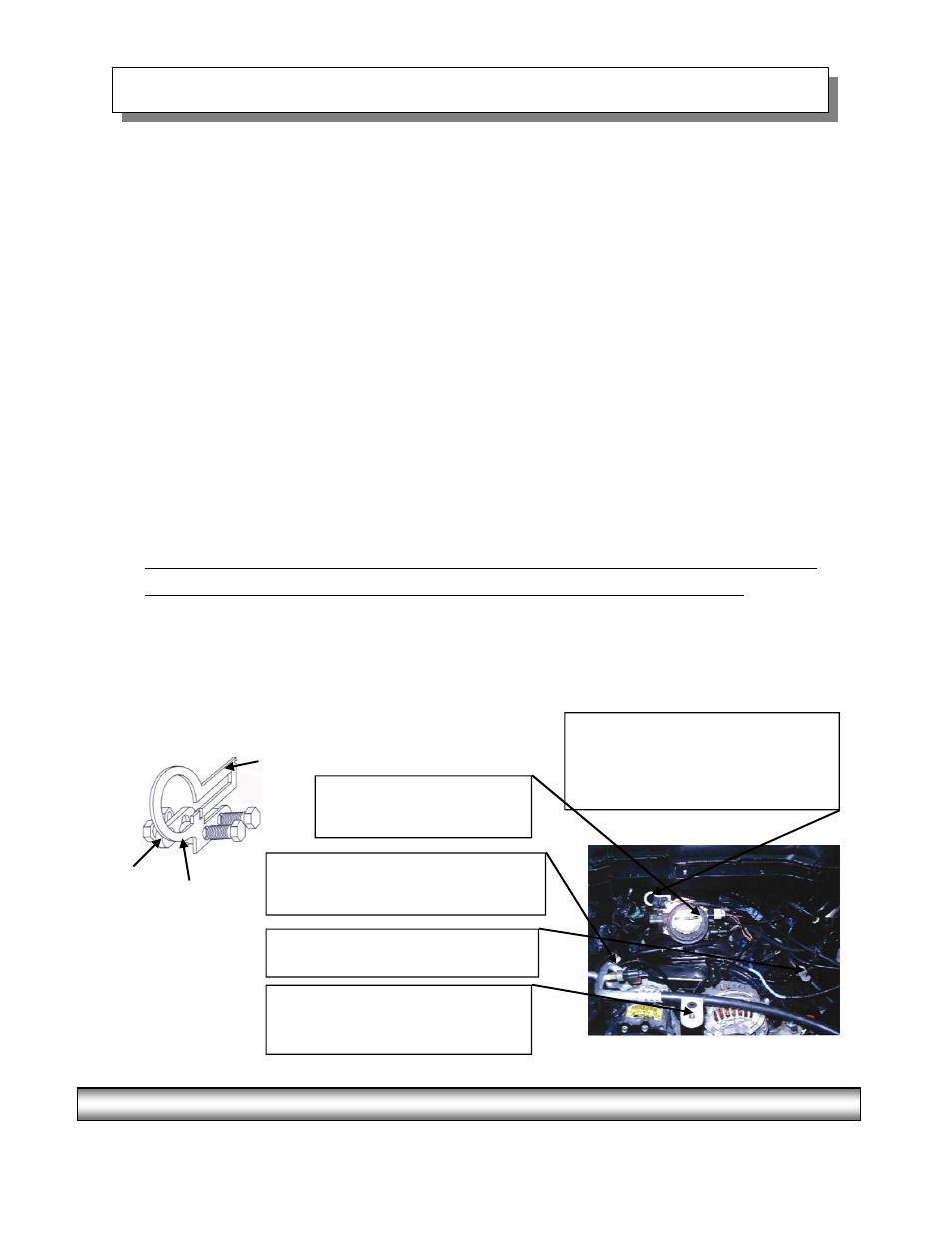

ASSEMBLY DETAIL (Ref. “B”)
Bracket
(2) Spacers
Nutplate
Ref. “A”- (1) Power Plate
(1) “O” ring
(3) 6mm x 50mm Bolts
Ref. “B”- (1) Throttle Cable Bracket
(2) .636 long w/ 3/8” hole spacers
(2) 3/8-16” x 1 1/2” bolts
(1) Nutplate
Ref. “C”- (1) 1/2” Extension Plate
(1) 6mm x 34mm Flat head screw
(1) 5/8” w/ 1/4” hole spacer
Ref. “D”- (1) 1” Extension Plate
(1) 6mm x 20mm Flat head screw
Ref. “E”- (1) Air box flange nut
(1) Air box support plate
(1) 5/16” x 1 1/2” flat head screw
AIRAID Filter Co. 2688 E Rose Garden Ln. Phoenix AZ 85050 (800) 498-6951 [email protected] www.airaid.com
Rev. 01/22/07
