Installation Instructions. Read Me!
Rv. 01/04
1. DISCONNECT NEGATIVE (-) BATTERY CABLE.
2. Remove throttle body air intake system.
3. Remove (3) nuts & studs from the throttle body & manifold. (Ref. “C”)
4. Remove support bracket from engine block to throttle body. (Ref. “D”)
* Please Note: When removing support bracket bolt at engine block, loosen bolt enough to re-
move bracket. DO NOT REMOVE BOLT.
5. Install power plate using (3) 6mm x 55mm bolts and (3) 6mm flat washers. (Ref. “C”)
* Please Note: The engraved side of plate faces the throttle body.
6. Install furnished support bracket using existing bolts. (Ref. “D”)
7. Inspect & Test throttle linkage for full open & closed travel before driving. Some cruise or kickdown cables
may require adjustment. Please refer to your vehicles service manual for proper adjusting.
8. Reinstall air intake system using Step 2 as an example.
9. Reconnect battery cable. Enjoy!
The sound of power...The “whistle” means its working!

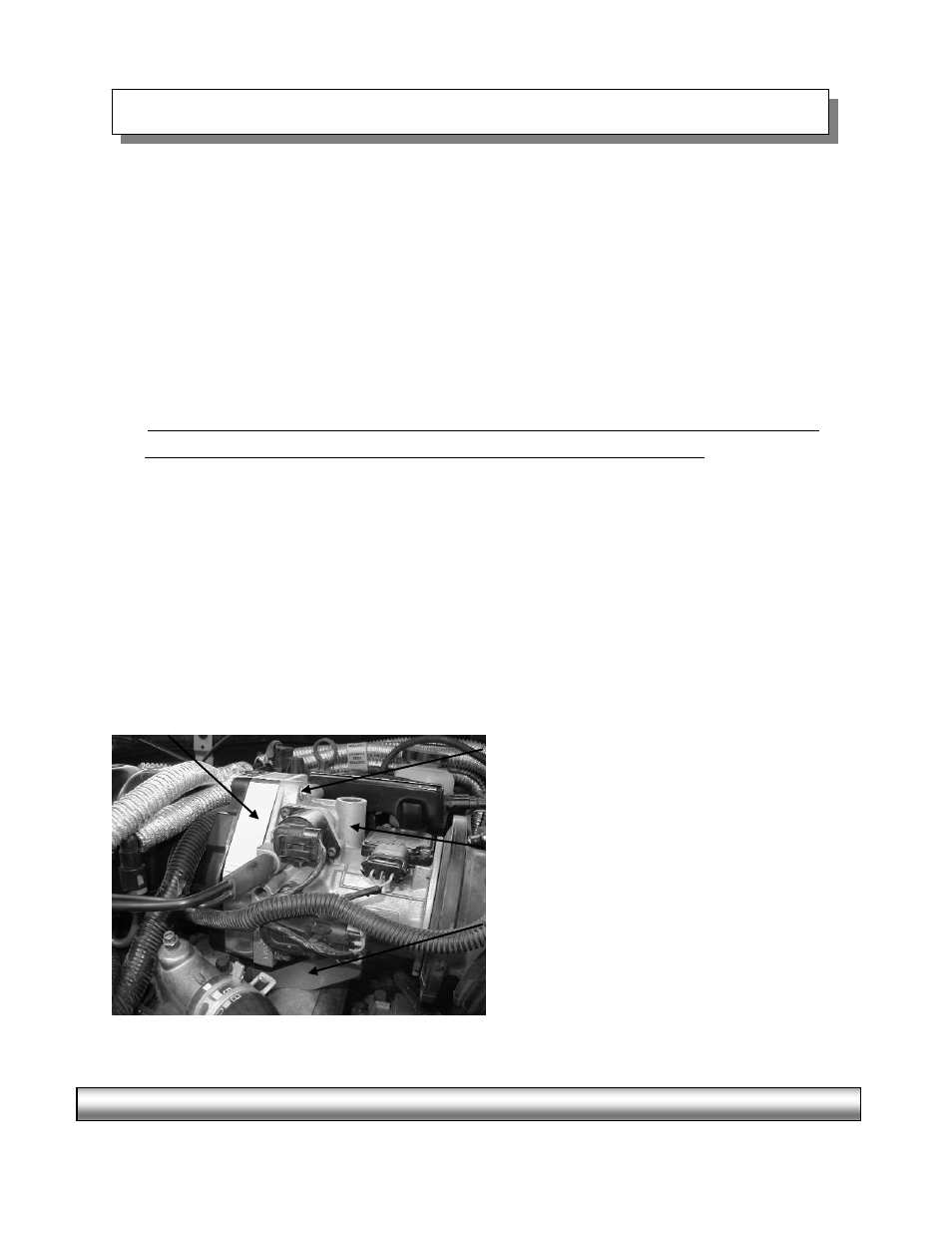

Ref. “B”- Throttle Body
Ref. “A”- (1) Power Plate
(2) “O” Rings
Ref. “C”- (3) 6mm x 55mm Bolts
(3) 6mm Flat Washers
Ref. “D”- (1) Support Bracket
