Page 17
17
Installation

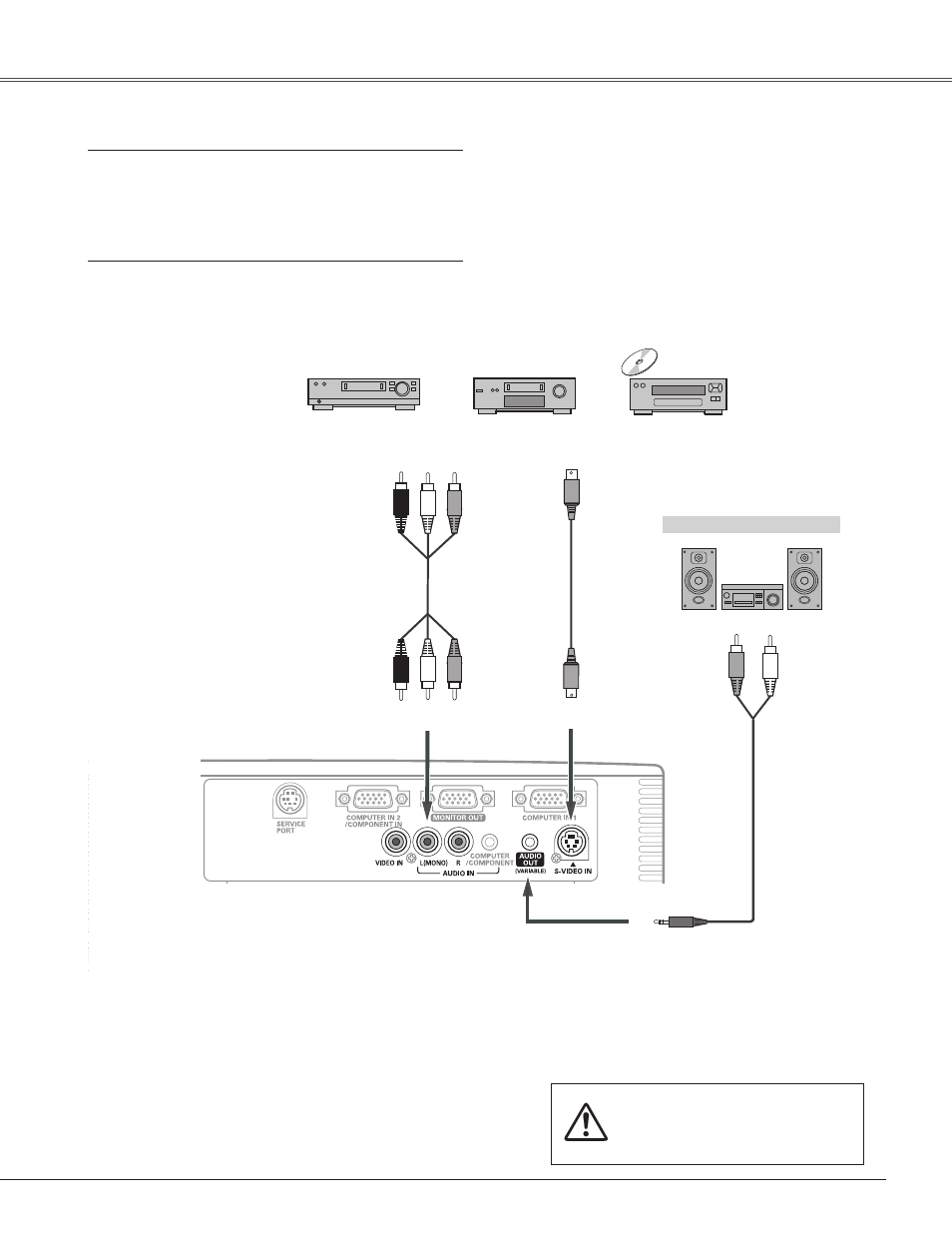

Connecting to Video Equipment
Cables used for connection
• Video and Audio Cable (RCA x 3)
• S-VIDEO Cable
• Audio Cable
(Cables are not supplied with the projector.)
External Audio Equipment
Audio cable
(stereo)
VIDEO
S-VIDEO
S-video cable
Video and
audio cable
Composite Video and Audio Output
S-video Output
AUDIO IN
Audio Input
AUDIO OUT
(stereo)
(R)
(L)
(Video)
Unplug the power cords of
both the projector and external
equipment from the AC outlet
before connecting cables .
Notes:
• When the AUDIO OUT is plugged-in, the projector’s
built-in speaker is not available.
• The S-VIDEO jack connection overrides the VIDEO
jack connection when selecting AUTO in the Input Menu
(p.36).
