10
Part Names and Functions

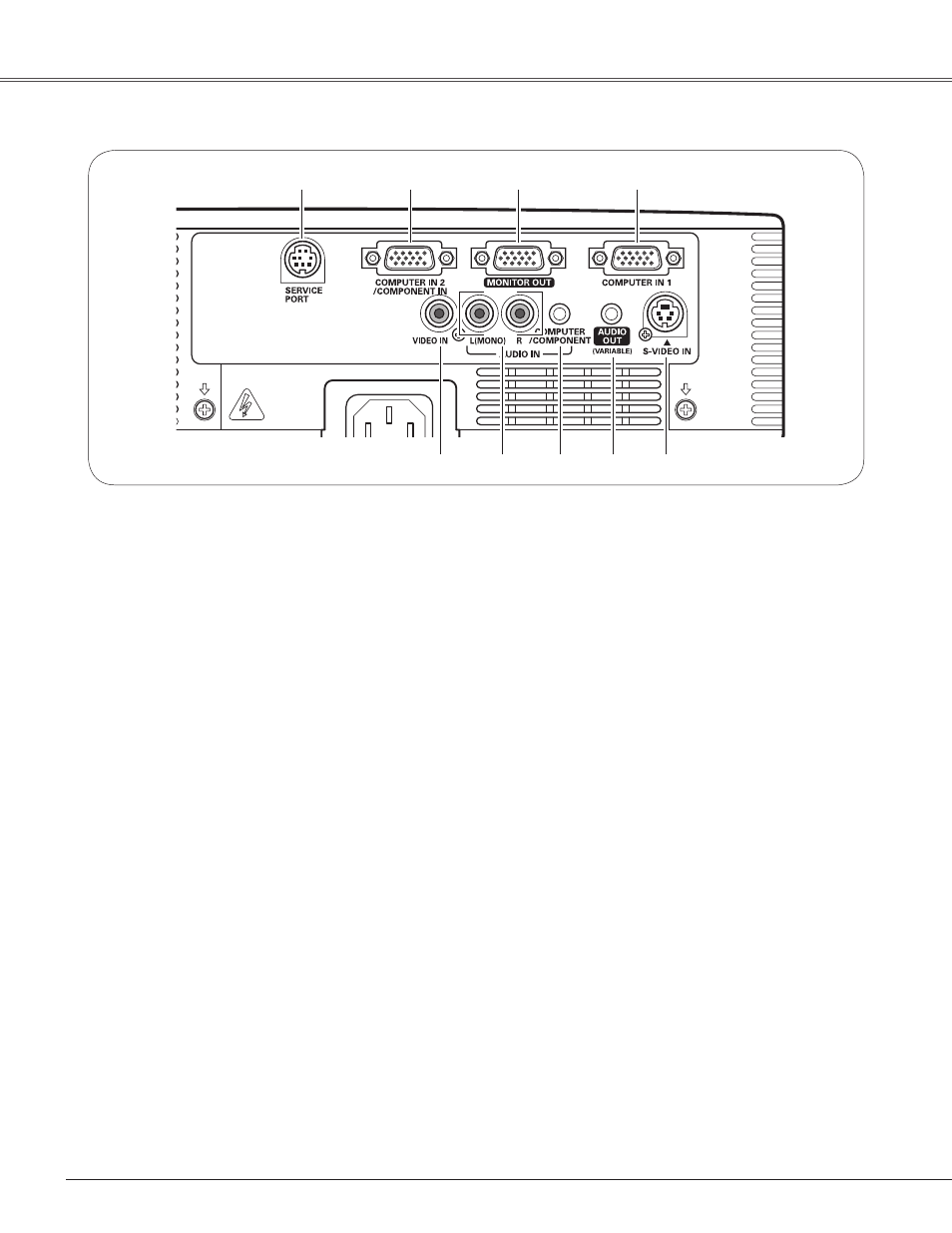

Rear Terminal
① ② ③ ④
⑤ ⑥ ⑦ ⑧ ⑨
⑨ S-VIDEO IN
Connect the S-VIDEO output signal from video
equipment to this jack (p.17).
⑥ AUDIO IN
Connect the audio output signal from video
equipment connected to
⑤ or ⑨ to this jack. For a
mono audio signal (a single audio jack), connect it
to the L (MONO) jack (p.17).
⑦ COMPUTER/COMPONENT AUDIO IN
Connect the audio output (stereo) signal from a
computer or video equipment connected to
② or ④
to this jack (pp.16, 18).
⑤ VIDEO IN
Connect the composite video output signal to this
jack (p.17).
② COMPUTER IN 2/COMPONENT IN
Connect the computer or component video (or
RGB Scart) output signal to this terminal.
Use the supplied VGA cable or a Component-VGA
cable (not supplied).
⑧
AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this jack
(pp.16–18).
This terminal outputs sound from AUDIO IN
terminal (
⑥ or ⑦ ).
① SERVICE PORT
This jack is used to service the projector.
④ COMPUTER IN 1
Connect the computer output to this terminal
(p.16).
③ MONITOR OUT
This terminal can be used to output the incoming
RGB signal from COMPUTER IN 1 terminal or
COMPUTER IN 2/COMPONENT IN terminal to the
other monitor (p.16).
