PoE
ENDSPAN
MIDSPAN
PoE
allow a minimum of 3 seconds between connections (this is the time
it takes the TVR1000 to make a reading).
Step 3. Get them communicating: Study the “DATA” and"LINK"
LEDs. If communicating, a LED will be ON in both columns (“HUB”
and “PC”). If not, switch the cable in the middle jack to the rightmost
jack (rightmost jack is a crossover connection to the GREEN JACK).
For this example we will presume that the straight-thru connection
allowed communication (so we don't need to worry about adding a
crossover cable to our network).
Step 4. SPEED/DUPLEX test: If all is well, a Speed Verification LED
will be ON for each device (one for the switch and one for the PC).
This is the negotiated speed and duplex of the two devices.
Step 5. Am I slower?: Study the Speed Verification LEDs and see if
Using 2 leftmost sockets simulates a
straight thru connection
PC or hub/switch
Wall socket
to switch

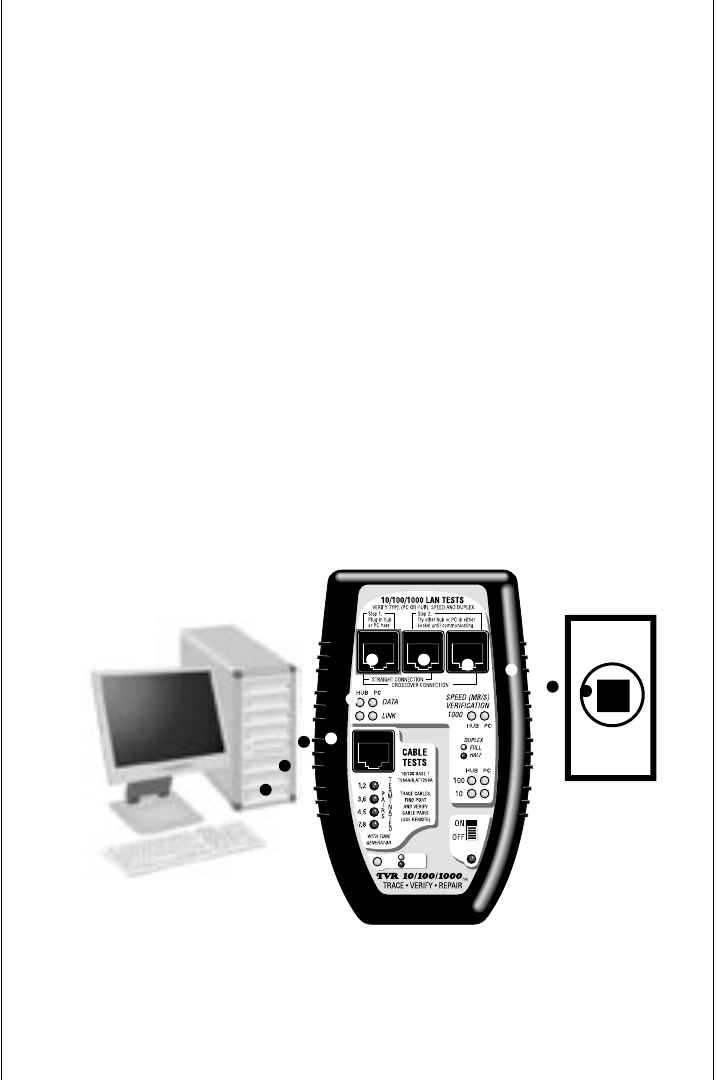

Test example #2
Two devices tested
using the inline mode
25
Straight thru patch cables
(included)
