13
Model 601SBM Low Profile Clamshell
92-0092 Rev. 131230
To reassemble, wipe clean all of the Bearing surfaces and clean the Housing cavity.
Regrease the Gear using a lubricant approved by TRI TOOL Inc. Refer to ‘Lubricant
Recommendations’ located later in this section.
Place the Headstock carefully back into the Housing.
Bolt the Front Thrust Plates back into place.
If the bearing pre-load was properly adjusted before disassembly, then it will still be
adjusted when reassembled.
DRIVE GEAR AND MAIN GEAR LUBRICATION
Remove the Drive Housing.
Inspect both Drive and Main Gears for chips or burrs and clean as required.
Coat the teeth of the Drive Gear and the Main Gear with a grease which is approved
by TRI TOOL Inc. Refer to the Tripper Block Assy. Lubrication and Tripper Shaft
adjustment located later in this section.

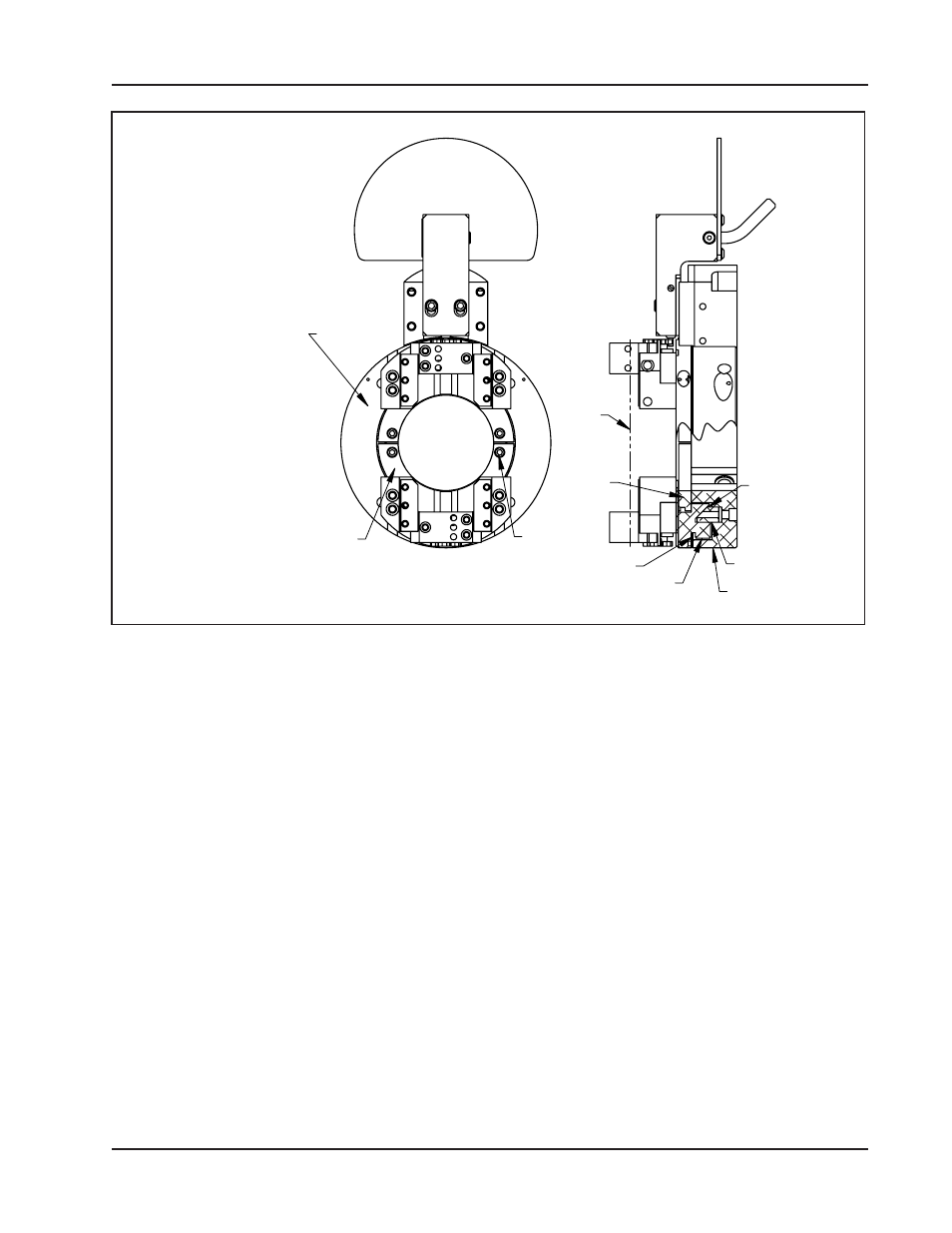

HEADSTOCK
THRUST
PLATE
HOLD-DOWN
SCREWS
MAIN
GEAR
MAIN
BEARING
HOUSING
RACE
HOUSING
CAVITY
THRUST
PLATE
SEVER
LINE
Clamshell Cross Section
