APPENDIX A
A.1. GUI
The graphical user interface (GUI) for the IE X3 was developed for ease of use to create, set,
and recall custom configurations. There are 6 main menus that allow you to configure the
input/output, video processor, audio, user configurations, system settings and system
information. There are sub-menus under the video processor menu for video control and
picture control.
Note- When power has been cycled on a unit it will reset to factory settings unless the “Set
Power On Config” has been set in the User Menu.

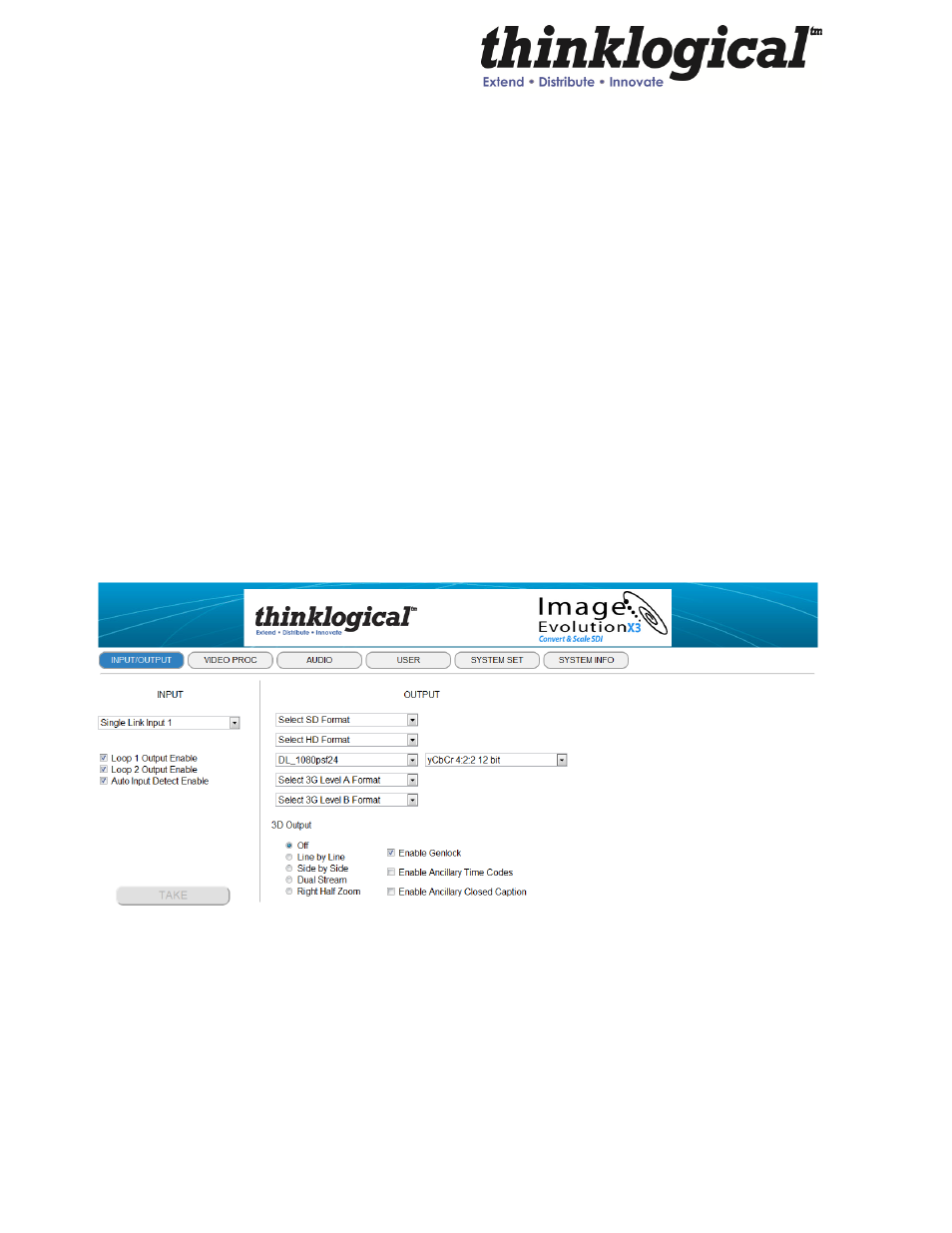

Input/Output Menu
This menu allows you to select the input and the format of the output. There is also an option to
select the 3D output as well as Enable Genlock, Enable Ancillary Time Codes, and Enable
Ancillary closed caption.
By clicking the “Take” button at the bottom of the screen you are able to commit the settings that
you have selected.
