- Output Level: show the output signal after it is processed by the speaker manager module.
(4) Delay
Signal from the input to the output of the processor, the processor time interval, usually used to produce reverb
or echo effects. Also it can be used for the auxiliary speaker with a larger processing.
2.12.3 Limiter

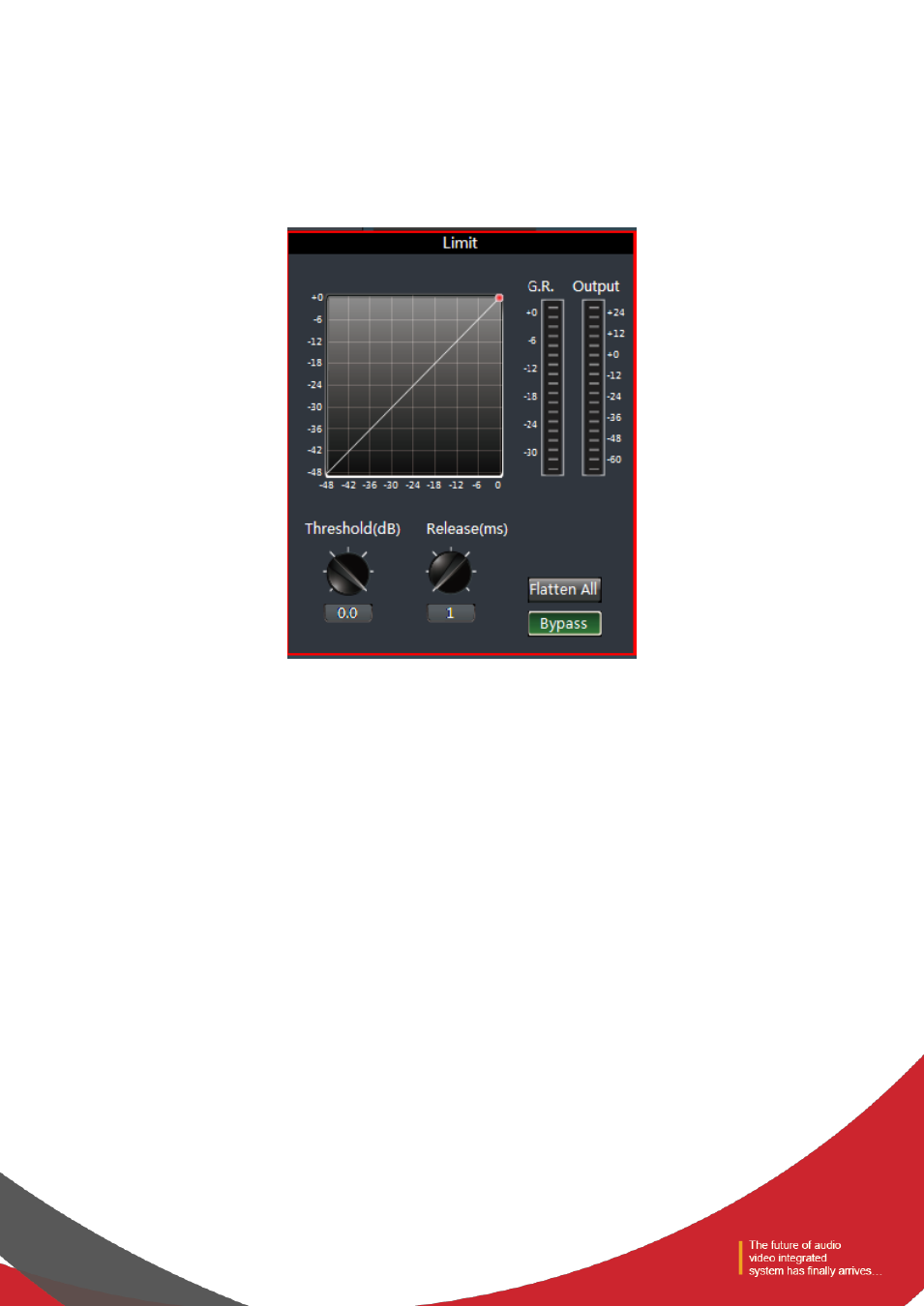

Figure 48
The limiter is to limit the signal more than threshold. When the signal input is more than threshold, the signal output is
equal to threshold. When the signal input is less than threshold, the signal output is equal to the signal input.
- Bypass: The signal input is bypassed and not be processed.
- Threshold: the initial level for limiter; when the signal is above this limit, the limiter processing module will start to
limit excessively large signal.
- Release Time: if the input signal is lower than the threshold, it will not immediately turn off the sound channel but
rather delay the closing time according to the specified value. As long as some signal is larger than “Threshold” during the
delay, the sound channel will continue to open.
- Output Sensitivity: is used to adjust the sensitivity of output level.
- Audio Effect Level: is used to show the processing effect of signal after the limiter.
- Output Level: used to show the output signal after processed by the limiter.
