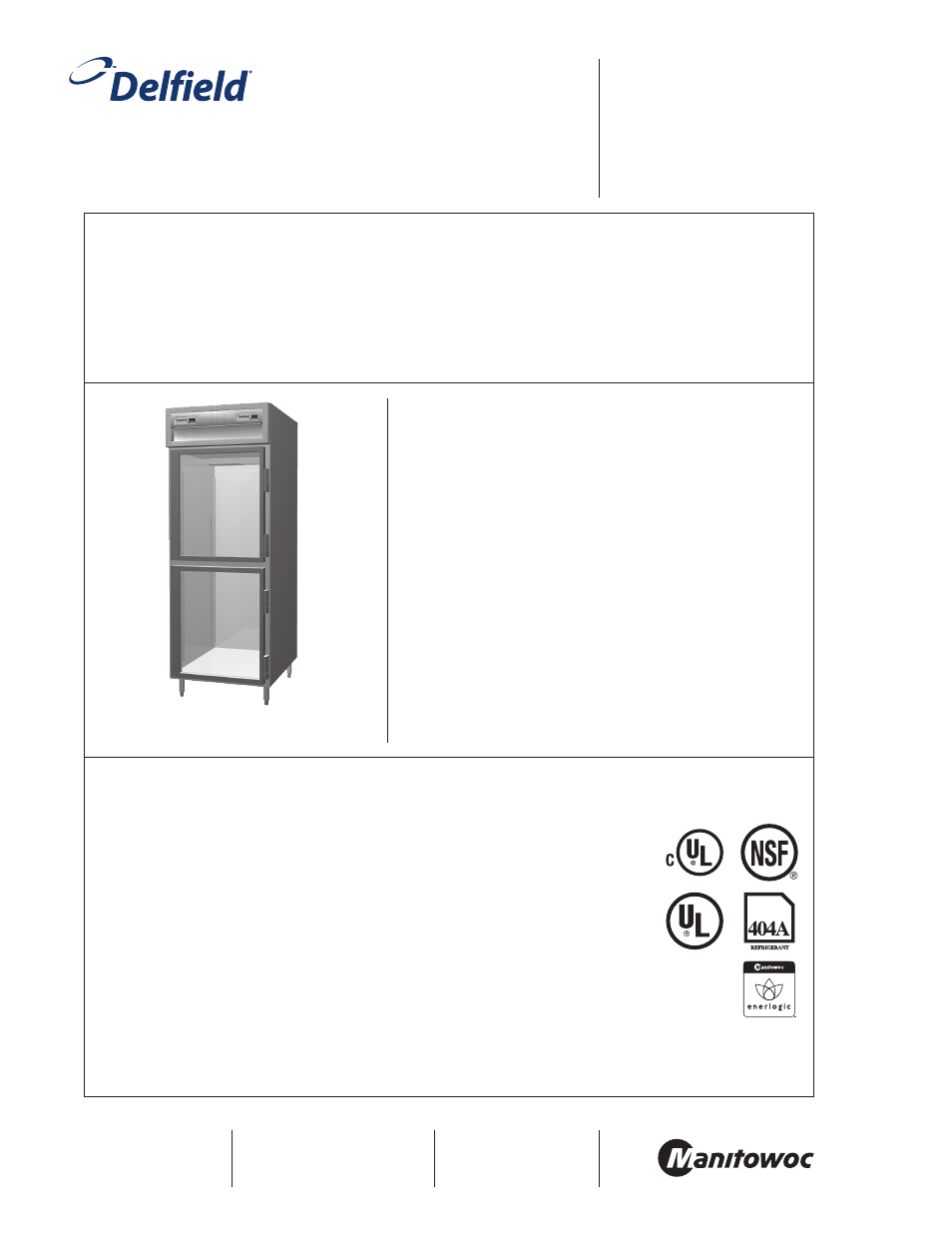

Delfield SMDBR1-GH - Manual

Project __________________________________
Item ____________________________________
Quantity ________________________________
CSI Section 11400
Approved _______________________________
Date ____________________________________
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
www.delfield.com
Exterior: SS and SA models shall have corrosion resistant stainless
steel exterior cabinet sides, front and shroud. SM models shall have
corrosion resistant aluminum on exterior cabinet sides and will have
stainless front and shroud. All units shall have the upper shroud
hinged with a gas assist stay open feature to provide easy access to
the refrigeration system.
Interior: Cabinet interior shall be corrosion resistant stainless steel
(SS models) or heavy gauge aluminum (SA and SM models). Bottom
and top surfaces shall be die stamped to provide radius corners
and recessed floor. Four wire shelves are provided, SA/SS standard
shelves are chrome plated, SM standard shelves are epoxy coated.
Shelves rest on clips which are adjustable on 1” increments on
stainless steel pilasters affixed to the cabinet interior. Pilasters are
removable without tools for cleaning. Mounted to the interior ceiling
of each compartment, the interior incandescent lights are controlled
automatically through a switch mounted in the hinge assembly to
protect against breakage. Door openings are protected with high
impact ABS breaker strips. An evaporator shall be mounted to the
ceiling assuring low velocity, even air movement throughout the
cabinet interior.
Doors: Double paned tempered thermopane glass. Constructed with
a combination of extruded aluminum and PVC. Each door has two
edgemount, self-closing, cam lift style hinges. Doors can be removed
from the cabinet without the use of tools. Door handle is continuous
along vertical dimension of the door. Door gaskets are magnetic and
mount to the door, snapping in place and removable with out tools.
Keyed door lock is mounted to the door. Lock engages into a heavy
duty strike mounted to the cabinet face.
Refrigeration system: Each compartment has its own separate
refrigeration system. Condensing units are located on top of the
cabinet, outside the food zone, behind the upper shroud. Evaporator
coils are located inside the cabinet mounted to the interior ceiling
of each compartment. Defrost is automatic. Condensate travels
down a tube in the cabinet side wall to a receptacle mounted to the
exterior bottom of the cabinet where it is evaporated with the aid of
an electric heater. Each compartment’s temperature is individually
monitored, controlled and displayed on the exterior of the cabinet.
Refrigerator compartment maintains between 33°F and 41°F. Freezer
compartment maintains temperature between 0ºF and -5ºF.
Electrical: Unit comes with one 10’ cord and plug with single point
connection to all cabinet and refrigeration system electronics. It is
attached to a junction box mounted on the exterior top of the cabinet.
Specifications
Standard Features Options &
Accessories
• Stainless steel interior and exterior (SS)
• Stainless steel exterior, aluminum interior (SA)
• Aluminum interior and exterior, stainless
front (SM)
• Door locks with heavy duty strikes
• Two exterior digital thermometers with high/
low temperature alarm
• Easy to use electronic control
• Easy access “flip up” shroud
• Four wire shelves - SA/SS standard with
chrome plated shelves and SM standard with
epoxy coated shelves
• 10’ attached cord and plug
• 6” adjustable stainless steel legs
• Stainless steel breaker strips
• High density foamed in place
environmentally friendly, Kyoto Protocol
Compliant, Non ODP (Ozone Depletion
Potential), Non GWP (Global Warming
Potential) polyurethane keeps energy costs
low
• Three year parts and labor warranty and
an additional two year compressor parts
warranty
SSDTR1-GH Refrigerator top/freezer bottom stainless exterior and interior glass half door
SSDBR1-GH Freezer top/refrigerator bottom stainless exterior and interior glass half door
SADTR1-GH Refrigerator top/freezer bottom stainless exterior and aluminum interior glass half door
SADBR1-GH Freezer top/refrigerator bottom stainless exterior and aluminum interior glass half door
SMDTR1-GH Refrigerator top/freezer bottom stainless front aluminum exterior and interior glass half door
SMDBR1-GH Freezer top/refrigerator bottom stainless front aluminum exterior and interior glass half door
Models
Specification Line®
Glass Door Single Section Dual Temp Refrigerator/
Freezer Reach-Ins
Specification Line®: Glass D
oor Single S
ec
tion Dual
Temp R
efr
igerat
or/F
reez
er R
each-I
ns
• Security (prison) package
• 6” polyurethane casters
• Door field rehingability
• Additional shelves
• Tray slides
• Stainless steel back
• Laminate on front, sides and back
• Bottom mount electrical
• Stainless steel banking strip
• Heat shield end
• Stainless steel kick plate
• Laminate kick plate
• 4” stainless steel utility base
• 230-50-1 electrical*
• 220-60-1 electrical*
* Inclusion of these options will alter the
electrical specifications of unit
SSDBR1-GH
