NOTICE
The information contained in this document is subject to change without notice. Refer to the Naval Flushometer Maintenance and Repair Guide for a complete
listing of Naval Components and Repair Kits.
Item Part Description
No. No.
1 † Valve Assembly
2 B-32-A Handle Assembly
3 H-710-A Bak-Chek
®
Control Stop
4A V-500-AA 1-1/2" (38 mm) x 9" (229 mm) Vacuum Breaker Assembly CP (Model 110)
V-500-AA 1-1/2" (38 mm) x 21" (533 mm) Vacuum Breaker Assembly CP (Model 115)
V-500-AA 1-1/2" (38 mm) x 24" (610 mm) Vacuum Breaker Assembly CP (Model 116)
4B V-500-AA 1-1/4" (32 mm) x 9" (229 mm) Vacuum Breaker Assembly CP (Model 180)
4C V-500-AA 3/4" (19 mm) x 9" (229 mm) Vacuum Breaker Assembly CP (Model 186)
4D V-500-A 1-1/2" (38 mm) Vacuum Breaker Assembly CP
5 F-109 1-1/2" (38 mm) Elbow Flush Connection CP
6A F-5-A 1-1/2" (38 mm) Spud Coupling Assembly (Models 110, 115, 116, 120, 121 and 122)
6B F-5-A 1-1/4" (32 mm) Spud Coupling Assembly (Model 180)
6C F-5-A 3/4" (19 mm) Spud Coupling Assembly (Model 186)
7 F-7 Supply Flange (Supplied When Valve is Not Ordered with Sweat Solder Kit)
8 H-633-AA 1" (25 mm) Sweat Solder Kit with Cast Set Screw Flange (“YBYC” Variation)
H-636-AA 3/4" (19 mm) Sweat Solder Kit with Cast Set Screw Flange (“YBYC” Variation)
† Part number varies with valve model variation; consult factory.

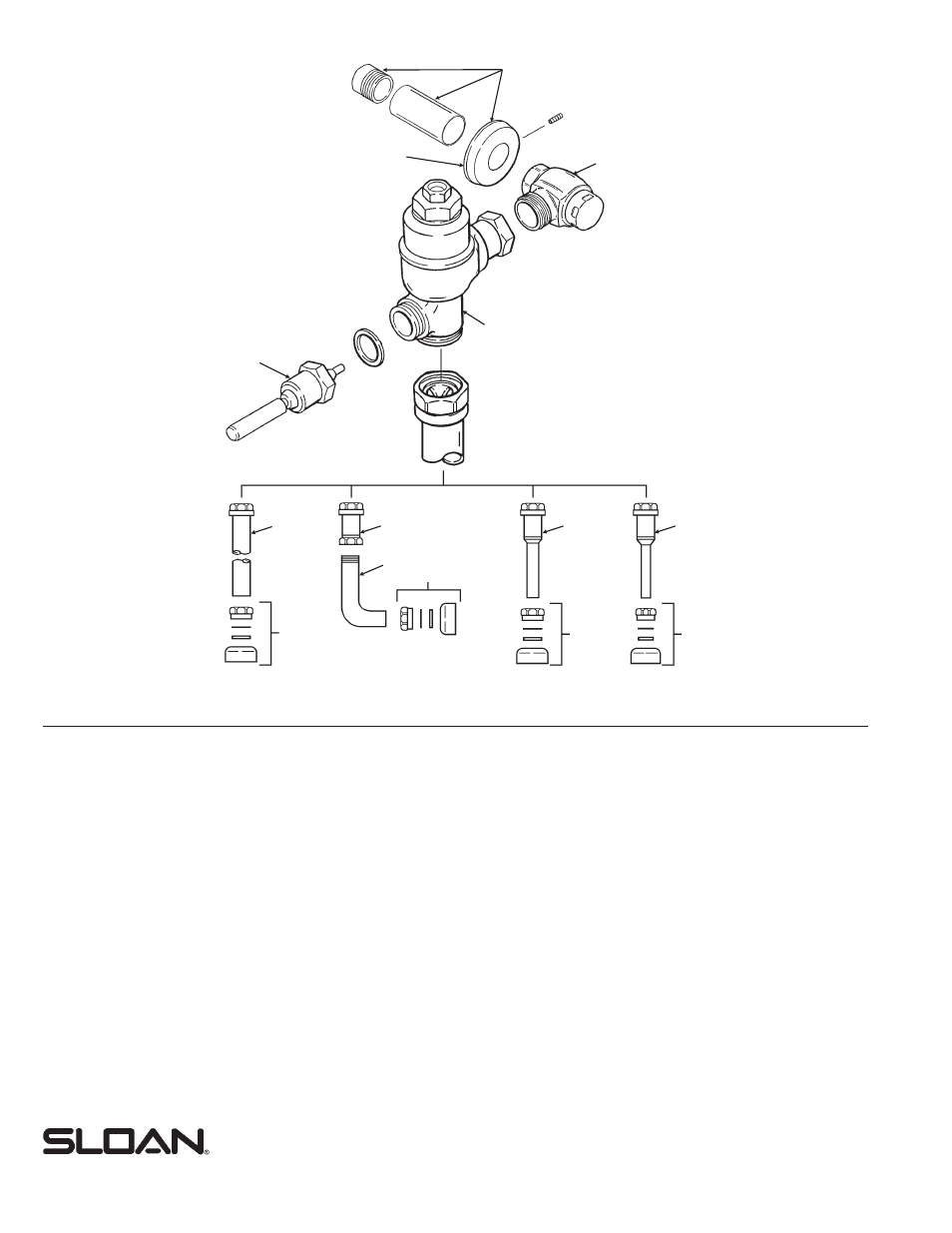

PARTS LIST
7
3
1
2
4A 4D
5
6A
6A
4B 4C
6B 6C
8
