REMKO MVT
24

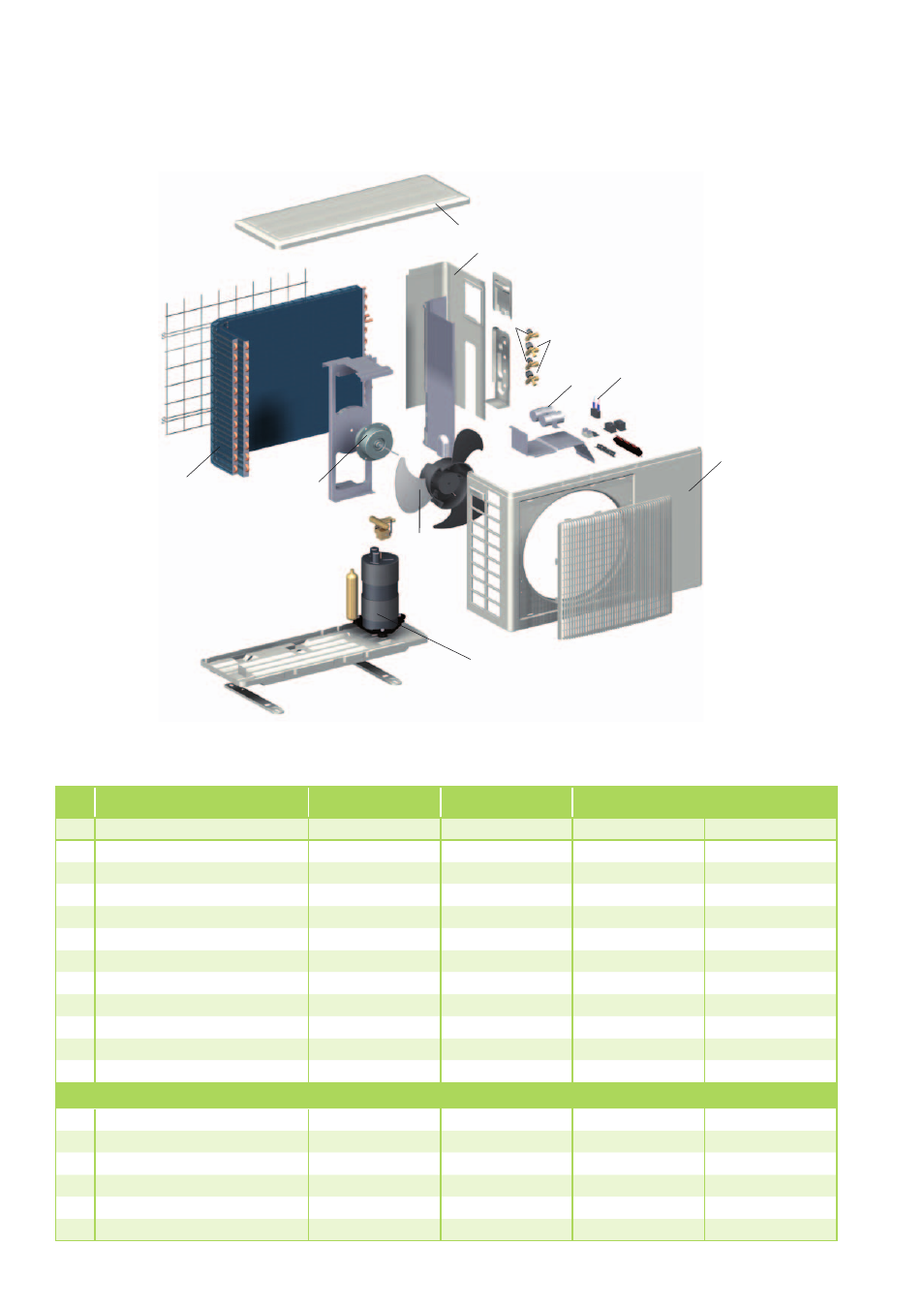

Exploded view MVT 600 DC / MVT 900 DC/ MVT 950 DC / MVT 1050 DC
9
3
1
2
11
6
5
7
4
10
8
No. Designation MVT 600 DC MVT 900 DC MVT 950 DC MVT 1050 DC
from Series 783W6001 784W5000 785W6001 1042W5001
1 Front panel 111024 111024 111046 111074
2 Fan blade, liquefier 111100 111042 111047 111075
3 Fan motor, liquefier 111101 111026 111107 111076
4 Ribbed liquefier 111073 111027 111108 111077
5 Cover panel 111028 111028 111050 111078
6 Side panel, right 111029 111029 111051 111079
7 Compressor, complete 111102 111031 111052 111080
8 Condenser, compressor 111103 111033 111053 -
9 Condenser, liquefier fan 111104 111034 111109 111081
10 Stop valve, suction pipe 111035 111036 111055 111082
11 Stop valve, injection pipe 111037 111038 111056 111083
Spare parts (not illustrated)
Electronic expansion valve 111039 111039 111057 111084
PCB with display 111105 111043 111110 111085
Control PCB condenser 111106 111044 111111 111086
Power board - 111041 - 111087
High pressure transducer - - 111061 111088
Low pressure transducer - - 111062 111099
Spare parts list
When ordering spare parts, please state the computerised part no., unit number and type (see identification plate) !
We reserve the right to modify the dimensions and constructional
design as part of the ongoing technical development process.
