INSTALLATION
Continued
INSTALLING FIREPLACE HOOD
AND SCREEN
1. Loosen screws inside top edge of firebox.
Slide notches in hood over screws and tighten
screws (see Figure 25).
2. Install fireplace screen by slipping notches
of fireplace screen over screws on front of
fireplace (see Figure 26).

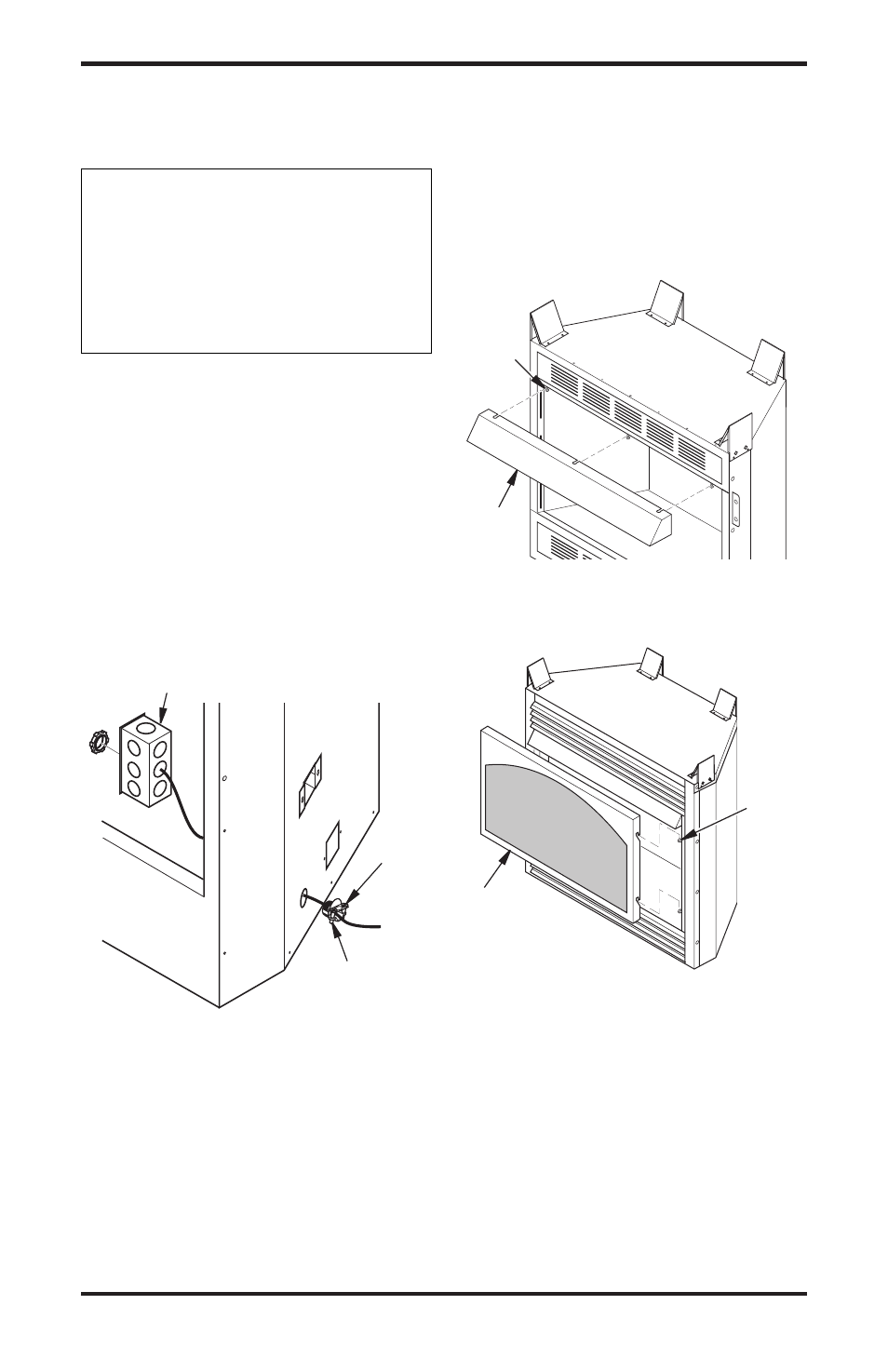

Figure 25 - Hood Placement
(Model May Vary From Illustration)
HARD-WIRING FIREBOX
NOTICE: A qualified electrician
must connect electrical wiring to
duplex outlet for built-in instal-
lation. Follow all local codes.
In absence of local codes fol-
low The National Electric Code
ANSI/NFPA 70.
The “Handy Box” with duplex outlet is provided in
the firebox located in the lower right base area.
1. Remove screw holding duplex outlet cover to
handy box. Remove duplex outlet.
2. Route electrical cable through strain relief and
handy box (see Figure 24). Tighten screws on
strain relief.
3. Connect electrical cable to duplex outlet.
Match wire colors to those on duplex outlet.
Be sure to connect the ground wire.
4. Place duplex outlet back into handy box and
secure with screws. Replace outlet cover.
Strain Relief
Duplex Box/
Handy Box
Figure 24 - Hard-Wiring Firebox
Screw
Hood
Figure 26 - Screen Placement
(Model May Vary From Illustration)
Screw
Screen
Screws
