Part No. XG0120 Page 18
MD44-DV Direct Vent Vented Fireplace

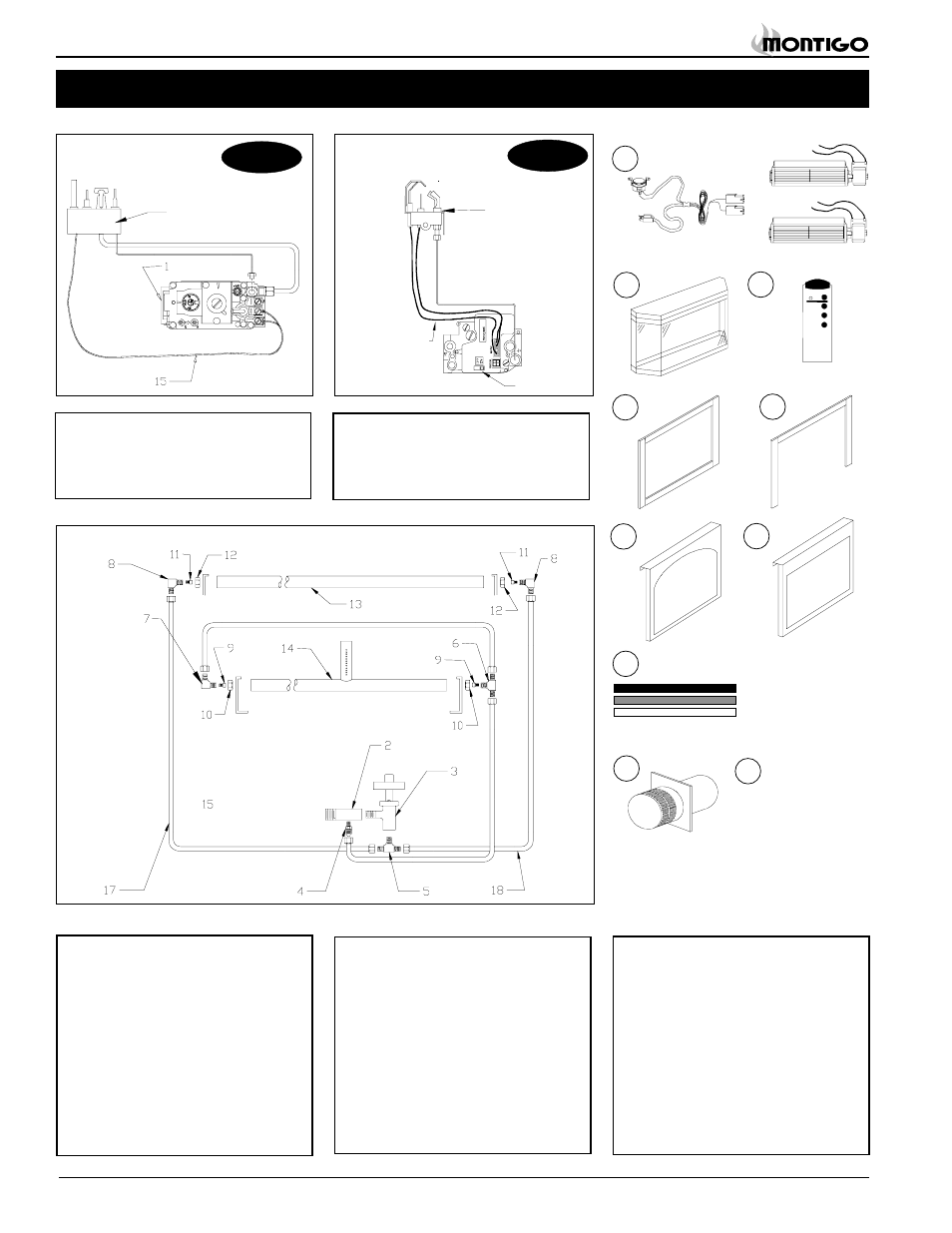

Appendix A - Spare Parts
19
20 21
22 23
24
26
25
$
Pilot Assembly &
Gas Valve
'
!
!
Pilot Assembly
& Gas Valve
1. Gas Control Valve - Sit Nova 820
15. Wire Harness
16. Pilot Burner Ass'y (Precision Speed
Equip. X-10A)
29. Gas Control Valve - Honeywell SV9501M
30. Wire Harness
31. Pilot Burner Ass'y (Honeywell Q3450)
Burner Assembly
MD44-DV MD44-DV-I
27 28
20. Add-on Bay Window
21. Remote Control
22. 4-Piece Picture Frame Surround (PFS)
23. 3-Piece Picture Frame Surround (PFO)
24. Door Frame, Arched (DFA)
25. Door Frame, Square (DFO)
26. Horizontal Trim Kits
27. MTO-3/-3F Termination
10. Jam Nut (1/4")
11. Orifice (rear burner)
12. Jam Nut (5/16")
13. Rear Burner
14. Front Burner
17. Rear Burner Tubing (5/16)"
18. Front Burner Tubing (1/4")
19. Optional Blower Kit (RFK1060)
2. Valve Nipple B-AC012
3. (deleted)
4. Connector 1/4" tube to 1/8" pipe
5. Brass Tee
6. Brass Tee
7. 90° Elbow
8. 90° Elbow
9. Orifice (front burner)
