Pointscan/104, Overview, Wiring – Measurement Computing PointScan 100 Series rev.1.0 User Manual

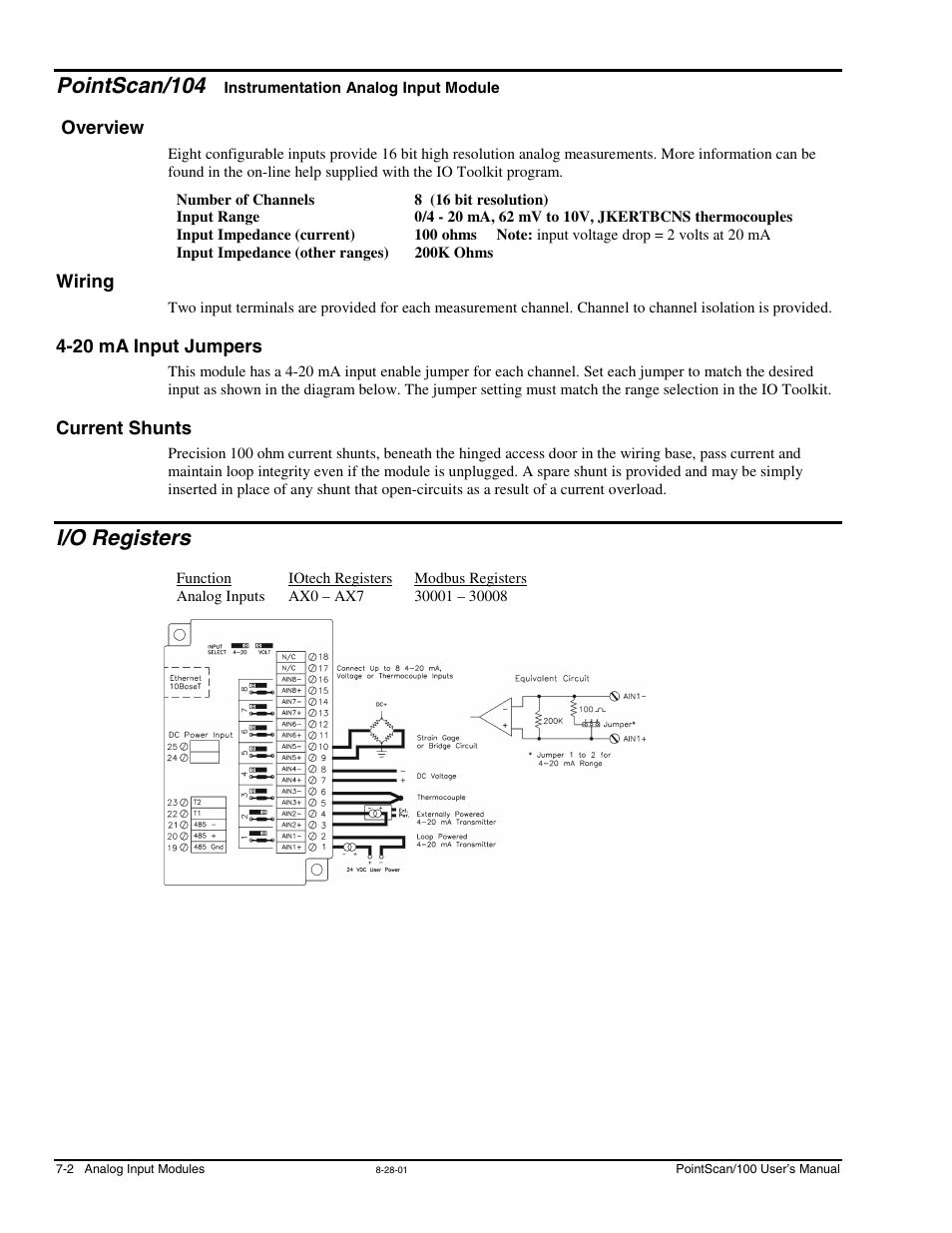

Page 28: 20 ma input jumpers, Current shunts, I/o registers, Instrumentation analog, Input module, Overview -2, 20 ma input jumpers -2 current shunts -2

Pointscan/104, Overview, Wiring | 20 ma input jumpers, Current shunts, I/o registers, Instrumentation analog, Input module, Overview -2, 20 ma input jumpers -2 current shunts -2 | Measurement Computing PointScan 100 Series rev.1.0 User Manual | Page 28 / 32 Pointscan/104, Overview, Wiring | 20 ma input jumpers, Current shunts, I/o registers, Instrumentation analog, Input module, Overview -2, 20 ma input jumpers -2 current shunts -2 | Measurement Computing PointScan 100 Series rev.1.0 User Manual | Page 28 / 32
