Pointscan/109, Overview, Wiring and jumpers – Measurement Computing PointScan 100 Series rev.1.0 User Manual

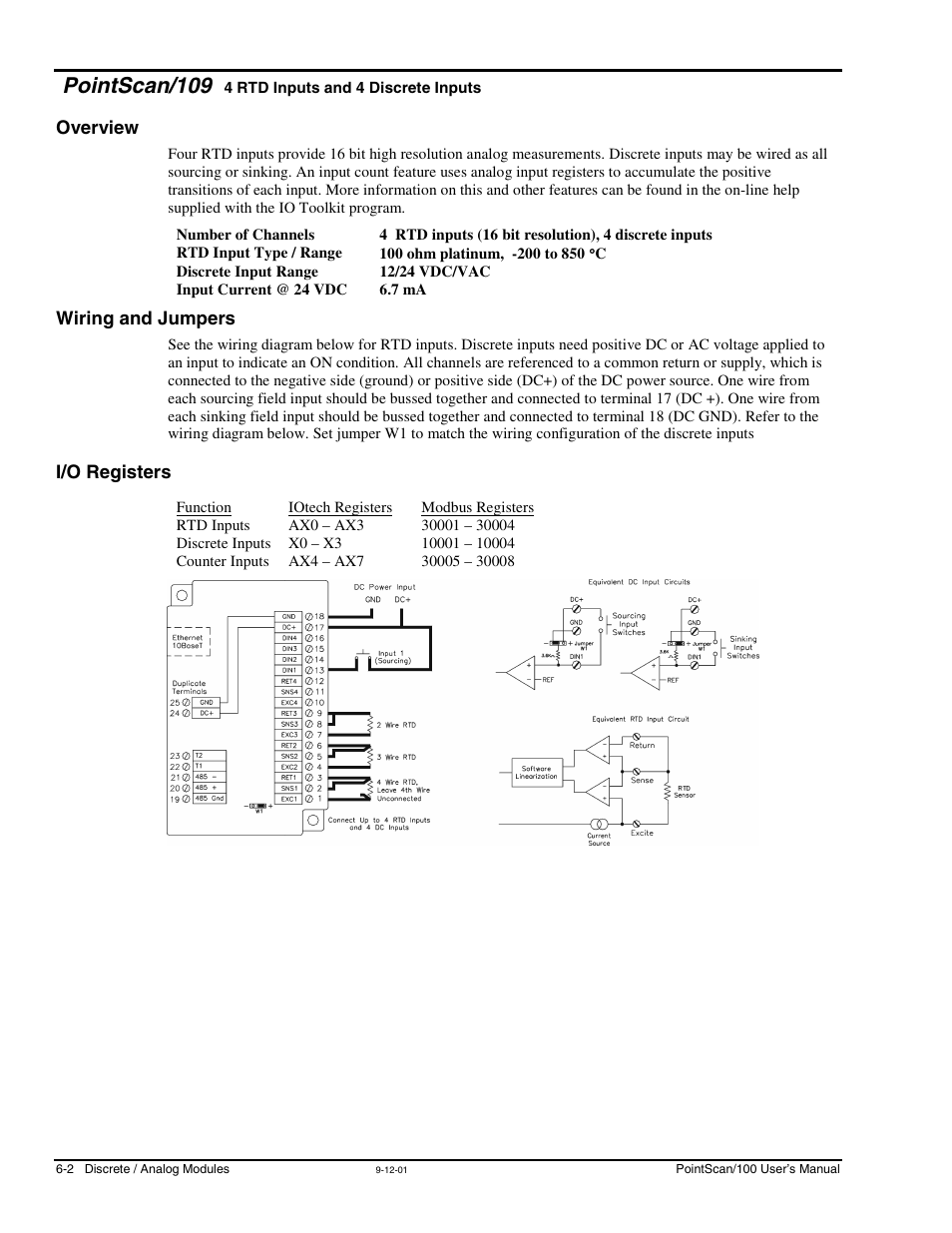

Page 26: I/o registers, 4 rtd inputs and, 4 discrete inputs, Overview -2 wiring and jumpers -2 i/o registers -2

Pointscan/109, Overview, Wiring and jumpers | I/o registers, 4 rtd inputs and, 4 discrete inputs, Overview -2 wiring and jumpers -2 i/o registers -2 | Measurement Computing PointScan 100 Series rev.1.0 User Manual | Page 26 / 32 Pointscan/109, Overview, Wiring and jumpers | I/o registers, 4 rtd inputs and, 4 discrete inputs, Overview -2 wiring and jumpers -2 i/o registers -2 | Measurement Computing PointScan 100 Series rev.1.0 User Manual | Page 26 / 32
