2. INSTALLATION
2.1 Data plate information
• Check that the data specified on the plate
correspond to the characteristics of the power
supply (V, kW, Hz, no. phases and power
available).
• The dataplate with appliance specifications
is located at the rear exterior of the machine
and/or on the electrical

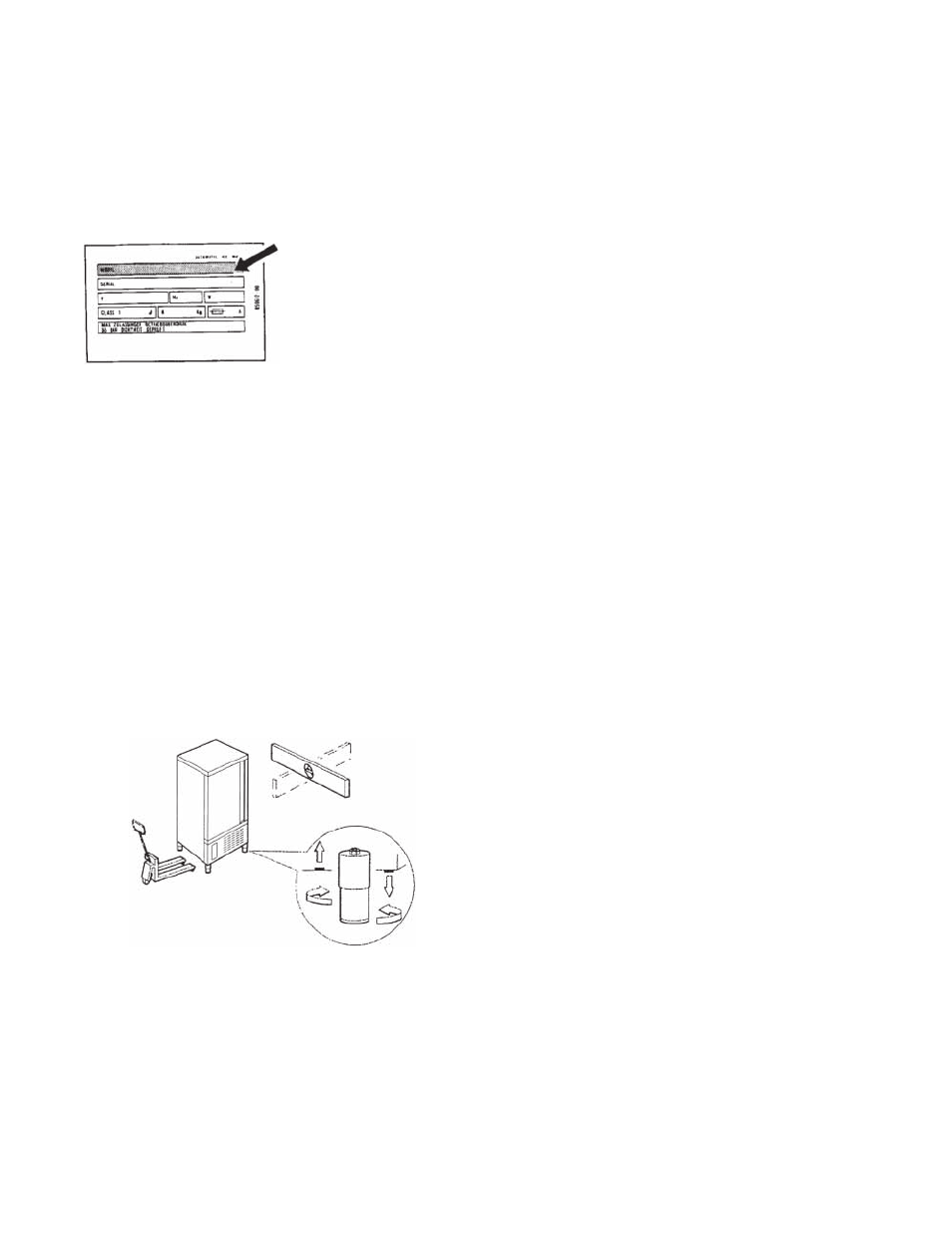

boards (fig. 3). The set-
up of individual units
and the installation of
condensers are subject to
the fire-safety regulations
of the country in which the machine is installed;
seek all necessary advice from the local fire-
fighting authorities. Bear in mind that the
intervention of safety valves or plug fuses in the
refrigerating circuit will lead to the immediate
discharge of refrigerant into the environment.
2.2 Positioning
• The machine must be installed in complete
compliance with safety regulations, procedures
and standing laws.
• Position the machine in the allocated site.
• Adjust the machine feet by turning the foot
clockwise until the appliance is perfectly level.
In the case of particularly heavy equipment, use
appropriate lifting means.
(fig. 4).
• If the appliance is not perfectly level, correct
operation and condensate flow-off will not be
assured.
AVOID
• direct exposure to sunlight;
• closed sites with high temperatures and poor air
circulation;
• installing the machine near sources of heat
Installation Clearance Requirements
All Cabinets:
12” clearance above top
12” clearance on sides and rear
Remote condensing units for T40 models.
24” clearance above top
6” clearance on sides and rear
2.3 Ambient temperature and air circulation
For air-cooled appliances, the maximum ambient
temperature for operation is 90°F / 32°C. Correct
operation cannot be guaranteed at higher
temperatures. The machine may operate safely
to a maximum temperature of 100°F / 38°C.
Remote condensing units may be installed
indoors next to the unit or within 25 ft. Consult
Delfield if placementwill be greater than 25
ft. away. Remote condensing units may also
be installed outdoors but require a U.L. listed
enclosure which is supplied as an option from
Delfield. Sufficient air circulation must be
guaranteed at all times.
2.4 Electrical connections
A dedicated thermal-magnetic circuit breaker
compliant with established regulations must be
installed on the appliance power line.
• Connected electrical cables must correspond
to the technical data (as specified on electrical
drawings provided by the installation
technician).
Connect the earthing conductor to an efficient
earthing system.
THE MANUFACTURER DECLINES ALL LIABILITY
AND GUARANTEE OBLIGATIONS IN THE EVENT
OF INJURY TO PERSONS OR DAMAGE TO
EQUIPMENT AND OBJECTS DUE TO INCORRECT
INSTALLATION AND/OR FAILURE TO COMPLY
WITH STANDING INSTALLATION REGULATIONS.
