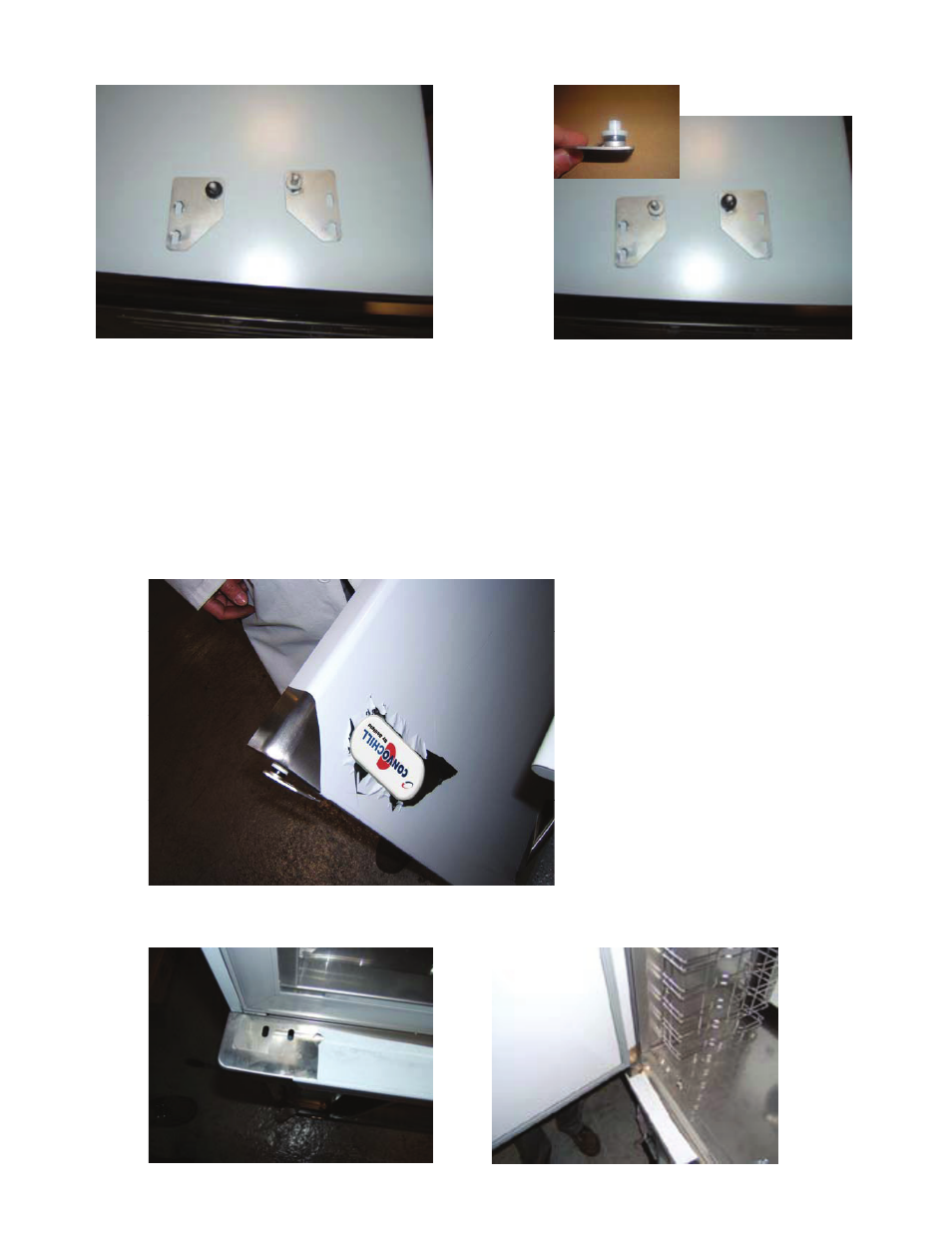

5. Remove the chiller door.
6. Remove the right top hinge. Rotate it 180º and install it on the left top side of the chiller.
Cerniera inferiore destra Cerniera inferiore sinistra(in
dotazione)
Lower right hinge Lower left hinge
(left hinge as accessory)
7.Spostare la guarnizione
nera e la boccola in
plastica dalla cerniera
destra su quella sinistra
Move the black gasket
and the plastic buckle
from the right hinge to
the left hinge.
8.Ruotare la porta di 180° ed installare la cerniera inferiore
Sinistra. Rotate the door of 180° and install the inferior left hinge .
9.Installare la porta fissando la cerniera inferiore sinistra negli appositi fori predisposti
Install the door fixing the left inferior hinge in the predisposed holes
Lower right
hinge Lower left hinge
(left hinge
supplied as
accessory) 7. Move the black washer and the
plastic bushing from the right
hinge to the left hinge.
8. Rotate the door 180º and insert the lower left hinge.
9. Install the door, inserting the top hinge into the prepunched holes, aligning the left
lower hinge with the prepunched holes.
