section 6

6.3 |

schematics

®

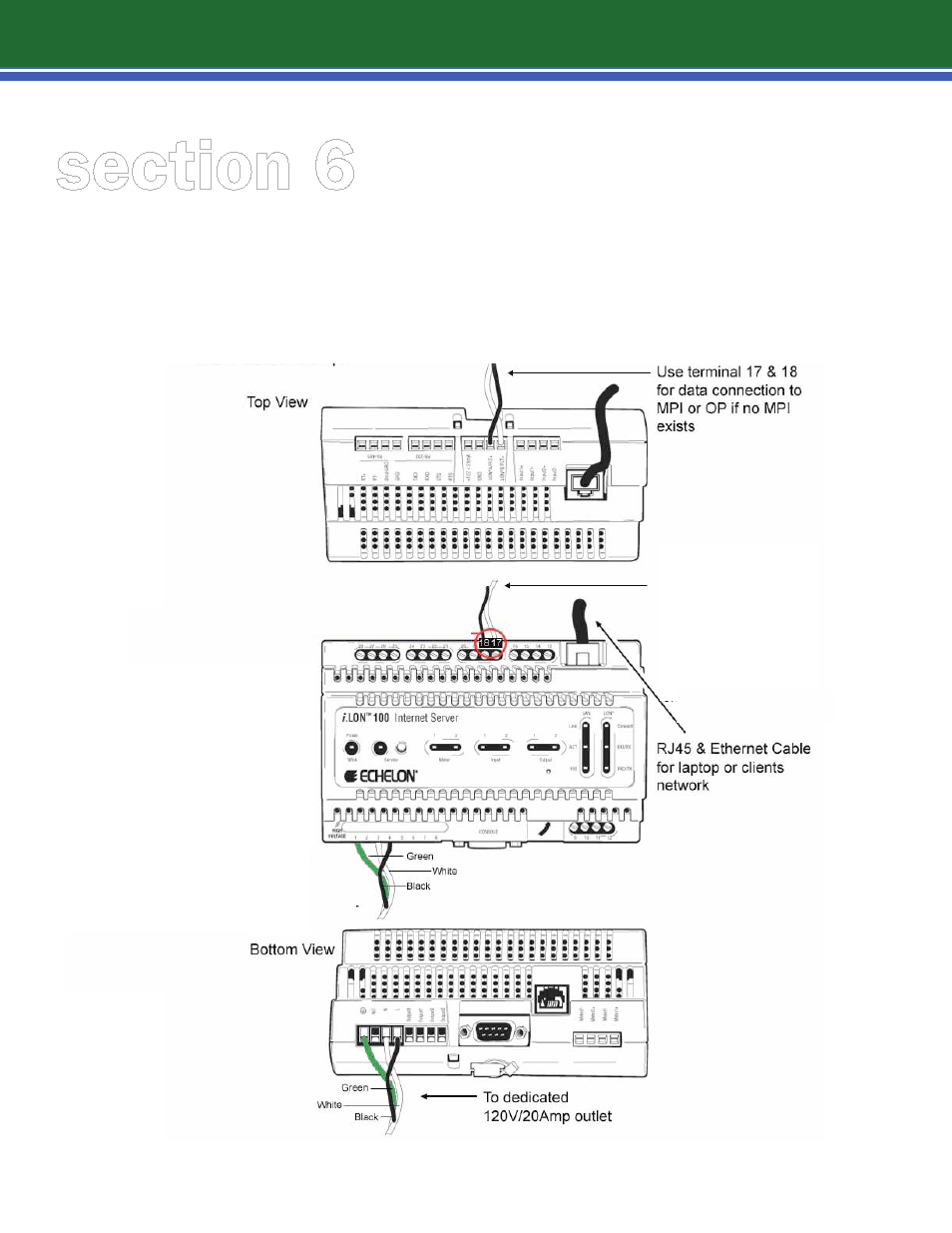

SPECTRA I.NET SOUND MASKING

I.LON 100® CLOSE UPS

41

Conductor Wire. 16

gauge, goes from

i.LON #17 & #18 to

either MPI or if no

MPI exists, to a

Jordna Hub on the

black screw

terminals labeled

data.
