Lencore Spectra i.Net: Sound Manager - Manual (Page 30)

2. Click on the Pad and Pencil symbol in the Groups section to Edit selected
group as shown in Figure 19 below.

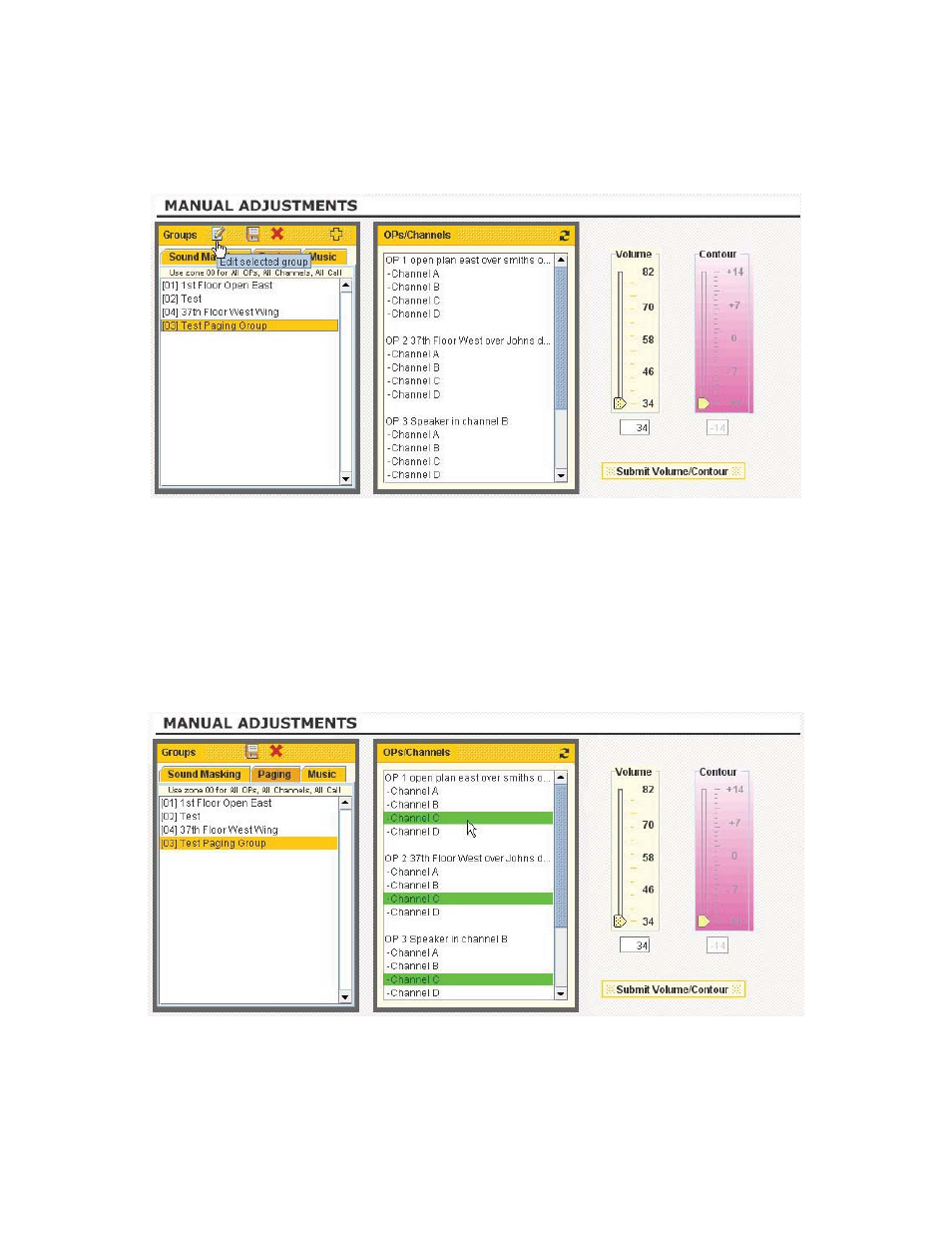

Figure 19
3. To select the OP(s) and/or channels you would like to assign to the group,
highlight and click the OP(s) or individual channels. To de-select simply click
on the OP or channel again.
4. Notice that the channels selected are GREEN, this means the group is not
“Saved”.
Figure 20
5. To change the Volume for this group at this time slide the indicators up or
down on the Volume scale or type in the value desired in the boxes below
