Infloor Installation Manual
19
Appendix 4: Connecting the LoudMouth Monitor

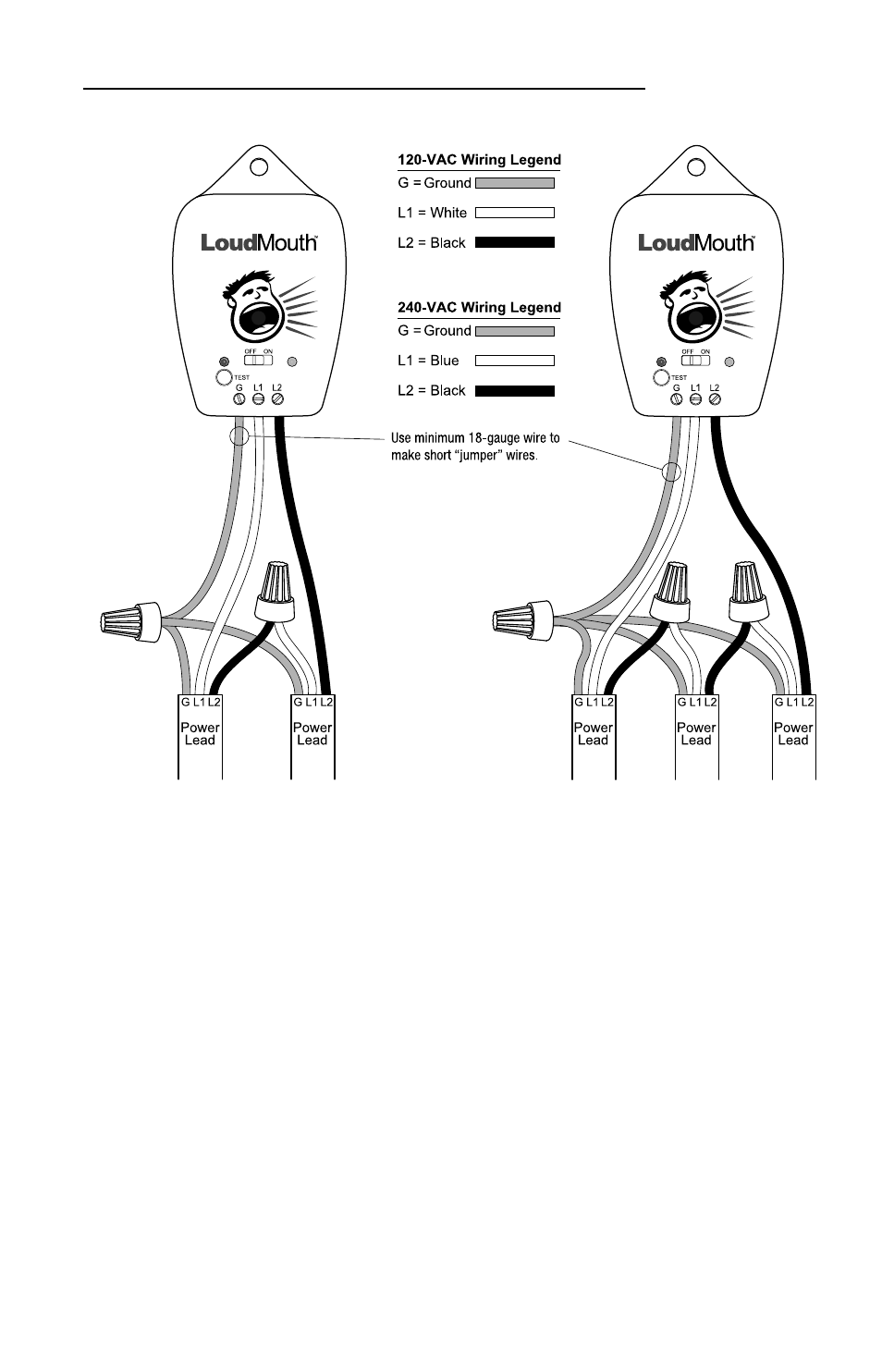

Illustrations showing (left) how to connect the LoudMouth monitor to two cables, and (right) how to connect the
LoudMouth to three cables. The LoudMouth can monitor no more than three cables simultaneously. Do NOT leave the
power leads connected in “series” like this when making final wiring connections; the cables will not heat sufficiently.
