Infloor Installation Manual

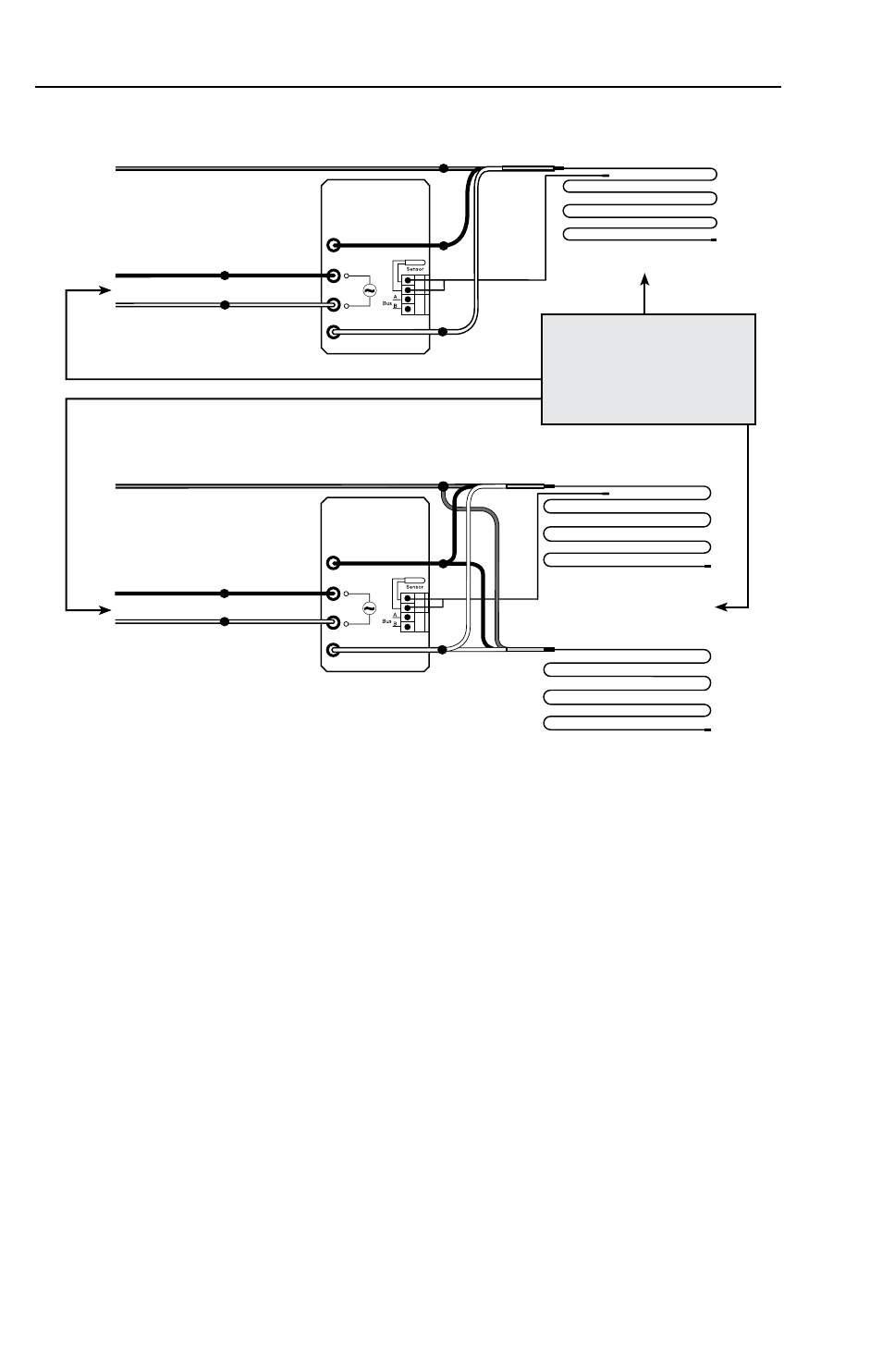

Typical Electrical Wiring Diagram with Infloor Control (120/240VAC)
Dedicated 120 or 240VAC, 20-amp (maximum) circuit.
Typical Electrical Wiring Diagram with Infloor Control (120/240VAC)
Dedicated 120 or 240VAC, 20-amp (maximum) circuit.
Appendix 2: Typical Electrical Wiring Diagrams (120 and 240 VAC)
Ground
Black
Black
Black
White
White
White
Line 1
Load 1
Load 2
Line 2
120 VAC or 240 VAC
Sensor Wire
(no polarity)
120 VAC or 240 VAC Heating Cable
(maximum 15 amps)
Two or more120 VAC or
240 VAC Heating Cables
(maximum 15 amps)
CAUTION: Make sure 120 VAC
is supplied to 120VAC cables and
240VAC is supplied to 240VAC
cables. Otherwise, dangerous
overheating and possible fire
hazard can result.
120/240 VAC
SunStat Control
Ground
Black
Black
Black
White
White
White
Line 1
Load 1
Load 2
Line 2
120 VAC or 240 VAC
Sensor Wire
(no polarity)
120/240 VAC
SunStat Control
NOTE: Installation must be performed by a qualified licensed electrician in accordance with local building
and electrical codes, ANSI/NFPA 70 (NEC Article 424) and CEC Part 1 Section 62 where applicable .
