Harken 20ST Winche User Manual
Page 7
7
Radial Winch
20 ST
Installation and Maintenance Manual
NOTICE
Make sure the skirt is correctly clipped on to the base of the winch.
Install the winch on the deck in the position you have chosen, keeping in mind the limits described
on page 4 and using hexagonal headed bolts.
(See paragraph on installation)

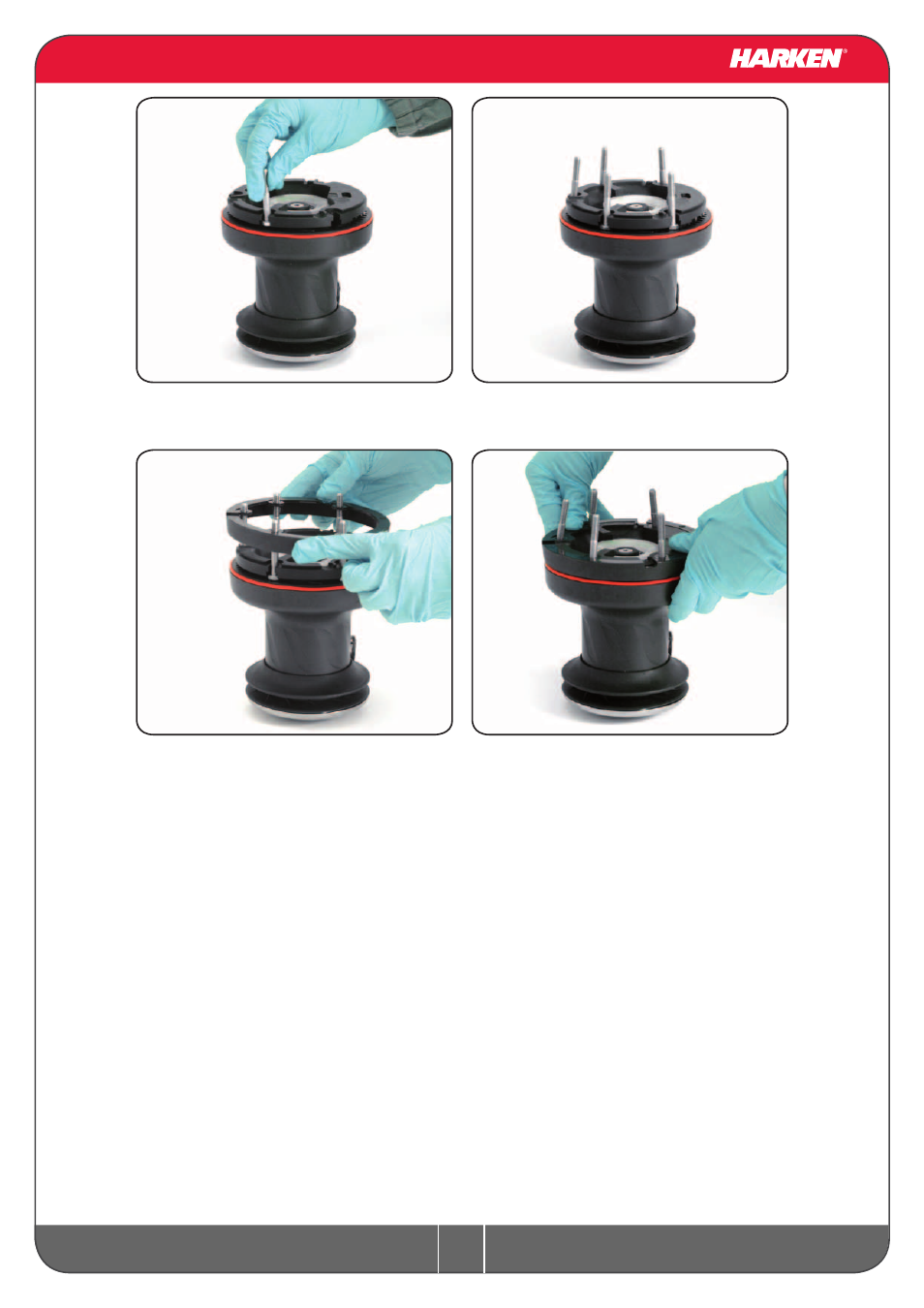

4. Reposition the skirt n°2 in its housing
5. Press down the skirt to position it correctly
3. Position the 5 M6 hexagonal headed bolts
in their holes
