Harken 20ST Winche User Manual
Page 5
5
Radial Winch
20 ST
Installation and Maintenance Manual
The winch can be installed following one of the two procedures below (
Procedure1 or Procedure2):

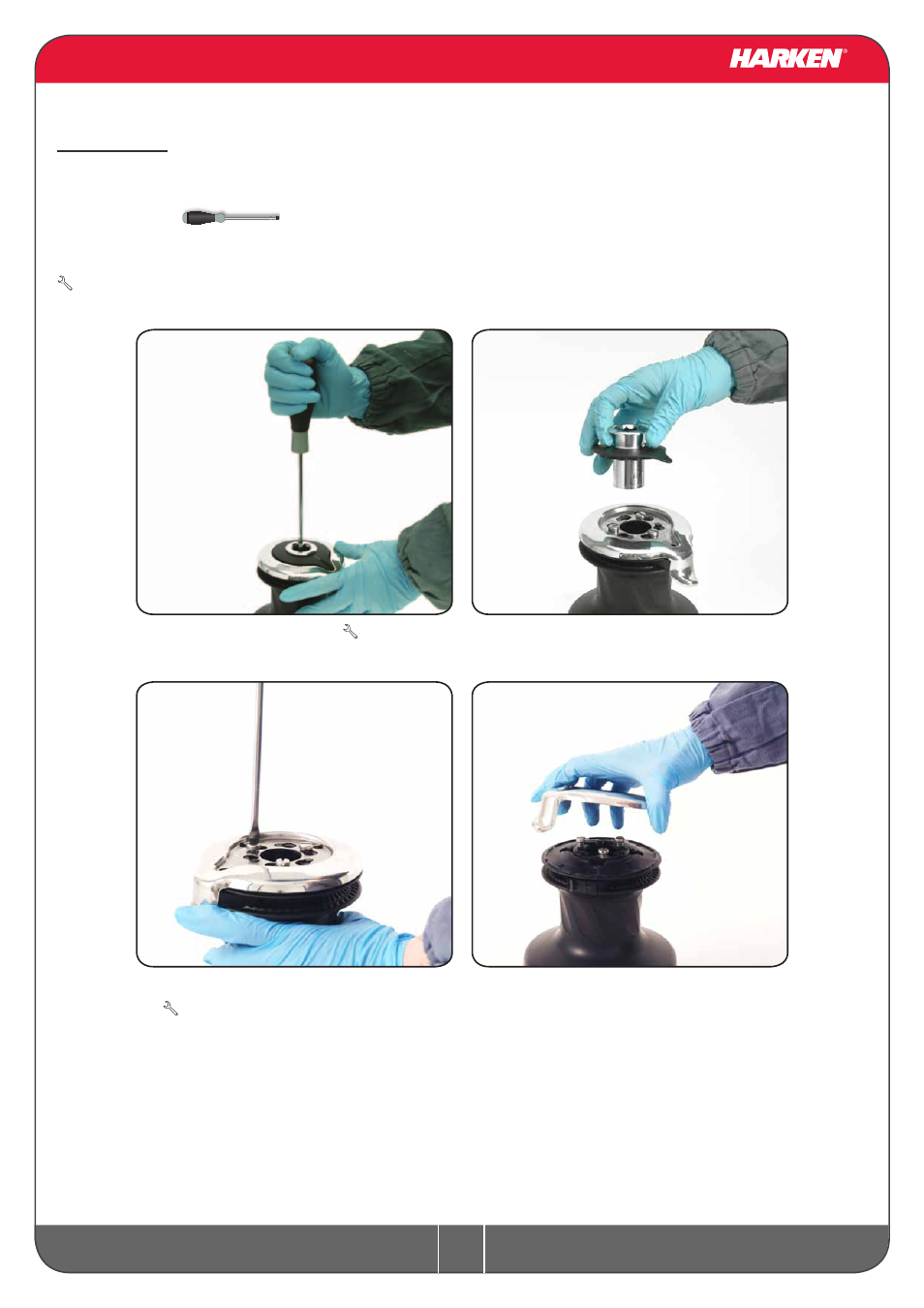

Procedure1
To install the winch you must remove the drum and use Socket Head (SH) bolts.
Tools needed
One medium flat-bladed screwdriver
To identify the various parts, refer to the exploded view at the end of this Manual.
Torque to apply when assembling
1. Unscrew the central screw ( 2Nm/18 in-lb)
2. Slide off the assy socket n°20 and the cover
n°19
3. Unscrew the three screws n°18
( 4Nm/35 in-lb)
4. Remove the self-tailing arm n°17 by rotating
and lifting it.
