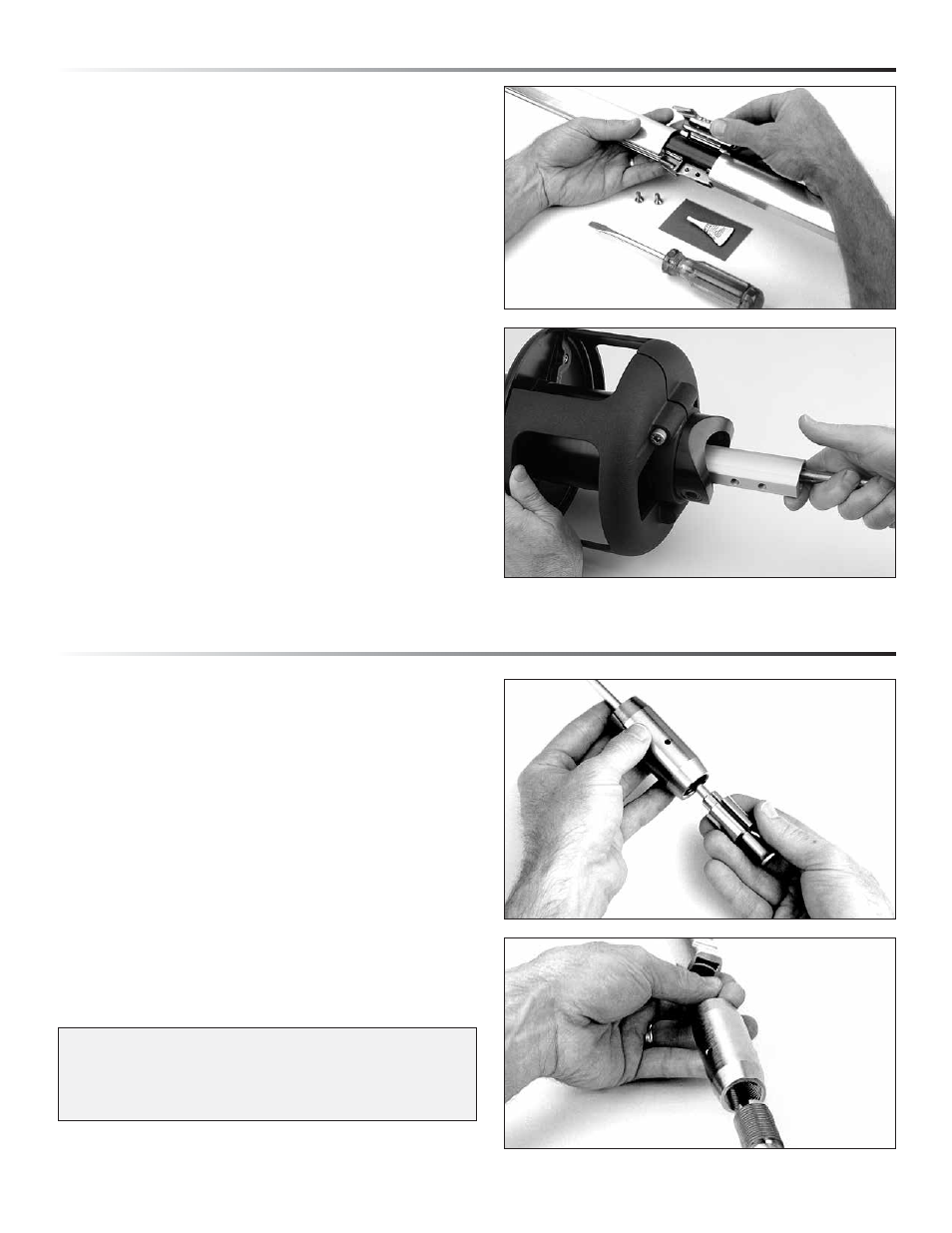

Install feeder screws toward bottom, using blue Loctite
®
on screws.
Slide lower unit onto foils.
■ ATTACHING STAY TO TOGGLE/TERMINAL ASSEMBLY
Make sure halyard swivel and drum assembly have been
slipped on the foils.
Slip the rod adapter sleeve onto the rod.
Sandwich the nosepiece over the rod and insert into the
main body, narrow end first. Jiggle the sleeve or use a small
screwdriver to push the nosepiece completely into sleeve.
Put several drops of the blue Loctite on the large threads
of the stud. Thread the stud into the main body until the
slot aligns neatly with the hole in the main body.
ASSEMBLY Foils
ASSEMBLY Attach Stay
8 Nautor Furling December 2004
TIP: Sight through the pin hole to find the optimum thread
engagement. Make sure the stud is threaded far
enough so the pin is securely seated in the slot,
yet not threaded too far to block the pin.
