50

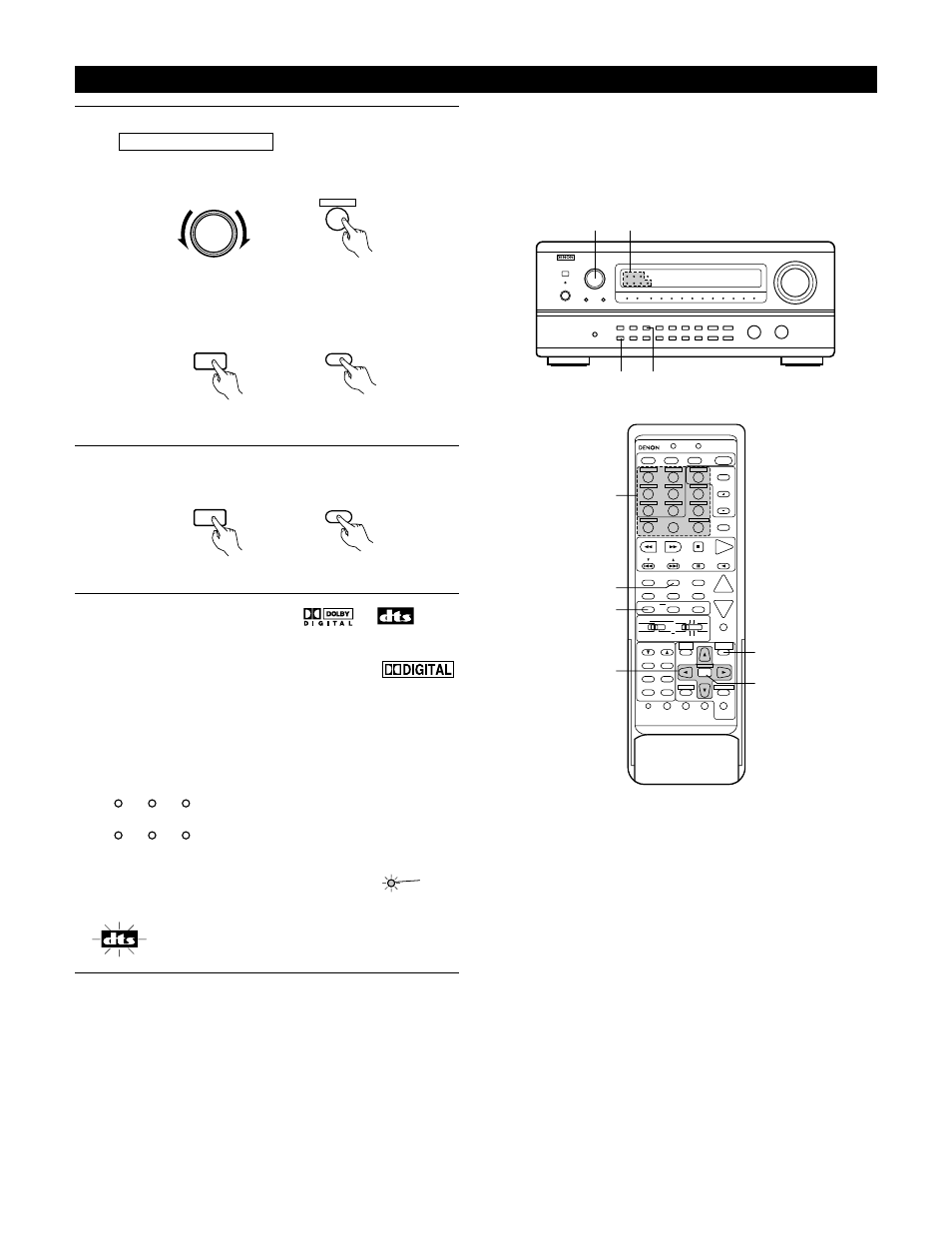

Dolby Digital mode (only with digital input) and DTS Surround (only with digital input)
1 Select the input source.
INPUT SELECTOR VDP
2
(Main unit) (Remote control unit)
q Select an input source set to digital (COAXIAL/OPTICAL)
(see page 28).
INPUT MODE
INPUT MODE
(Main unit) (Remote control unit)
w Set the input mode to “AUTO”.
2 Select the Dolby Surround mode.
DOLBY / DTS
SURROUND
DOLBY / DTS
SURROUND
(Main unit) (Remote control unit)
3
Play a program source with the , mark.
• The Dolby Digital indicator lights when
playing Dolby Digital sources.
For operating instructions, refer to the
manuals of the respective components.
When the source is played, the input channel indicators
indicating the signals included in the source light as shown on
the diagram below. (The number of channels that lights
depends on the input source.)
Lit
1 3
1 2
DVD
START LEARNED/TX
HOME THX CINEMA
TUNING
BAND
TITLE MENU/GUIDE
MODE
MEMORY
USE/LEARN T.TONE MULTI SPEAKER DVD
SET UP
RETURN
STATUS
DISPLAY
ON SCREEN
DOLBY / DTS SURROUND DIRECT
DSP SIMULATION 5CH / 7CH STEREO STEREO
INPUT MODE ANALOG EXT.IN
MUTING
MASTER VOL.
VOLUME DISC SKIP+
SYSTEM CALL POWER
VDP TUNER SHIFT
TV/DBS V.AUX PHONO
VCR-1 CD MD / TAPE-1 CHANNEL
VCR-2 TAPE-2 MON TV/VCR
AVR/AVC VIDEO DVD TV
AUDIO
VDP VCR
CD
MD
MULTI
DECK
SYSTEM SETUP SURROUND PARAMETER
CH SELECT
SELECT
RC-869
1 2 3
4
SET
A / B
CALL OFF
ENTER
ON / SOURCE
5 6
7 8 9
+10 0
1
2
1
5
4
6
L C
CH INDICATOR
R
SL S SR
L: Front left channel
C: Center channel
R: Front right channel
SL: Surround left channel
S:
Mono surround channel
SR: Surround right channel
• Also, the following indicator lights if the software
contains Low Frequency Effect sounds:
LFE
Lit
The DTS indicator lights when playing DTS sources.
Lit
Playback with digital input
