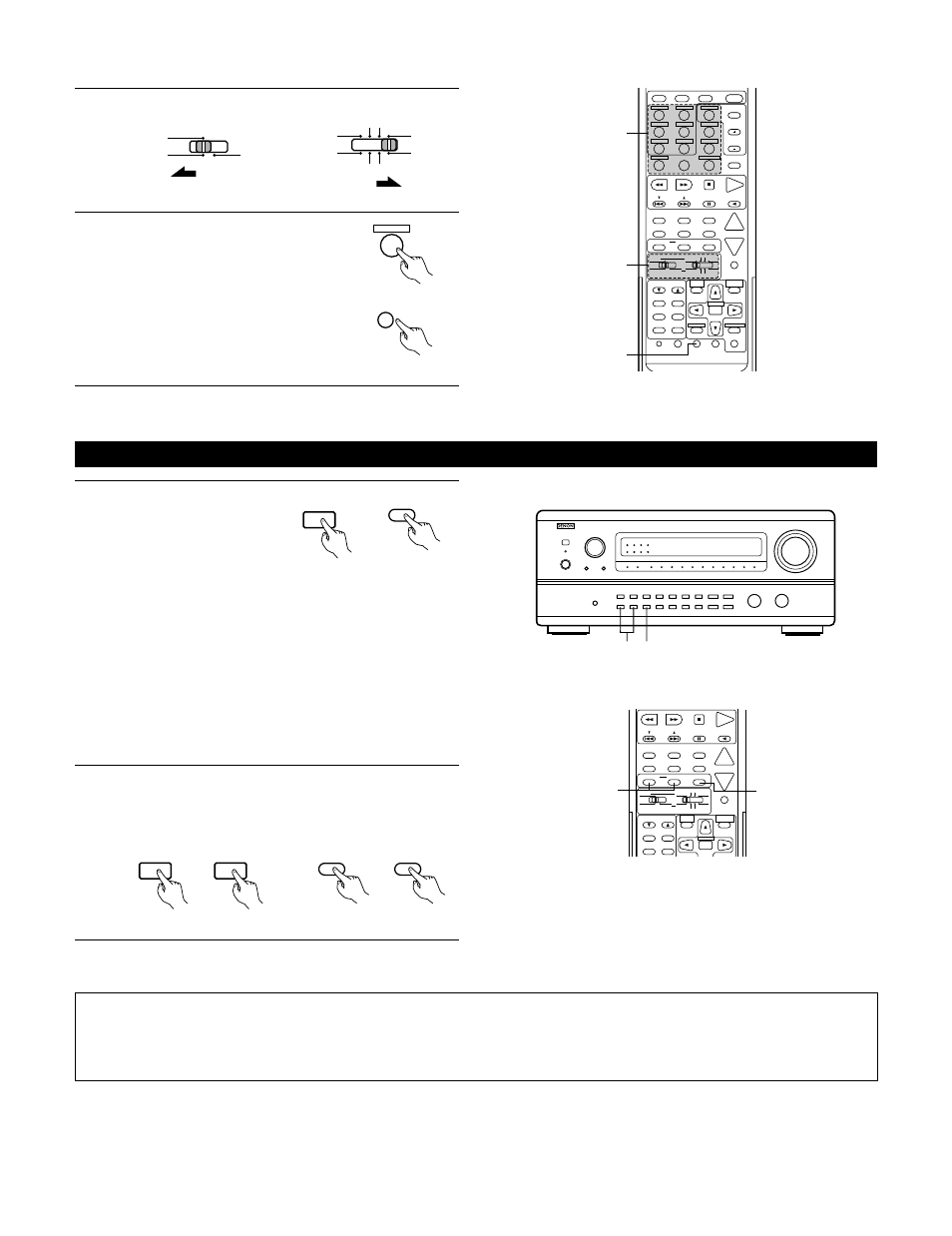

[3] Remote control unit operations during multi-source playback (selecting the source)
1 Set the slide switch to “AUDIO” and “MULTI”.
AVR/AVC VIDEO
AUDIO
DVD TV
VDP VCR
CD
MD
MULTI
DECK
(Remote control unit)
2 Press the input source
button.
The multi source switches
directly.
The remote control unit’s MULTI button
can be operated at positions other than
“MULTI”.
The multi source switches in order each
time the multi button is pressed.
CD
8
MULTI
(Remote control unit)
Example: CD
(Remote control unit)
DVD
START LEARNED/TX
HOME THX CINEMA
TUNING
BAND
TITLE MENU/GUIDE
MODE
MEMORY
USE/LEARN T.TONE MULTI SPEAKER SET UP
RETURN
STATUS
DISPLAY
ON SCREEN
DOLBY / DTS SURROUND DIRECT
DSP SIMULATION 5CH / 7CH STEREO STEREO
INPUT MODE ANALOG EXT.IN
MUTING
MASTER VOL.
VOLUME DISC SKIP+
SYSTEM CALL POWER
VDP TUNER SHIFT
TV/DBS V.AUX PHONO
VCR-1 CD MD / TAPE-1 CHANNEL
VCR-2 TAPE-2 MON TV/VCR
AVR/AVC VIDEO DVD TV
AUDIO
VDP VCR
CD
MD
MULTI
DECK
SYSTEM SETUP SURROUND PARAMETER
CH SELECT
SELECT
1 2 3
4
SET
A / B
CALL OFF
ENTER
ON / SOURCE
5 6
7 8 9
+10 0
2
1
2
Playback using the external input (EXT. IN) jacks
1 Set the external input
(6CH/8CH EXT. IN) mode.
Press the 6CH/8CH EXT. IN
(on the EXT. IN button on
the remote control unit) to
switch the external input.
Once this is selected, the input signals connected to the FL
(front left), FR (front right), C (center), SL (surround left) and
SR (surround right) channels of the EXT. IN jacks are output
directly to the front (left and right), center and surround (left
and right) speaker systems as well as the pre-out jacks
without passing through the surround circuitry.
In addition, the signal input to the SW (subwoofer) jack is
output to the PRE OUT SUBWOOFER jack.
When 6CH/8CH EXT. IN is selected, the input signals
connected to the EL (effect left) and ER (effect right) jacks
are output to the PRE OUT EFFECT/SB (left and right)
jacks.
6CH / 8CH
EXT. IN EXT.IN
(Main unit) (Remote control unit)
2 Canceling the external input mode
To cancel the external input (6CH/8CH EXT. IN) setting, press
the INPUT MODE or ANALOG button to switch to the desired
input mode. (See page 40.)
INPUT MODE ANALOG
(Remote control unit)
INPUT MODE ANALOG
(Main unit)
• When the input mode is set to the external input (6CH/8CH EXT. IN), the play mode (DIRECT, STEREO, DOLBY/DTS SURROUND, HOME THX
CINEMA, WIDE SCREEN, 5CH/7CH STEREO or DSP SIMULATION) cannot be set.
NOTES:
• In play modes other than the external input mode, the signals connected to these jacks cannot be played. In addition, signals cannot be
output from channels not connected to the input jacks.
• The external input mode can be set for any input source. To watch video while listening to sound, select the input source to which the video
signal is connected, then set this mode.
