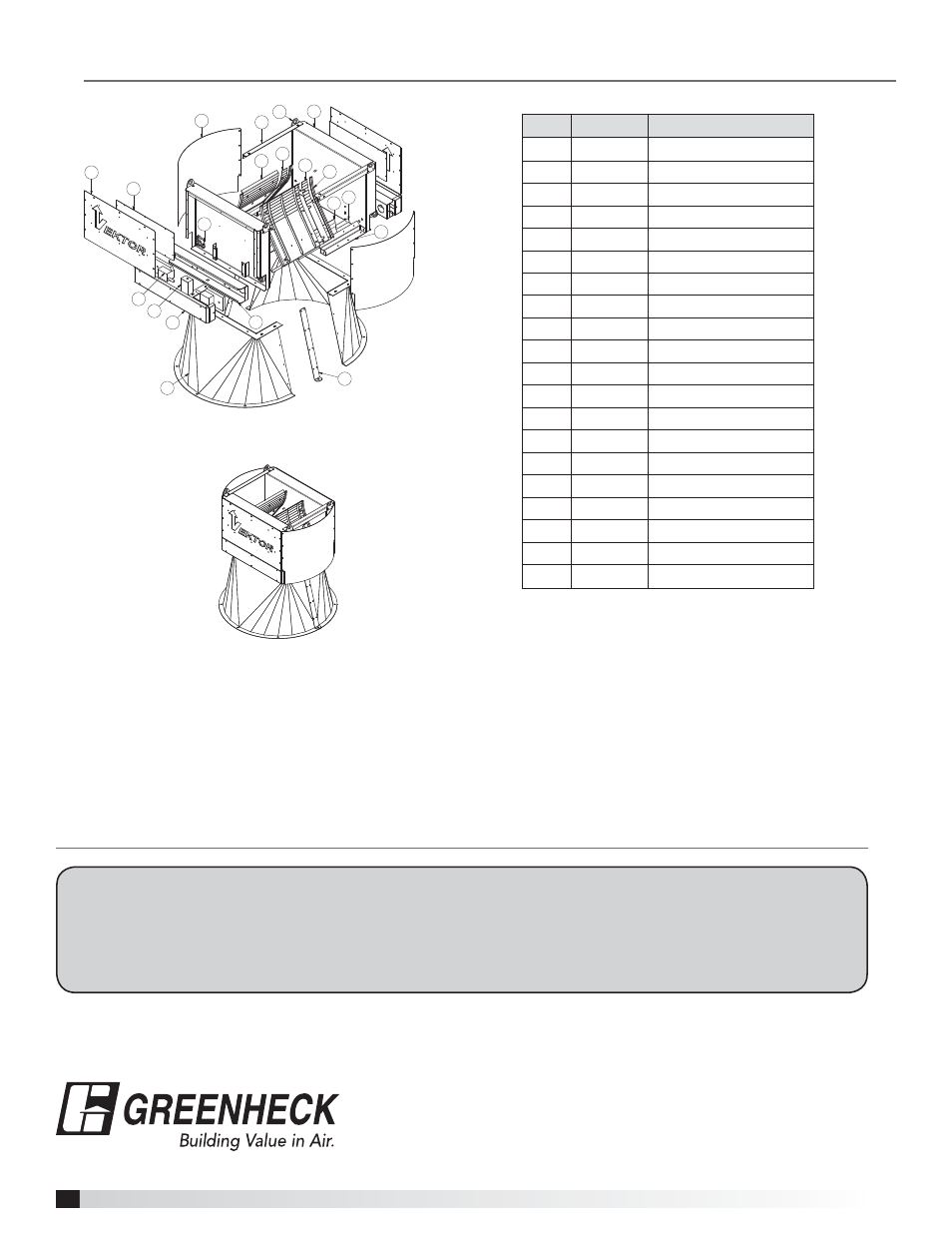

Vektor-MS Nozzle Parts and Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Item
Quantity
Description
1
2
Transition Weld
2
2
Transition side cover
3
2
Wind wrap round
4
2
Wind wrap flat
5
2
Frame bottom bar
6
2
Frame top bar
7
2
Frame weld
8
2
Blade weld
9
2 or 4*
Actuator mount
10
4
Lifting lug
11
2 or 4*
Actuator cover
12
2
Blade seal, right
13
6
Blade seal, left
14
4
Flex backing
15
2
Vektor backing
16
2 or 4*
Actuator
17
1
Electrical box
18
4
Bearing
19
4
Blade seal
20
2
Flex seal
* Quantity 2 for sizes 15 thru 24
Quantity 4 for sizes 27 thru 40
