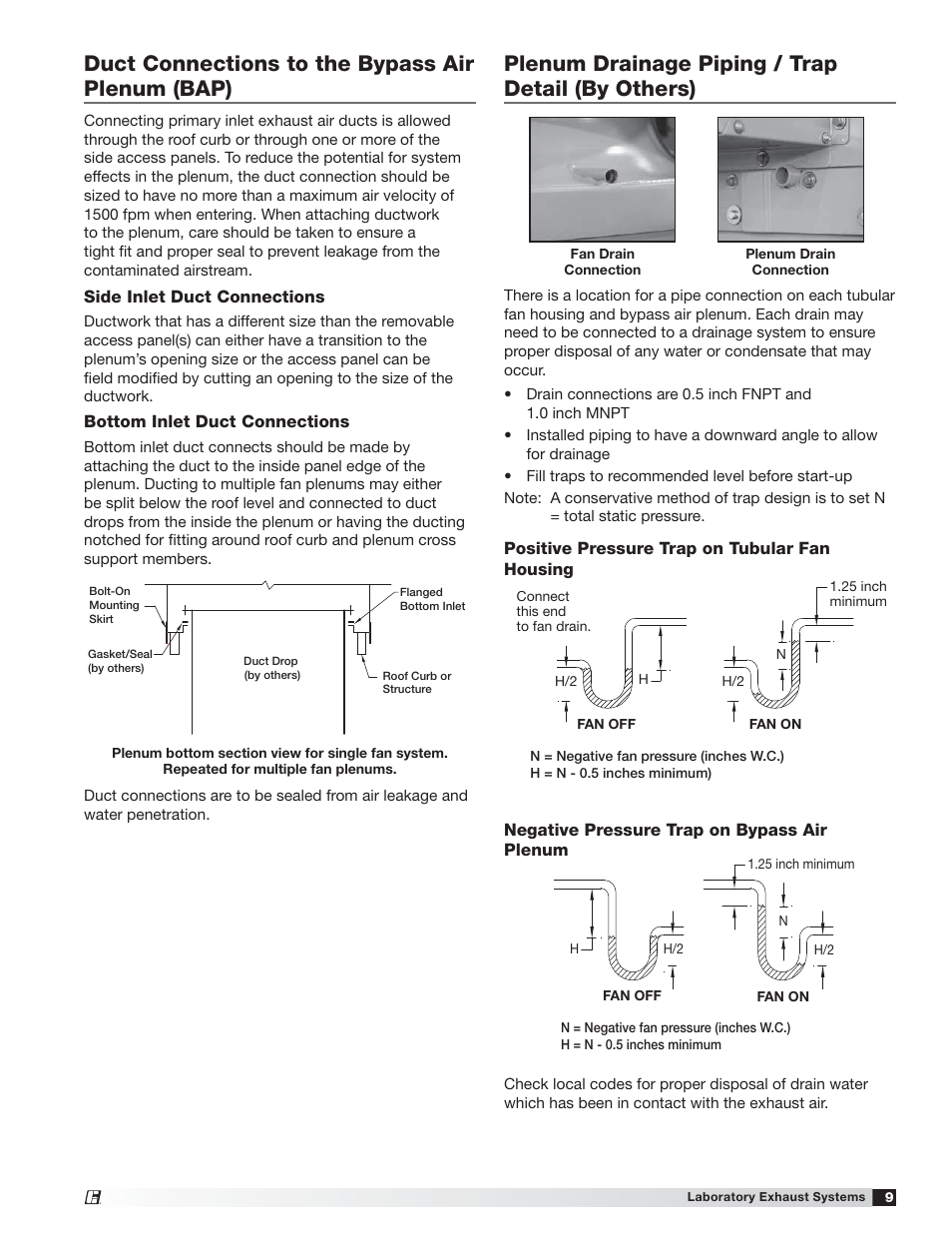

Duct connections to the bypass air plenum (bap), Plenum drainage piping / trap detail (by others) – Greenheck Vektor-MH, Vektor-MD, and Vektor-MS (464652) User Manual
Page 9
