Roof curb and mounting details, Wood, Steel concrete – Greenheck Vektor-MH, Vektor-MD, and Vektor-MS (464652) User Manual

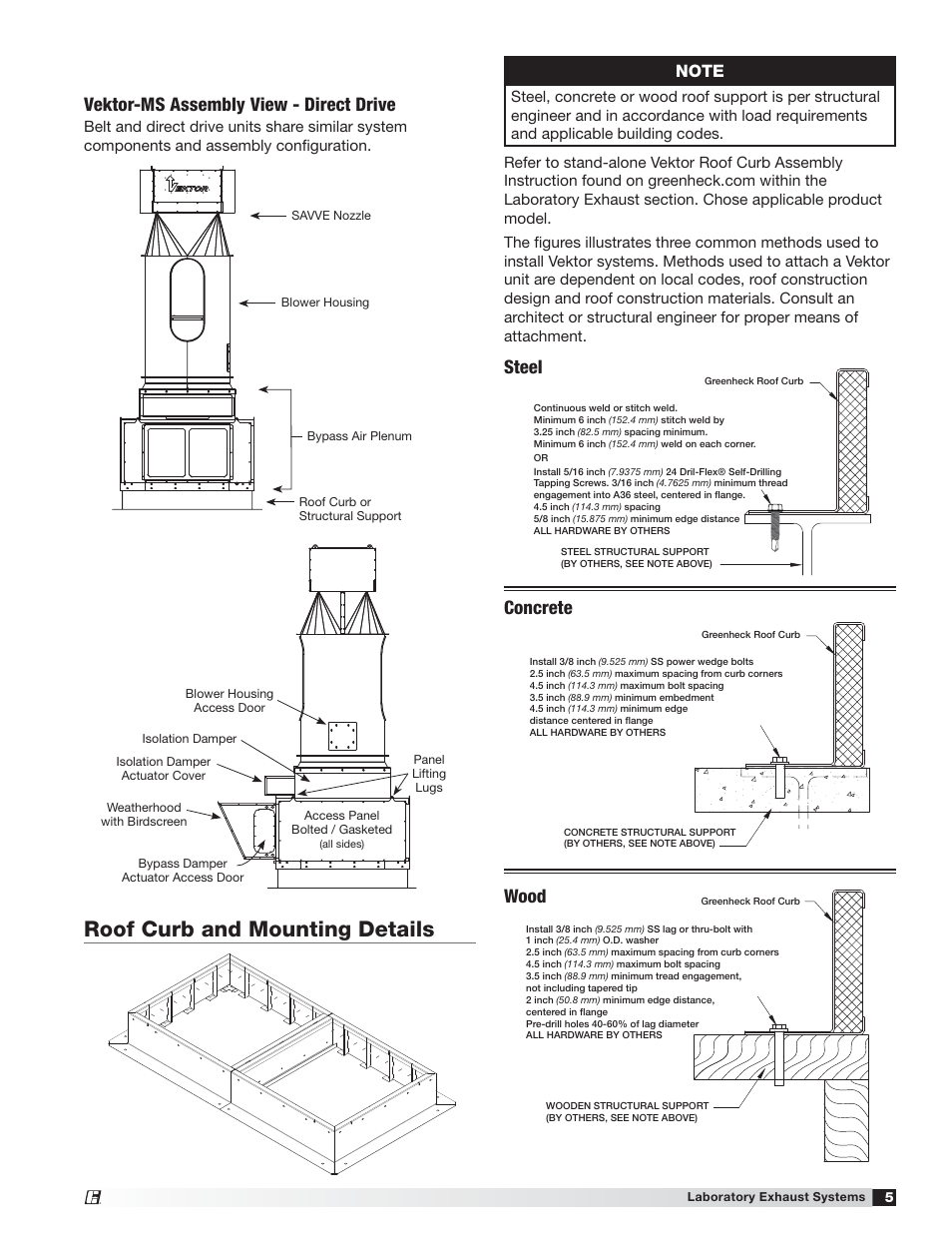

Page 5: Vektor-ms assembly view - direct drive
