1. INPUT MIC
XLR-socket for the connection of a microphone when
recording a message. By using a short test-sample, the
level is automatically adjusted and the setting is saved.
This input can also be used for making announcements.
2. INPUT LINE
RCA-type sockets for the connection of stereo or
monaural audio signal sources (tape deck, CD player)
when recording a message. A wired in parallel 0dBu
socket on the rear panel is also provided. By using a
short test-sample, the level is automatically adjusted
and the setting is saved.
This input can also be used for making announcements.
3. PHONES
Stereo phone jack 1/4" (6.3 mm) to pre-listen to messa-
ges, gong and alarm signals via headphones. Wired in
parallel, a 0dBu socket is provided on the rear panel.
4. Multi-function Display
Back-lit LC display, 2 lines with 16 characters, each.
The display lights up by pressing any key.
The display is dimmed whenever the EXIT-key gets
pressed or no key is pressed for at all within a short
while.
5. SOFT KEY
Depending on the selected operation mode, the soft
keys are used in various ways. The according function
is indicated on the display.
6. CURSOR
CURSOR-keys to control the cursor on the display and
for modifying data.
7. RECORDER
Keys for …
TITLE skip back, REWIND, PLAY/STOP, REC, FAST
FORWARD, TITLE skip forward.
8. EXIT
Key for exiting the edit mode in order to prevent un-
authorized operation. Each pressing of the key switches
back one menu stage.
9. POWER
The LED lights whenever the DMM 4650 is ready for
operation. In case the LED BLINKS you should contact
a DYNACORD service center.

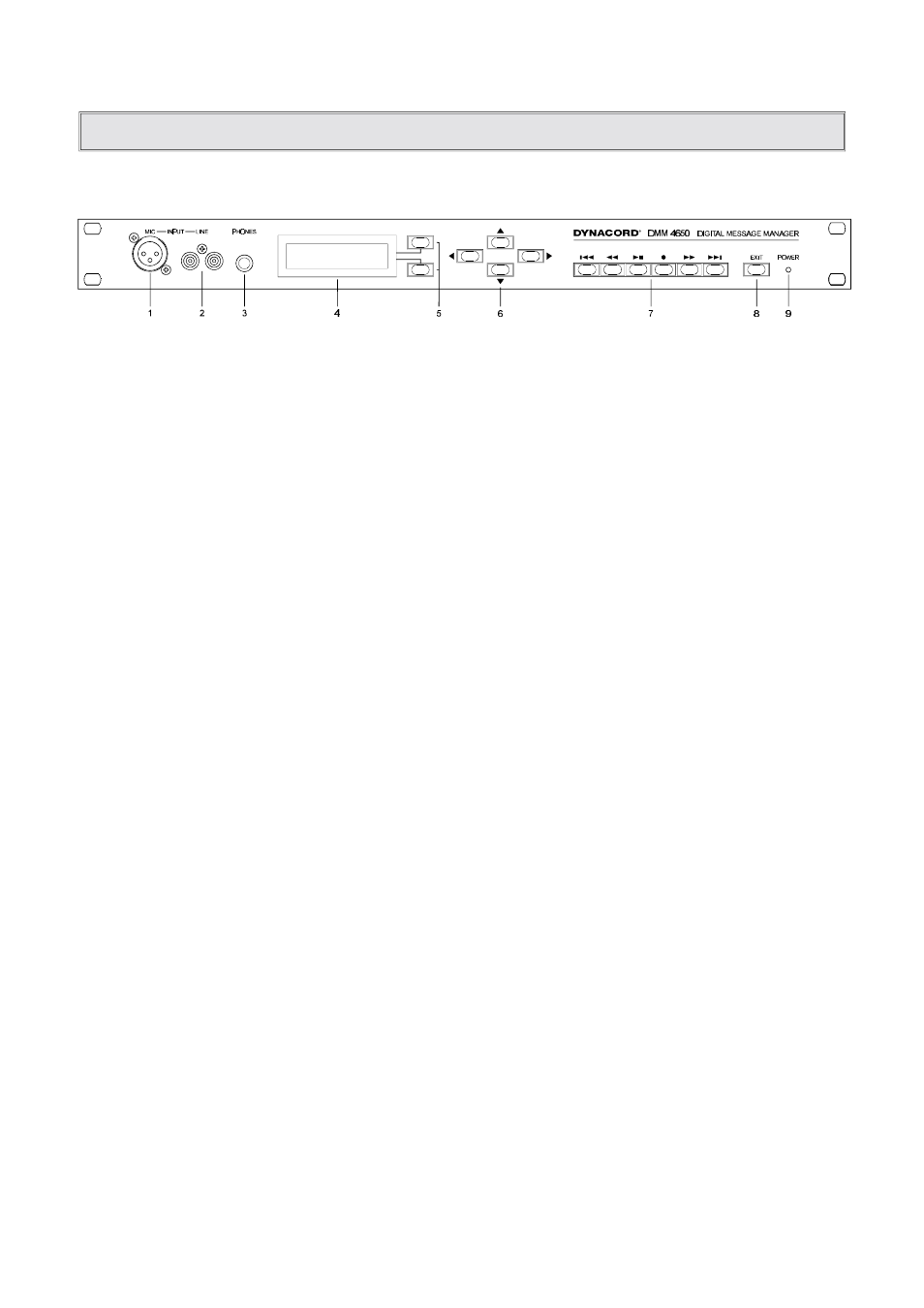

FRONT PANEL
