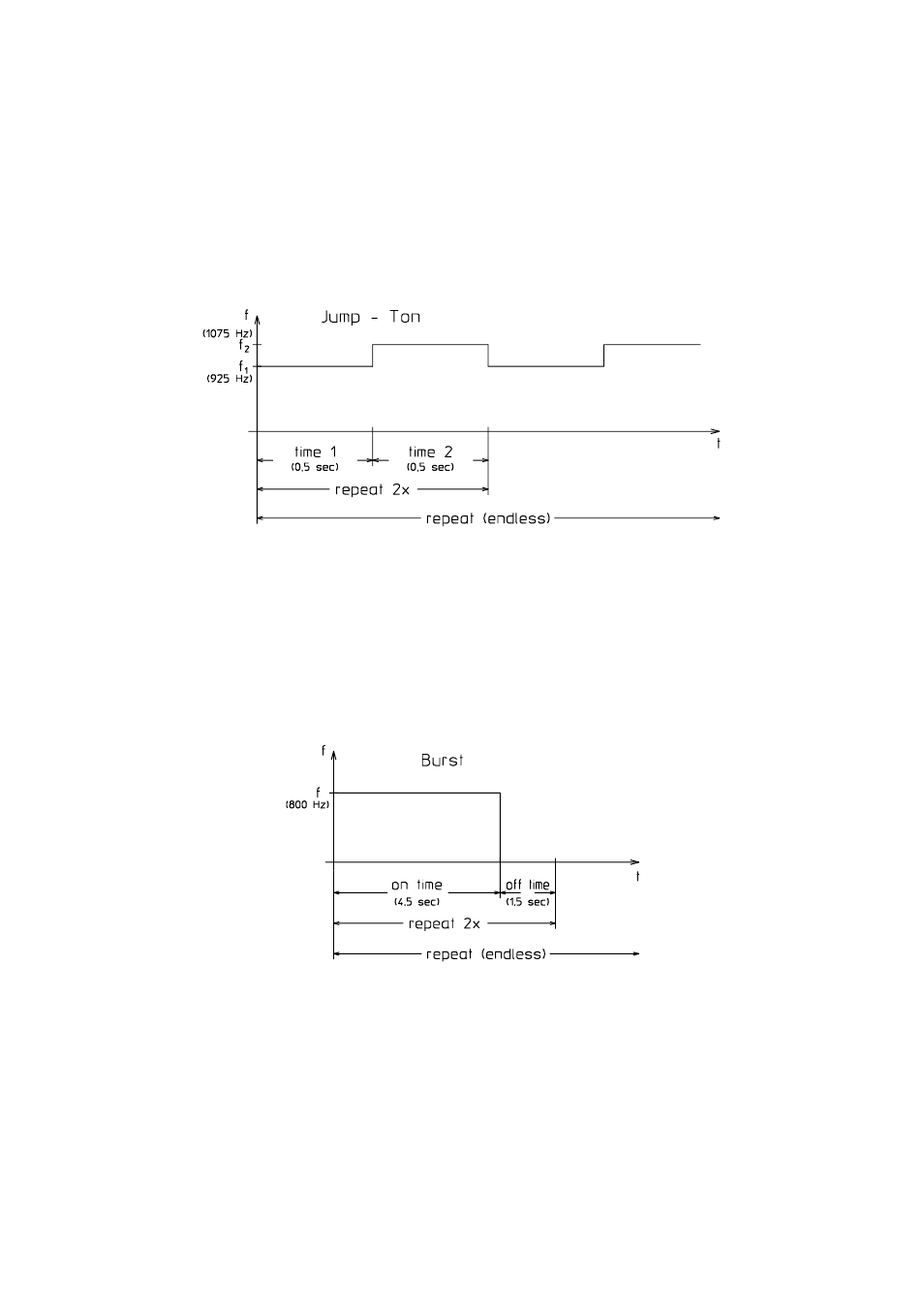

Type Jump sound
frequency1: pitch at sound-start in Hz (min 40Hz, max 9999Hz) jumps after time1 to frequency2
time1: duration for which freq1 is heard in sec., (min 0.01s, max 99.99s).
frequency2: pitch of the sound in Hz (min 40Hz, max 9999Hz) jumps after time2 to frequency1
time2: duration for which freq2 is heard in sec., (min 0.01s, max 99.99s).
ratio: duty-cycle of the square wave in percent, (min 1%, max 50%)
repeat: number of repetitions of one frequency (min 1x, max 9999x).
0000 corresponds to infinite repetition.
Type burst
Frequency: pitch of the sound in Hz (min 40Hz, max 9999Hz)
on-time: duration for which the sound is heard in sec., (min 00.01s, max 99.99s).
off-time: duration of the pause in sec., (min 00.01s, max 99.99s).
Ratio: duty-cycle of the square wave in percent, (min. 1%, max. 50%)
repeat: number of repetitions of the sound (min 1x, max 9999x).
0000 corresponds to infinite repetition.
Values in parenthesis ( ), example Post, A23
Values in parenthesis (), example ship2, A31
