Features and Functions
The GAI-Tronics Models 13382 WiFi and 13383
VoIP Addressable Amplified Speakers are
equipped with the following features:
 Wired or WiFi VoIP
 One-way broadcasting from VoIP network
 Weatherproof enclosure
 Power-over-Ethernet, 802.3af Compliant
(Model 13383 only)
 Wireless 802.11b, IEEE 802.11g Compliant
(Model 13382 only)
 A high-efficiency (>80%) Class D amplifier
 600-ohm audio output
 Two dry contact closure outputs
 SIP compatible (RFC3261)
 Real-time status reporting via TMA software
(purchased separately)
 Configurable via web page, serial link or
download
 Multicast capability, up to eight addresses
 Universal ac input power supply provided, 15 V dc
 Optional local volume control
 Provides up to 8 watts into an 8-ohm load (115 dB spl), measured at 1 meter on axis, with PoE power
input (or 15 V dc)
 Provides up to 30 watts into an 8-ohm load (118 dB spl), measured at 1 meter on axis, with 24 V dc
power input
System Requirements and Limitations
A 100 Base-T Ethernet with SIP Server is required for systems containing three or more VoIP
Addressable Amplified Speaker Assemblies. The operation of this equipment is limited by the
customer’s LAN media capabilities and the services available at each end point. The performance of the
VoIP Speaker Assembly is dependent on the provision of sufficient bandwidth and prioritization on the
network to give the quality of service required. In addition, the setup, installation, and software version
of key components such as switches and routers can have a significant effect on the operation of this
equipment. Improper connections or loose cables can also affect their operation.
The Addressable Amplified Assemblies require a local 15 V dc or 24 V dc power for operation. Each
unit is provided with a universal (120/240 V ac) power supply that provides a 15 V dc output. GAI-
Tronics Model 190-003PS Weatherproof Power Supply Kit is available (purchased separately) to provide
a 24 V dc output.

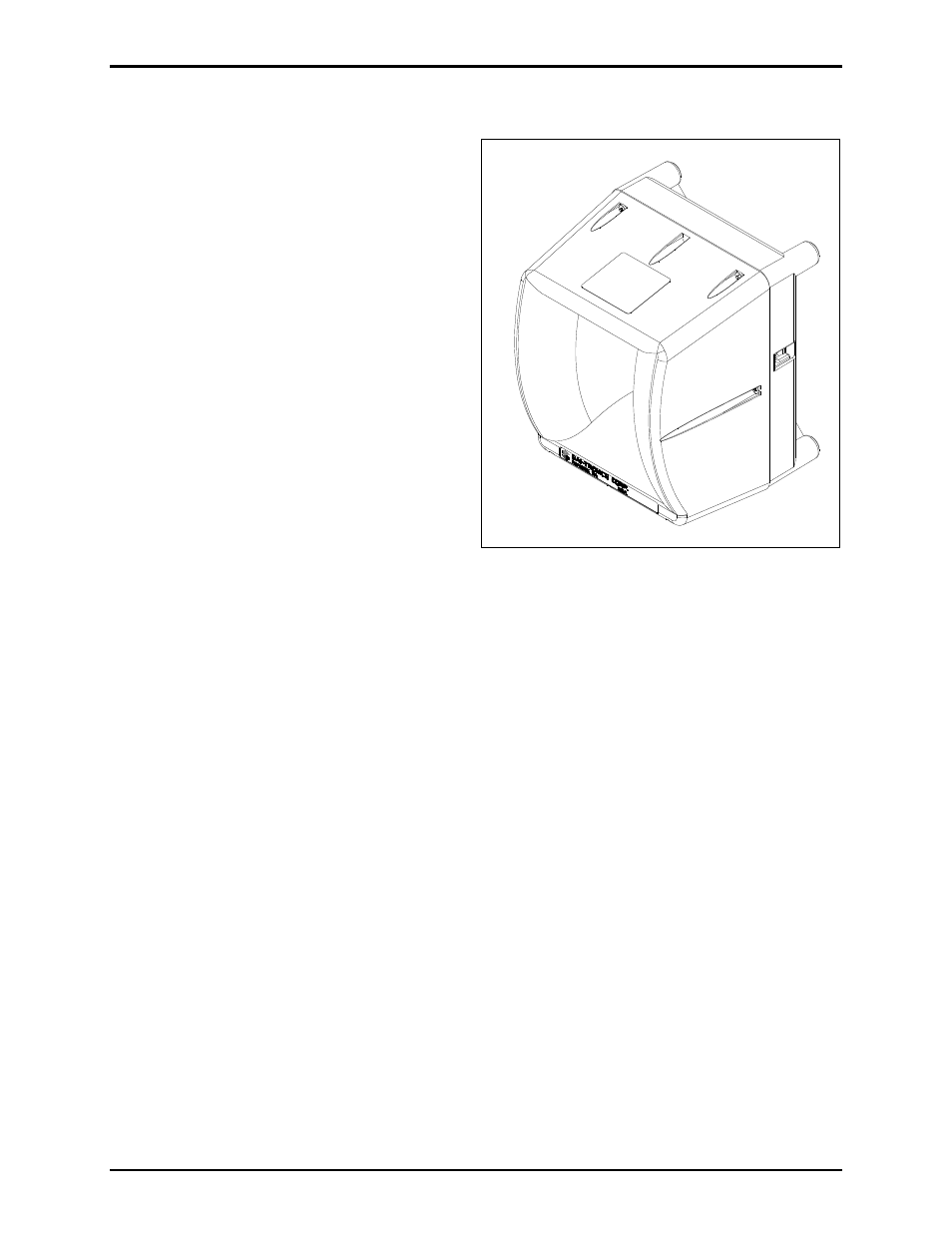

Figure 1. VoIP/WiFi Addressable Amplified
Speaker Assembly
