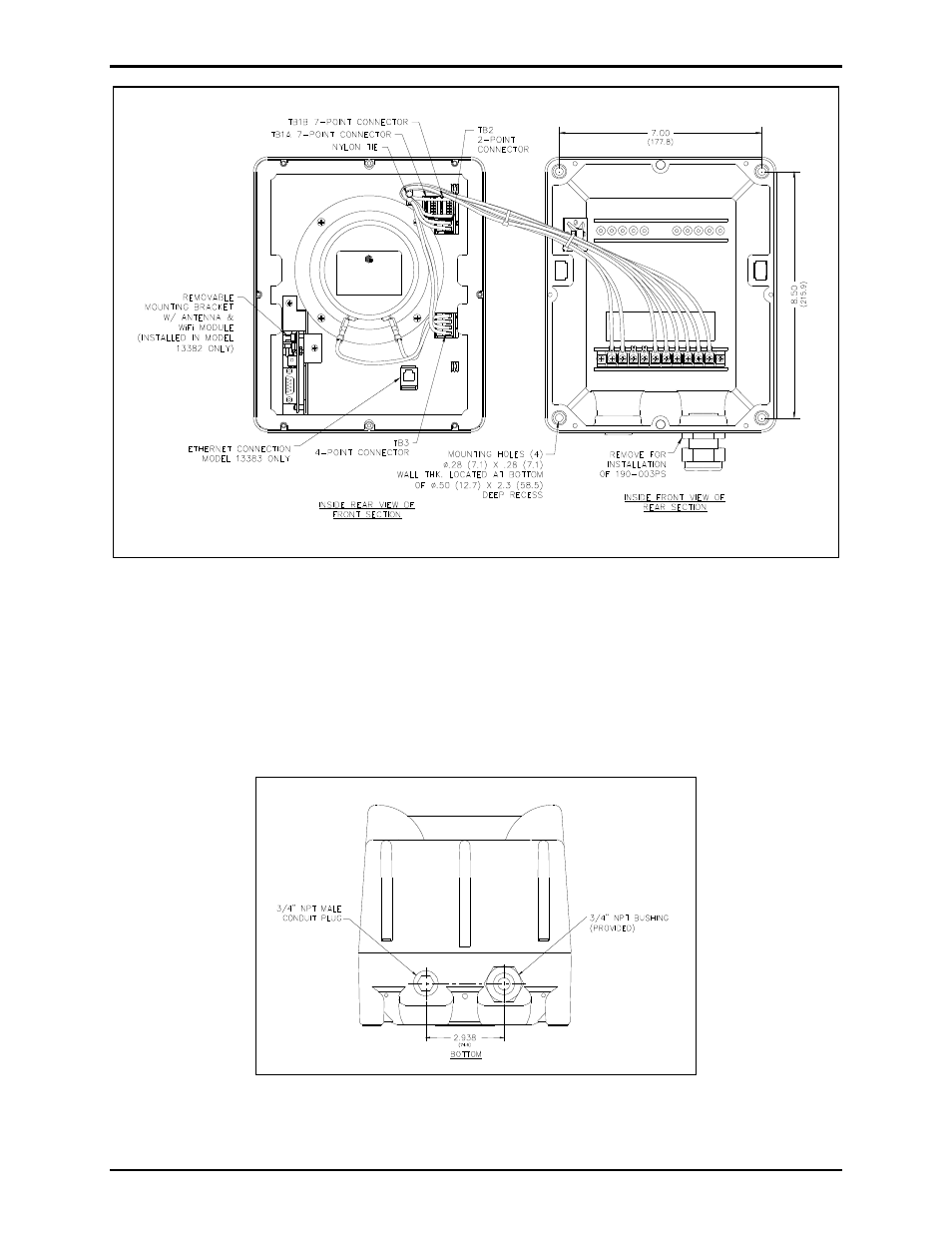

Figure 5. Mounting Detail
Cable Installation
Each of the speaker assemblies is designed for bottom cable entry, where two ¾-inch conduit entries are
located. Field wiring can enter the speaker housing using the installed ¾-inch NPT cable bushing
(bottom right), or with rigid or flexible conduit by removing the installed bushing. The ¾-inch male
conduit plug (bottom left) can be removed for additional conduit connections. Refer to Figure 6. When
conduit entries are closed and sealed, the speaker is completely rain-tight.
Figure 6. Bottom view of speaker assembly
Install the necessary cable for wiring the speaker.
