Description of Major Components
The Model 723-901 Remote Subset Amplifier’s major external and internal components are described
below.
External Components
User Level Adjustment: This assembly contains a User Level Adjustment that is accessible beneath the
nameplate on the front panel. See Figure 1. The User Level Adjustment controls the Minimum Speaker
Output Level, the Speaker Offset Level (dB above ambient), and the Volume Level Control (VLC).
Refer to the Maintenance section for the adjustment procedures.

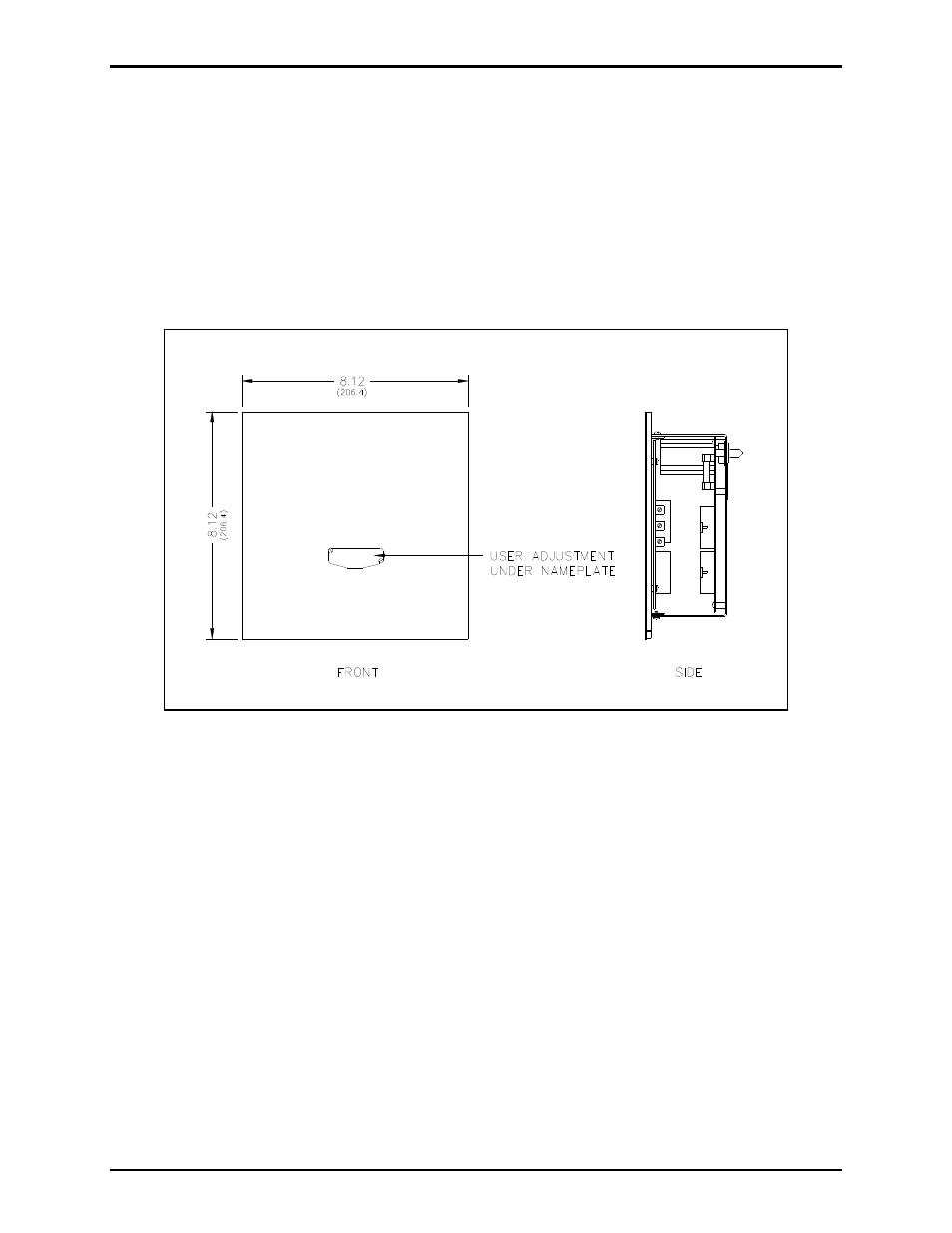

Figure 1. Remote Subset Amplifier - Front Outline and Side View
