Self-contained compact work top refrigerators – Delfield 402 User Manual
Page 2
MODEL
NUMBER
NUMBER
OF
SHELVES
SHELF
AREA
STORAGE
CAPACITY*
SHIP
WEIGHT
HORSE-
POWER
VOLTS/
HERTZ/
PHASE
AMPS
NEMA
PLUG
402
2
7.2 ft
0.67 m
5.7 ft
0.16 m
176 lbs
80 kg
115/60/1
5.0
5-15P
1/5
Self-contained compact work top refrigerators
402
AutoCAD
®
library reference numbers are shown below the model numbers.
DOOR CLEARANCE DETAIL
MODEL 402
24.75"
62.9 cm
STANDARD DOOR HINGING IS ON RIGHT
HINGING MAY BE REVERSED AT INSTALLATION
INSTALLATION NOTE:
Refrigeration system is designed so that
air will flow under the unit, through the
compressor area, and out the top rear
of the unit. Any restriction to this air flow
path will void the warranties.

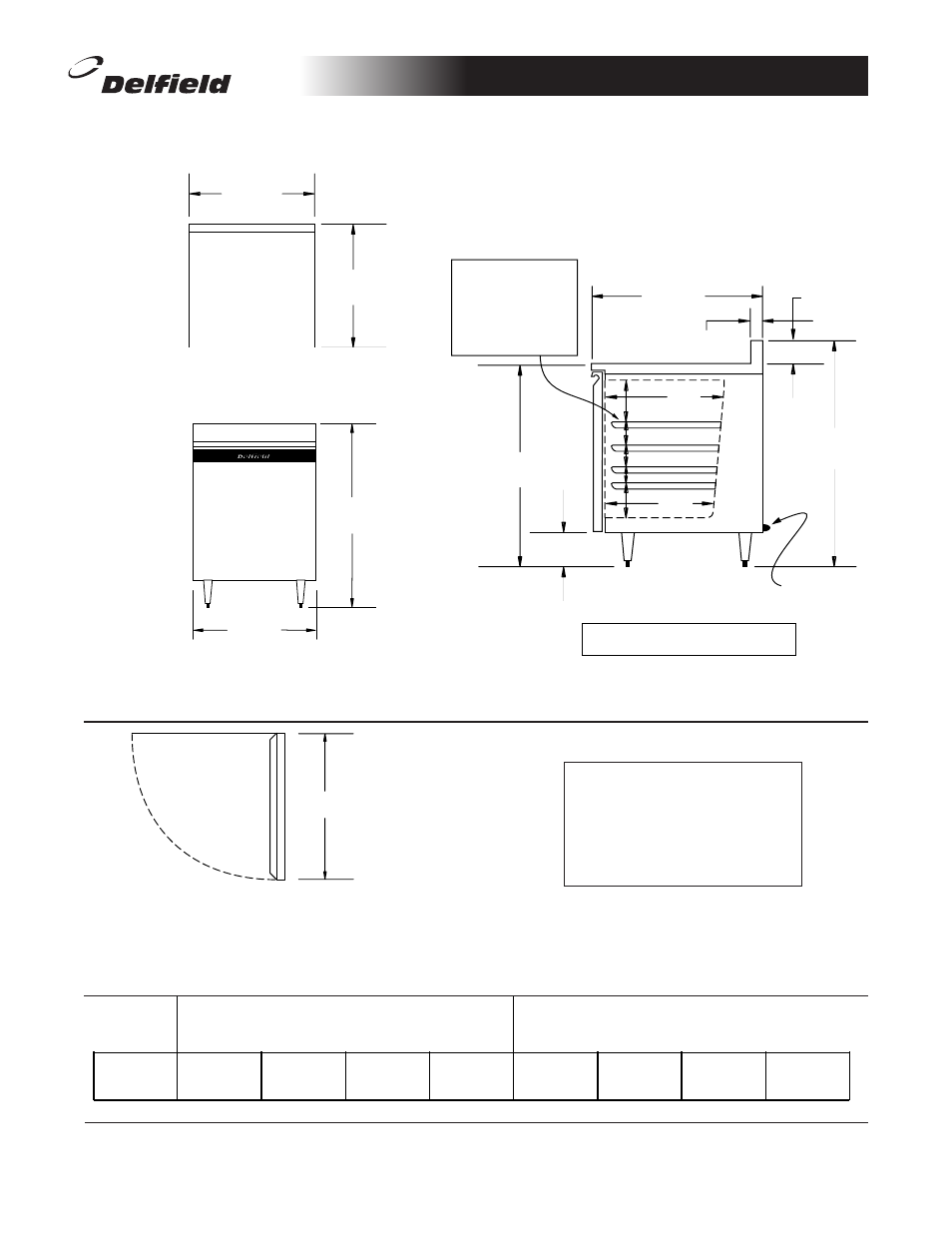

ELEVATION VIEW RIGHT END VIEW
MODEL 402 MODEL 402
27.25"
69.2 cm
28.50"
72.4 cm
PLAN VIEW
MODEL 402
39.50"
100.3 cm
4.00"
10.2 cm
28.50"
72.4 cm
2.00"
5.1 cm
35.50"
90.2 cm
6.00"
15.2 cm
19.50"
49.5 cm
17.00"
43.2 cm
BULLET FEET CAN
ADJUST UPWARDS ONLY,
UP TO+1.00"/2.5 cm
1.00"/2.5 cm
RUBBER
BUMPER
INTERIOR CLEAR DIMENSION,
LEFT TO RIGHT: 21.25"/54.0 cm
A
B
C
D
E
SHELF SUPPORT
SPACING
A = 7.50"/19.1 cm
B = 4.00"/10.2 cm
C = 3.75"/9.5 cm
D = 2.75"/7.0 cm
E = 6.00"/15.2 cm
REF’G
27.25"
69.2 cm
39.50"
100.3 cm
The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.
DS402 02/02
