User Instructions - Logix® 420 Series Digital Positioners FCD LGENIM0106-06 12/13
flowserve.com
9
5
MOUNTING AND INSTALLATION
5.1 Direct Mounting to Valtek GS and
FlowTop
Refer to Figure 2: Valtek GS and FlowTop Mounting.
1
Assemble the take-off pin to the take-off plate and
mount the take-off plate to the valve stem using the two
screws. See Table 10: FlowTop and GS Take-Off
Plate and Pin Configuration for proper plate and pin
orientation.
2 Place the actuator O-ring.
3 Ensure the 1/16 NPT plug for the control port (if
present) has been removed.
4 Place the positioner on the actuator, ensuring the take-
off pin is inside the follower arm slot. Adjust the
follower arm as needed.
NOTE: The feedback shaft has a clutch mechanism that
allows for over-rotation of the shaft for easy adjustments.
Just move the follower arm to the desired location.
5
Use the actuator screws to secure the positioner in
place.
6 Connect regulated air supply to appropriate port in
manifold. See section 6 TUBING.
7
Connect the power to the 4-20 mA terminals. See
section 7 ELECTRICAL CONNECTIONS.
8 Remove main cover and locate DIP switches and
QUICK-CAL/ACCEPT button.
9
Refer to sticker on main board cover and set DIP
switches accordingly. See section 8 STARTUP.
10
Press the QUICK-CAL/ACCEPT button for three to four
seconds or until the positioner begins to move. The
positioner will now perform a stroke calibration.
CAUTION: Performing a Stroke Calibration will cause full
movement of the valve in both directions.
11
If the calibration was successful the green LED will blink
GGGG or GGGY and the valve will be in control mode.
12 If calibration fails, as indicated by a RGGY blink code,
retry the calibration. If it still fails, the feedback values
were exceeded and the arm must be adjusted away
from the positioner’s limits. Rotate the feedback shaft
so that the full free travel of the feedback shaft is in the
range of the actuator movement. Optionally, continue
to attempt the calibration. Each calibration attempt
adjusts the acceptable limits and it should pass
eventually.
CAUTION: Remember to remove the air supply before
re-adjusting follower arm.
NOTE: If mounted properly, the follower arm should be
horizontal when the valve is at 50% stroke and should move
approximately ±30° from horizontal over the full stroke of the
valve.
NOTE: To virtually eliminate any non-linearity due to linkage
geometry, use the Linearization feature on the Custom
Characterization page of the DTM.
Actuator
Screws
Take-Off Plate
Take-Off
Pin
Take-Off Plate
Screws
Actuator O-
ring

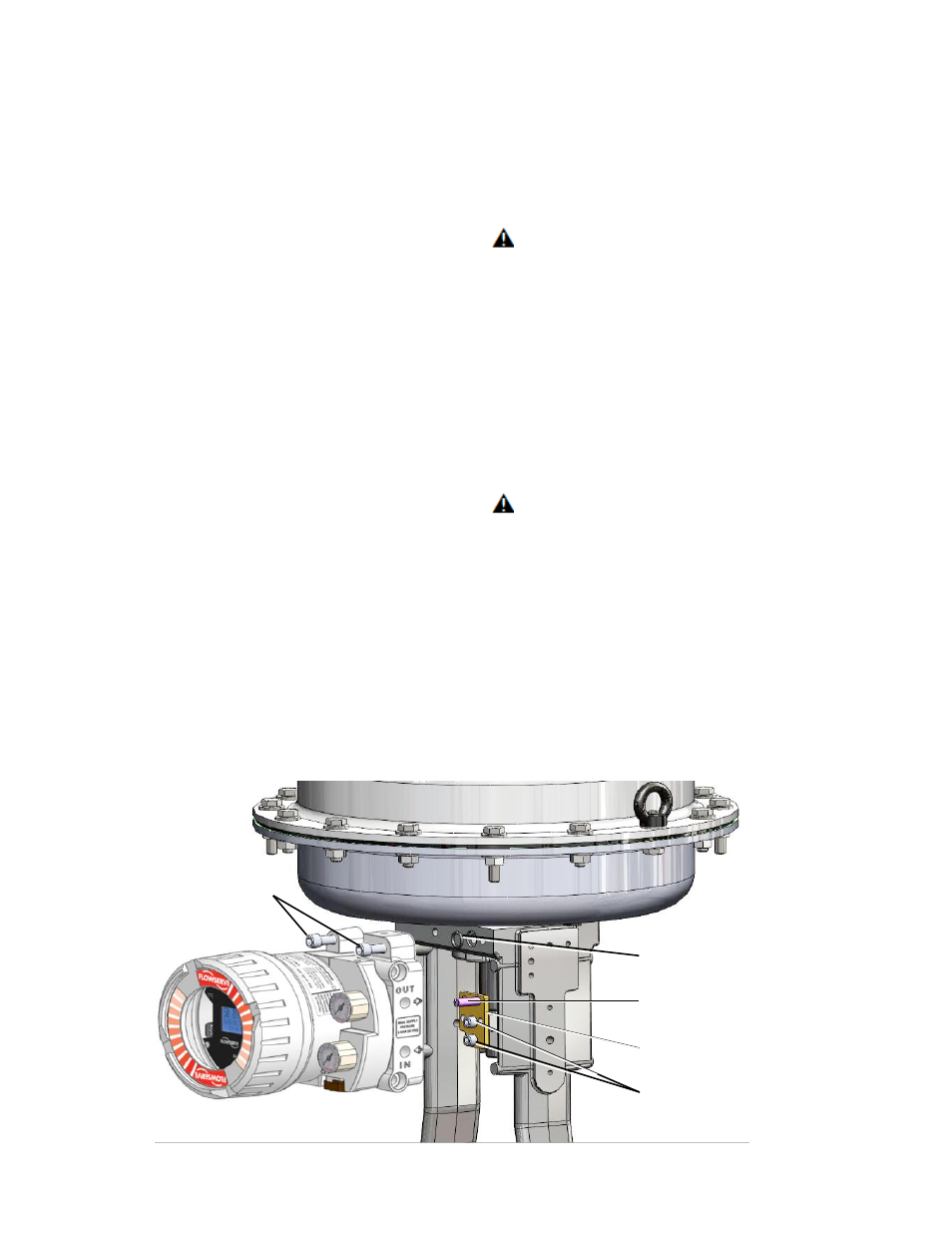

Figure 2: Valtek GS and FlowTop Mounting
