QSDF8204 Digital Video Recorder User Manual
7

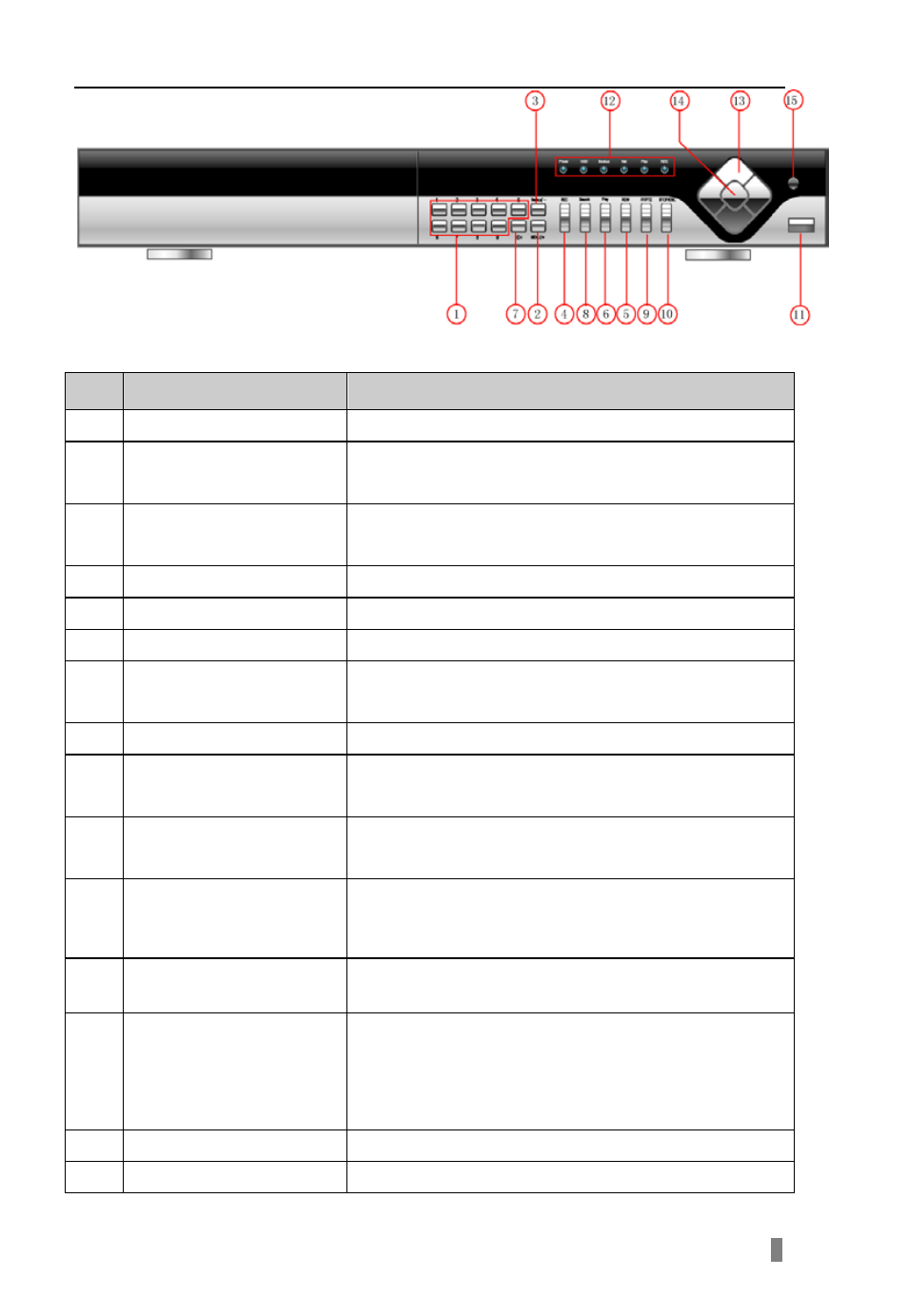

Fig2.1 Front Panel
Item Name Function
1 Digital buttons Input numbers or choose cameras
2 +/Menu button
1. Increase the value in setup
2. Enter menu in live mode
3 -/Backup
1. Decrease the value in setup
2. Enter backup mode in live mode
4 RECORD Record manually
5 REW Rewind
6 PLAY Enter playback interface
7 10+
Choose channel 10 and above
0-9, and double-click is 10.
8 SEARCH Enter search mode
9 FF/PTZ
1. Fast forward
2. Enter PTZ mode in live
10 STOP/ESC
1. Quit playback mode
2. Exit the current interface or status
11 USB port
To connect USB mouse for control or external
USB devices like USB flash drive or USB HDD
for backup or firmware update
12 Indicator lights
Working status lights for power, HDD, network,
etc
13
Direction/Multi-screen
button
1. Direction buttons. Move cursor in setup or
control PTZ cameras
2. Change screen display between single &
4 screen
14 Enter button To confirm the choice or setup
15 IR Receiver For remote control
