QSDF8204 Digital Video Recorder User Manual
11
CHAPTER 3 Basic Operation Guide
3.1 How to Start DVR
Notice
To start the DVR:
: Before powering on the unit, please make sure the power input matches the local
power voltage.
STEP1 Connect the DVR to AC adaptor and plug in.
STEP2 Turn on the DVR.
STEP3 Wait for the DVR to initialize.
After DVR is powered on, ‘STARTING……’ appears on the screen, which
indicates the DVR is initializing.
After ‘WELCOME’ is displayed, you enter into live display mode. You can
press the "Menu" button to enter Main Menu.
The symbols displayed on the screen are explained in the following table:
Symbol Meaning Symbol Meaning
LIVE Live picture mode REC Manual recording
A Sensor recording M Motion recording
DISK
Percentage of hard
drive used
V-LOSS Video loss

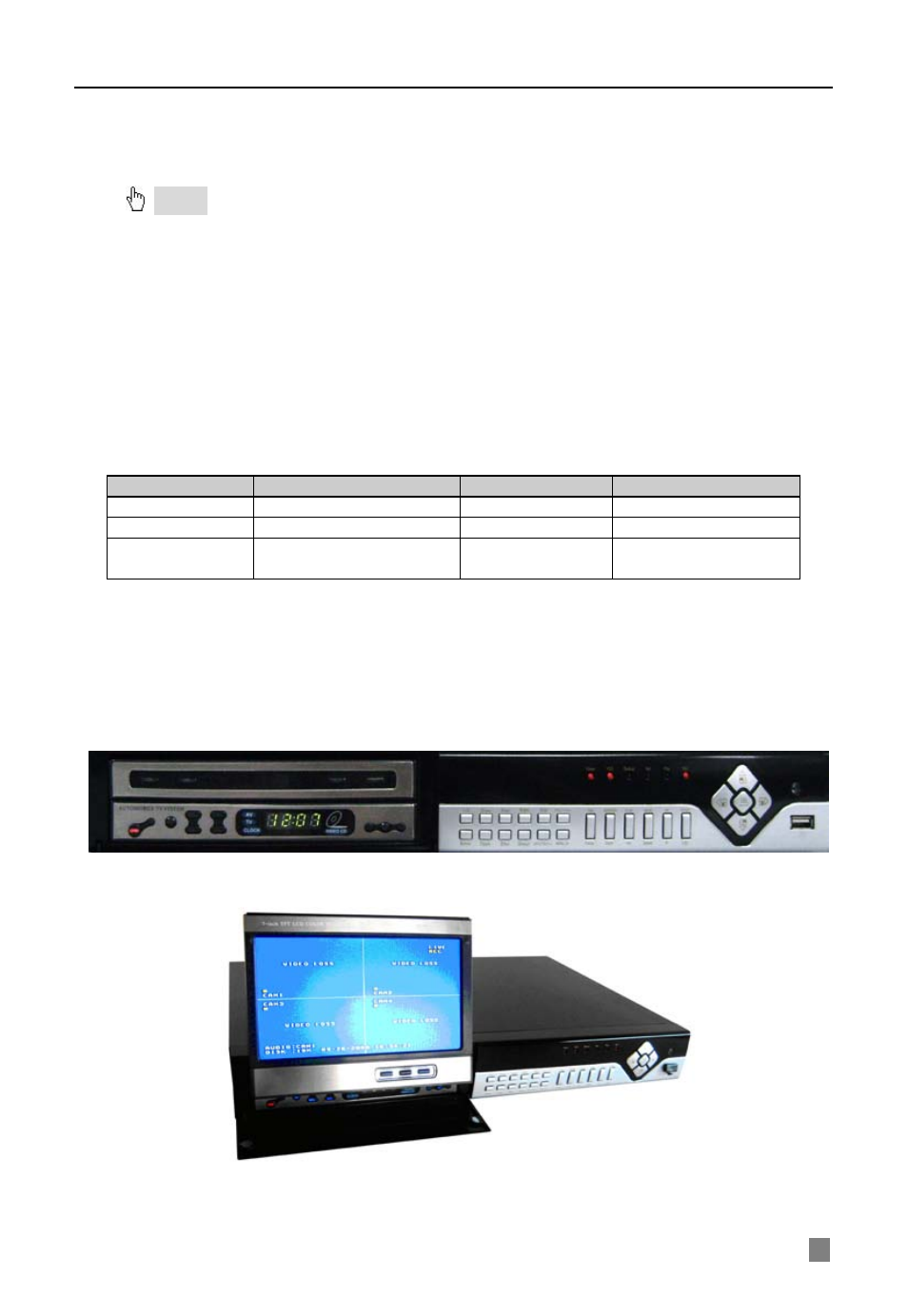

3.1.1 Basic operation of TFT LCD Monitor Screen
The basic operation of TFT LCD monitor screen is shown below:
Press OPEN button, the TFT LCD Monitor Screen will pop-up, press OPEN
again it will close.
TFT LCD Monitor Screen Open.
OPEN
