D-Link DIR-455 - Manual (Page 23)

19 D-Link DIR-455 User Manual
Section 3 - Configuration

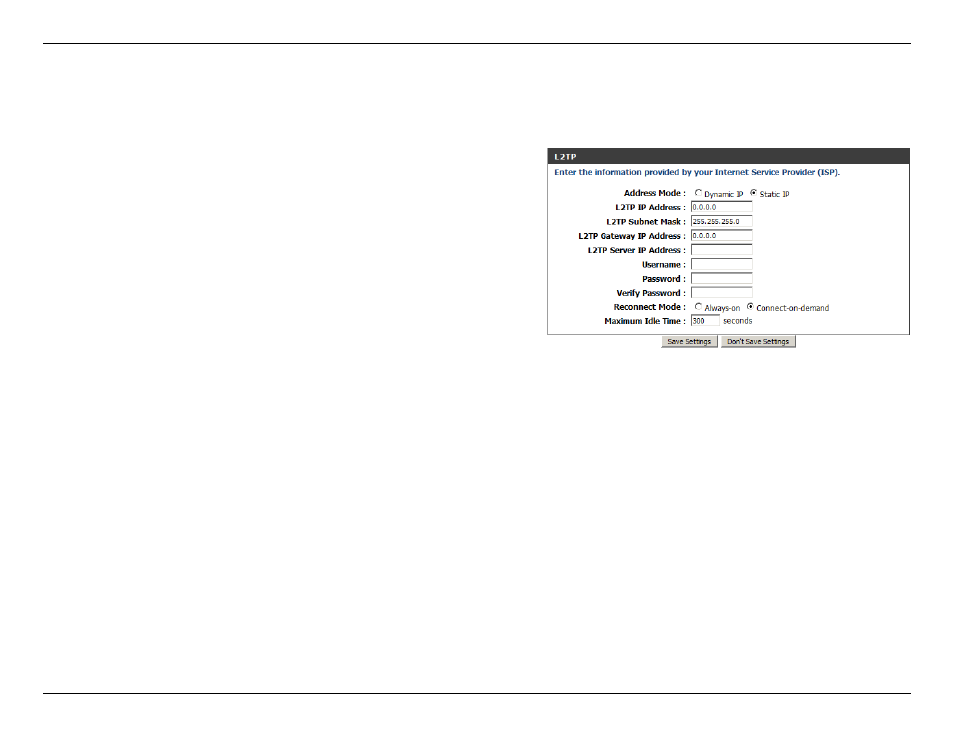

L2TP
Choose this Internet connection if your ISP provides you L2TP account.
Choose Static IP only if your ISP assigns you an IP
address. Otherwise, please choose Dynamic IP.
Enter the information provided by your ISP.
(Only applicable for Static IP L2TP.)
Enter the information provided by your ISP.
(Only applicable for Static IP L2TP.)
Enter the information provided by your ISP.
(Only applicable for Static IP L2TP.)
IP address of L2TP server.
User/account name that your ISP provides to you for L2TP dial-up.
Password that your ISP provides to you for L2TP dial-up.
Fill in with the same password in Password field.
Choose Always-on when you want to establish L2TP connection all the time. Choose Connect-on-demand the
device will establish L2TP connection when local users want to surf Internet, and disconnect if no traffic after
time period of Maximum Idle Time.
The time of no activity to disconnect your L2TP session. Set it to zero or choose Always-on to disable this
feature.
Click Save Settings to save your changes, or click Don’t Save Settings to discard your changes.
Address Mode:
L2TP IP Address:
L2TP Subnet Mask:
L2TP Gateway IP Address:
L2TP Server IP Address:
Username:
Password:
Verify Password:
Reconnect Mode:
Maximum Idle Time:
