16 DR ® VERTICAL/HORIZONTAL LOG SPLITTER
Take extra care when raising and lowering the beam as it is fairly heavy. Having a second person assist with raising or lowering the
beam is recommended to prevent injury. Be sure to keep hands away from any possible pinch points.
STEP 8: INSTALLING THE LOG TRAY TO THE LOG DISLODGER AND BEAM.
1. Lower the beam onto the tow bar (Figure 10).
2. Loosely install the log tray brackets to the beam with four bolts (13-1), eight flat washers (13-2) and four locknuts (13-3)
using a 18mm wrench on the bolts and a 19mm wrench on the lock nuts.
3. Install the log tray brackets to the log dislodge with four bolts (13-4), eight flat washers (13-5) and four locknuts (13-6)
using a 16mm wrench on the bolts and a 17mm wrench on the lock nuts.
4. Finish tightening the tray bracket to beam hardware.

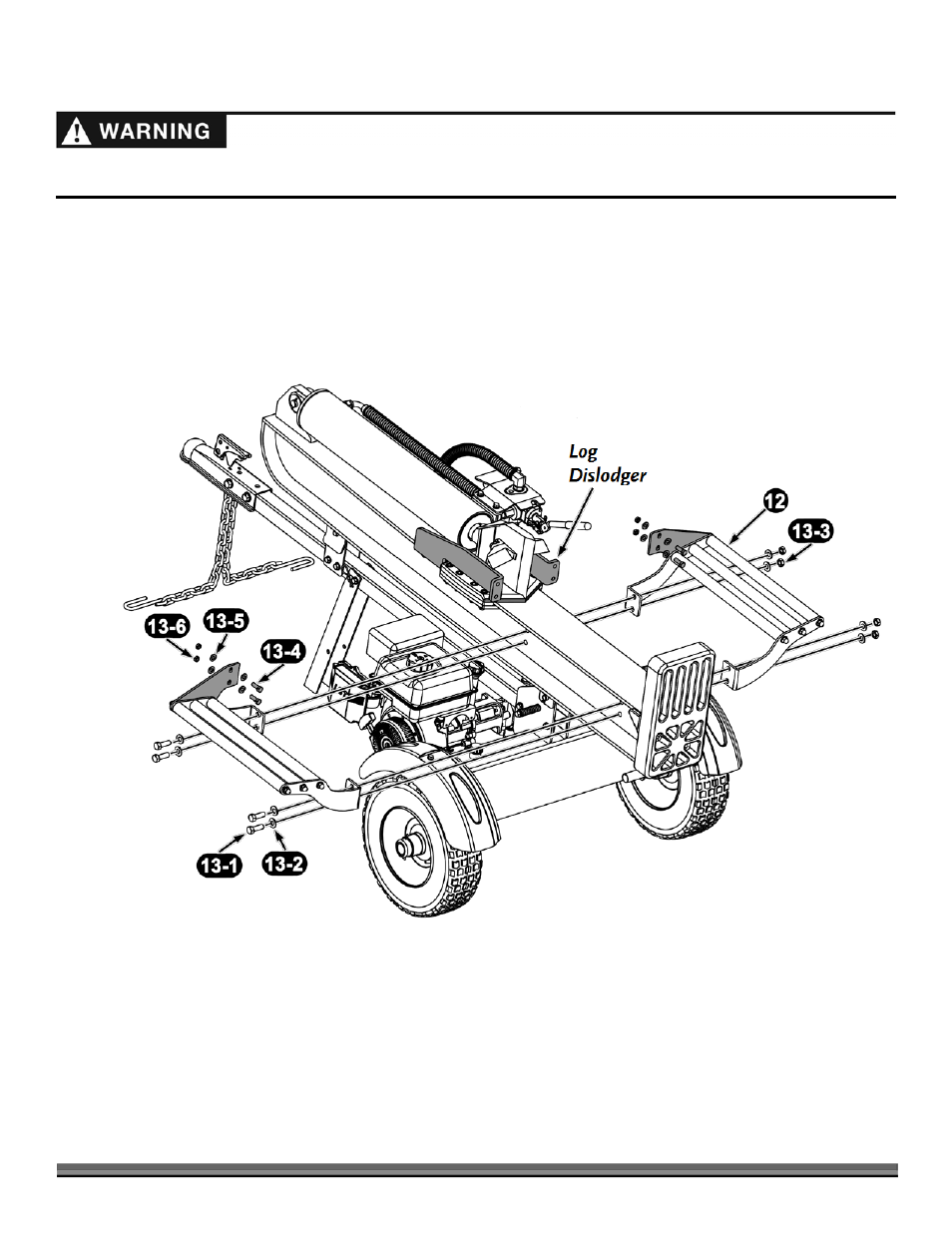

(Figure 10)
REF. NO. DECSRIPTION QTY.
12 ............... Log tray & Log dislodger assembly ................ 2
13 ............... Hardware Kit #6 (not shown) ....................... 1
Including:
13-1 ............. Hex head bolt / M12 x 45 ............................ 4
13-2 ............. Flat washer / M12 ...................................... 8
13-3 ............. Lock nut / M12 .......................................... 4
13-4 ............. Hex head bolt / M10 x 35 ............................ 4
13-5 ............. Flat washer / M10 ...................................... 8
13-6 ............. Lock nut / M10 .......................................... 4
