14 DR ® VERTICAL/HORIZONTAL LOG SPLITTER
Take extra care when lifting as the beam is very heavy. You should have a second person assist with raising the beam to keep it
steady. You could be injured by lifting or if the beam falls.
STEP 6: ASSEMBLING THE BEAM TO THE TANK BRACKETS.

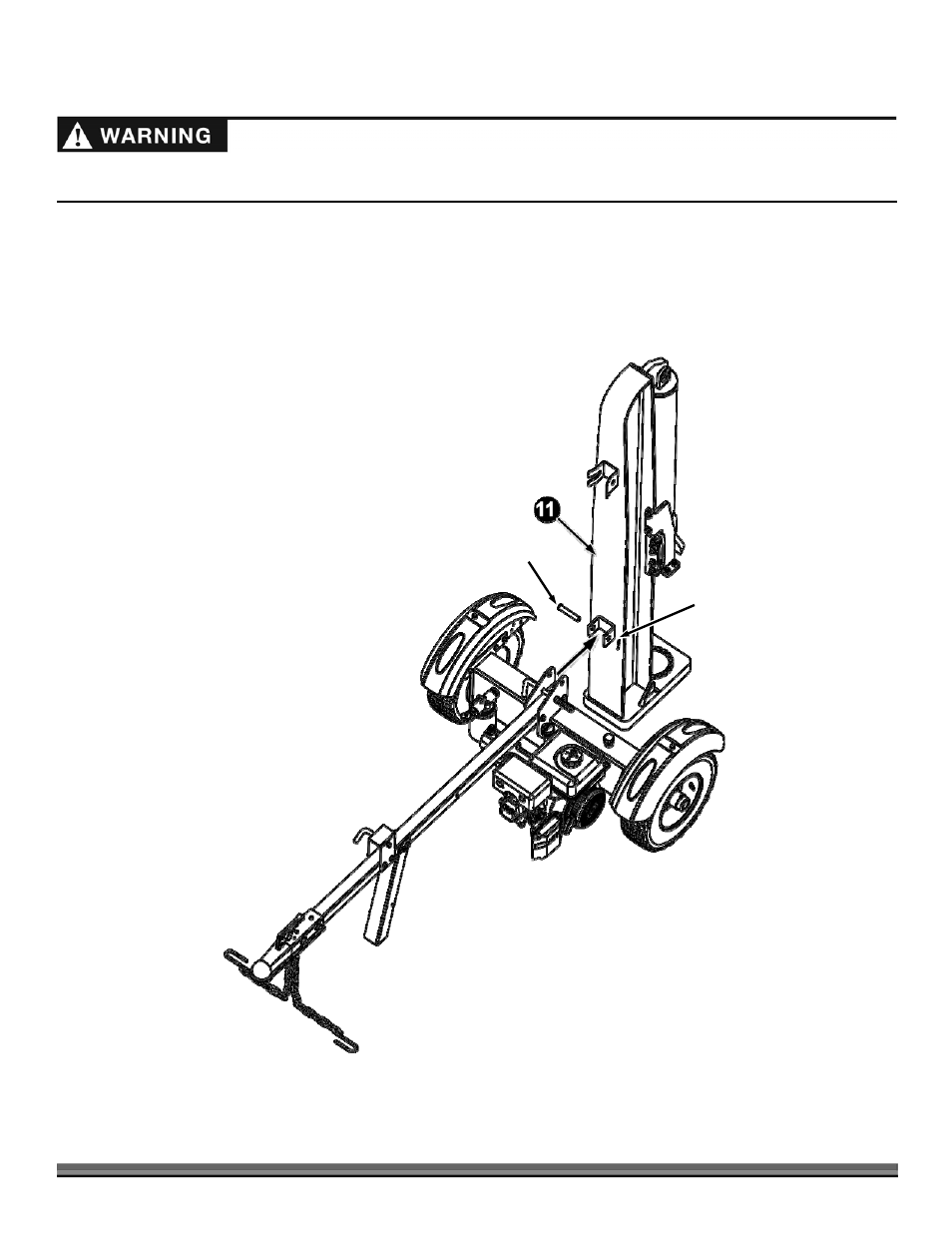

1. Stand the beam up on end (Figure 8). Two or more people may be needed for this step to ensure safety. Make sure that the
beam is stable and on a level surface.
2. Remove the clevis pin and spring pin from the tank brackets. Roll the tongue/ tank assembly into position between the two
tabs on the beam. Slide the clevis pin through the aligned holes and lock in place with the spring clip.
3. Leave the beam in the upright position for the next step.
Clevis Pin
Spring Clip
REF. NO. DECSRIPTION QTY.
11 ............... Beam Assembly .................. 1
(Figure 8)
