900Er Owner’s Manual
9

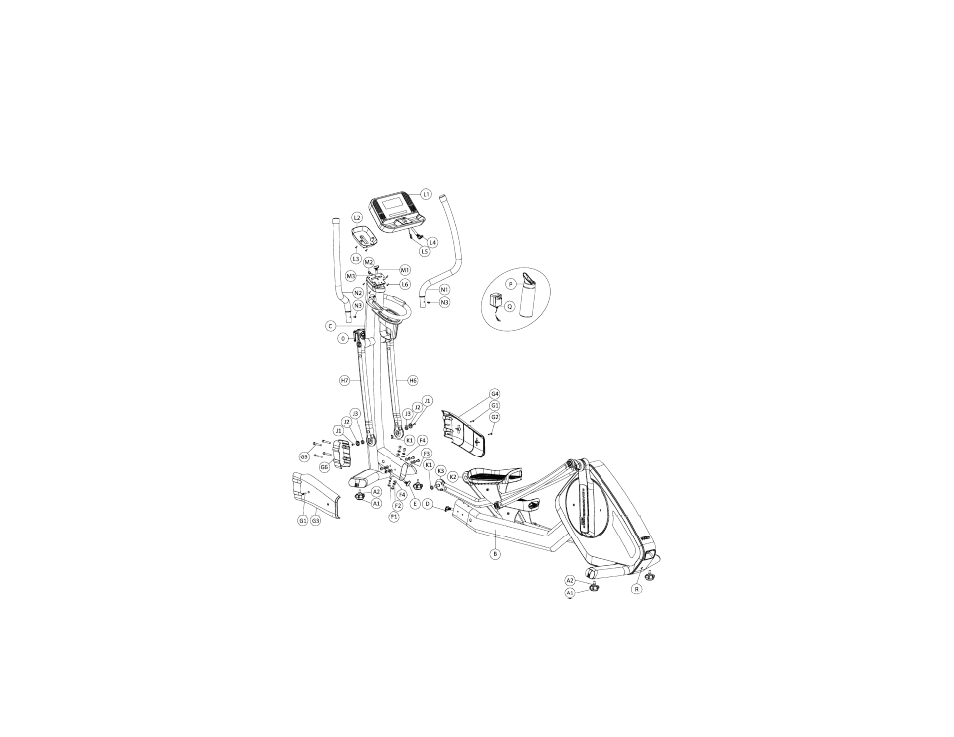

900Er ASSEMBLY
Part Description
A1 Stabilizer Foot
A2 Stabilizer Foot Lock Nut
B Rear Frame Assembly
C Console Mast Assembly
D Rear Wire Harness Connector
E Forward Wire Harness Connector – Lower
F1 Hex Bolt ‐ M8 x 1.25 x 16 mm (6 mm socket)
F2 Lock Washer – 8.0 x 12.9 x. 2.4T mm
F3 Flat Washer – 8.0 x 19.0 x 2.0 mm
F4 Curved Washer – 8.0 x 19.0 x 2.0 mm
G1 Hex Bolt – M5 x 0.8 x 20 mm
G2 Hex Bolt – M5 x 0.8 x 20 mm
G3 Lower Console Mast Cover – Left
G4 Lower Console Mast Cover – Right
G5 Hex Bolt – M8 x 1.25 x 55 mm
G6 Lower Console Mast Cover – Front
H1 Lower Handlebar Assembly – Left
H2 Lower Handlebar Assembly – Right
J1 Hex Bolt – M5 x 0.8 x 8 mm
J2 Pivot Cap – Large
J3 Hex Nut – 9/16 x 8T (20 mm flats)
K1 Spacer – 20 x 4.5T mm
K2 Step Arm – Right
K3 Step Arm – Left
L1 900 Series Console
L2 Console Hinge Cover
L3 Philips Screw
L4 Console Wire Harness Connector
L5 Console Heart Rate Wire Harness Connector
M1 Forward Wire Harness Connector ‐ Upper
M2 Heart Rate Wire Harness Connector
N1 Upper Handlebar – Right
N2 Upper Handlebar – Left
N3 Hex Bolt – M5 x 0.8 x 10 mm
O Adjustable Handlebar Quick Release Assembly
P Water Bottle
Q AC Adaptor – US Plug; 120V, 60 Hz, 9V, 1A
R Input Jack
