900Er Owner’s Manual
11

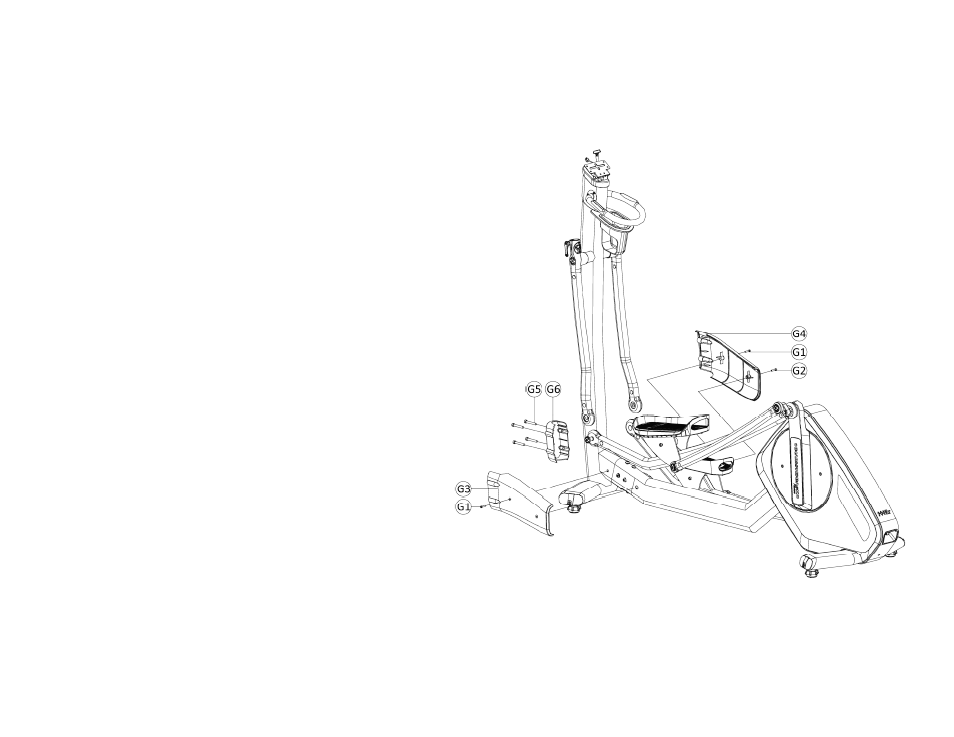

7. Parts G2, G3, G4, G5 and G6 will arrive pre‐
assembled on the unit. Remove the four (4)
hex bolts (G5) from the lower console mast
front cover (G6) and set aside. Remove hex
bolt G2 from the right side lower console
mast cover (G4) and set aside with the two
(2) G1 hex bolts.
8. Gather the left (G3) and right (G4) lower
console mast covers and bring together as a
clamshell over the console mast/main
frame union. Align covers with the
mounting holes in the main frame and
loosely thread the two (2) G1 hex bolts into
place. Loosely install hex bolt G2 through
the plastic cover G4 and into cover G3.
9. Install the lower console
mast front cover (G6) by
threading the four (4) hex
bolts (G5) through the face
and into parts G3 and G4.
Do not over‐tighten.
10. Tighten hex bolts G1 and
G2. Do not over‐tighten
and be aware of improper
alignment as the plastic
parts come together.
