Tilting Console
To ensure users of every stature can maintain a clear and highly visible view of the console, the 900Er
features a tilting console. Hinged at the bottom, adjust the display by gripping the top and rotating the
entire console fore and aft until the desired viewing angle is achieved.
Adjustable Width Handlebars
The adjustable‐width handlebars are designed to
accommodate an individual’s body mechanics. Rather
than attempting to adjust the user’s natural motion to
one that is fixed and inflexible, the 900Er offers a
customized fit. The three handlebar positions allow the
width to be adjusted with a range of 9.5” (24.1 cm) and
an adjustable reach with 7.5” (19.0 cm) of fore‐aft adjustment.
To adjust the bars, open the red quick‐release levers on the left and right pivots. Select the desired
position and reset the quick release lever. The pressure required to lock the lever should be sufficient to
remove any movement of the handlebar. Adjustment of the lever is similar to a nut and bolt. Hold the
lever in the open position and rotate the nut on the opposite end clockwise to tighten and counter‐
clockwise to loosen. While holding the handlebar in the desire position, close the lever. The amount of
pressure required to properly lock the lever should leave an impression in the palm of the user’s hand.
Note: Always ensure the adjustable handlebars are firmly fixed prior to any workout session as
injury can occur.

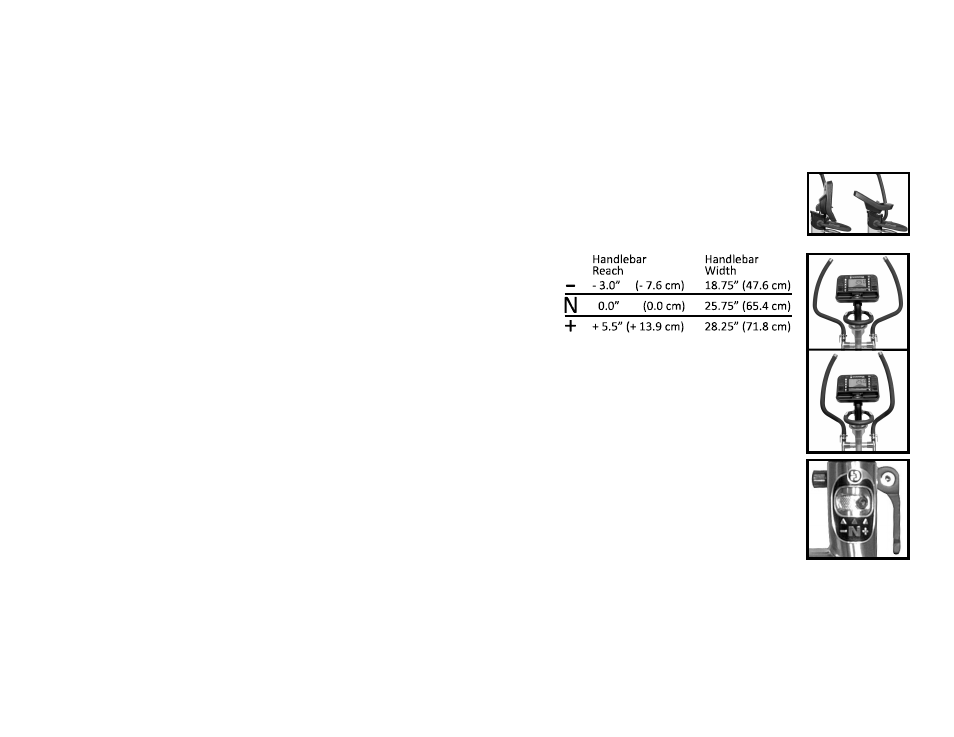

Adjust the second handlebar. The positioning indicator should display an alignment that is identical for
both bars. “+” represents the widest position while “‐“ would indicate the narrowest position. “N”
represents the neutral or middle position.
