900Er Owner’s Manual
13

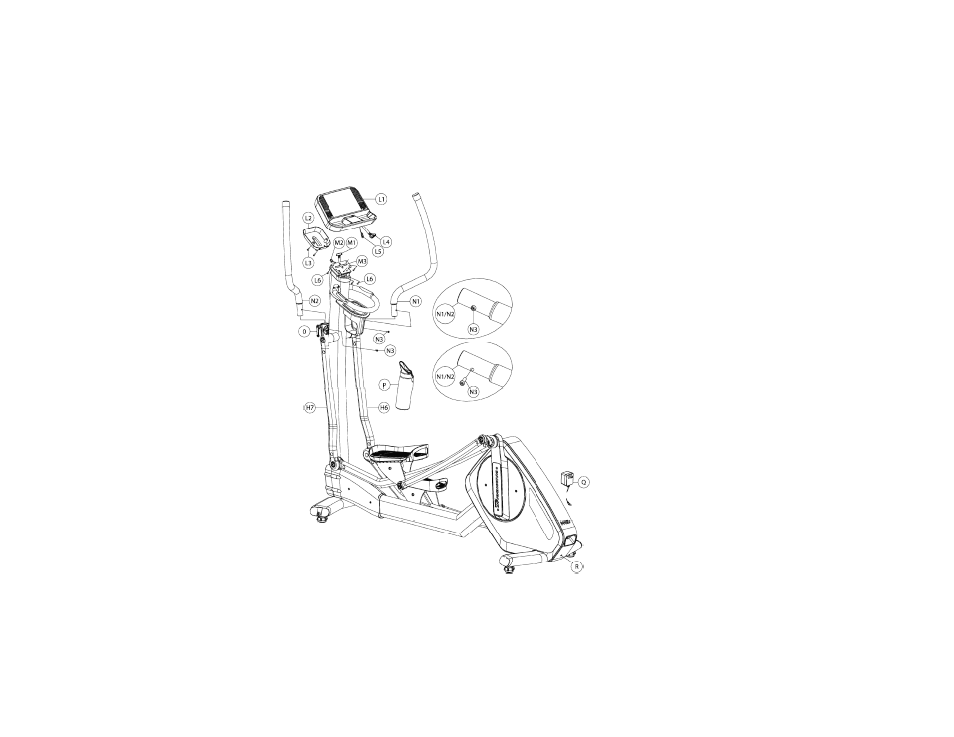

17. Remove the two (2) Philips screws (L3) and the console hinge cover (L2) from
the back of the console (L1).
18. Remove the four (4) Philips console mounting screws (L6) from backside of the
console (L1) and set aside.
19. While supporting the console (L1), join connectors L4 with M1 and L5 with M2.
20. Reinstall the four (4) Philips machine screws (L6) through the
underside of the tilting console hinge plate (M3) and into the
correct holes in the backside of the console L1.
21. Align the hinge cover (L2) with the appropriate holes in the back of
the console. Reinstall the two (2) Philips wood screws (L3).
22. Upper handlebars N1 and N2 are packaged with red hex bolts N3
installed. Remove bolts N3 from both handlebars and set aside.
23. Open the red quick release levers (O) on the lower handlebars (H6 &
H7) and slide the left (N2) and right (N1) upper handlebars into the
proper receivers.
24. Rotate the handlebars N2 and N1 until threaded hole is visible.
Reinstall the red hex screws into each side.
25. Set the handlebars to the desired position and close the
quick release levers (O). Ensure the handlebars are
firmly fixed.
26. Place the water bottle (P) into the holder.
27. Plug the power adapter (Q) into a 120 volt outlet. Plug
the other end into the input jack (R).
28. Check the stability of the unit. If required, adjust the
leveling feet to eliminate any rocking of the unit while in
use. Lock the feet in place by tightening the nut upward
(counter‐clockwise) against the frame.
